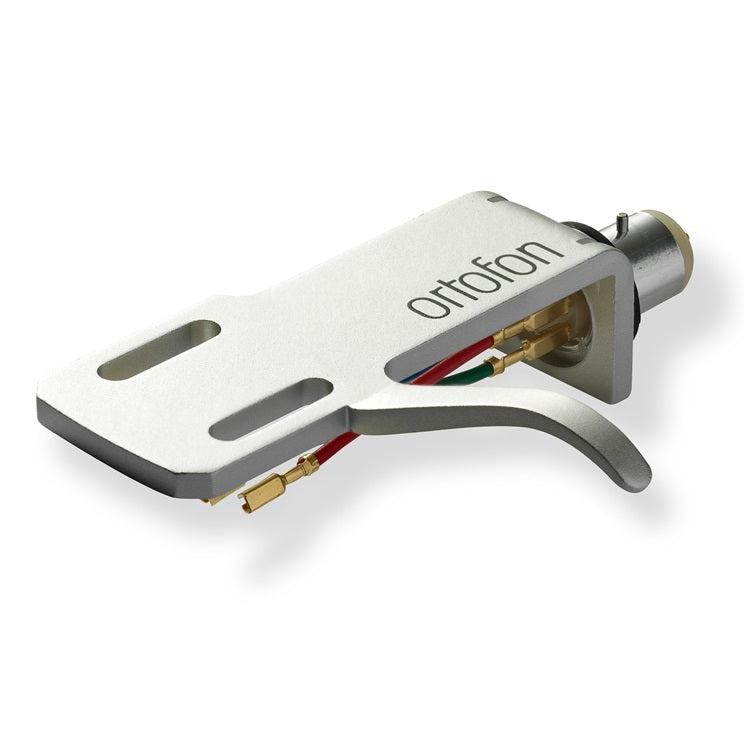

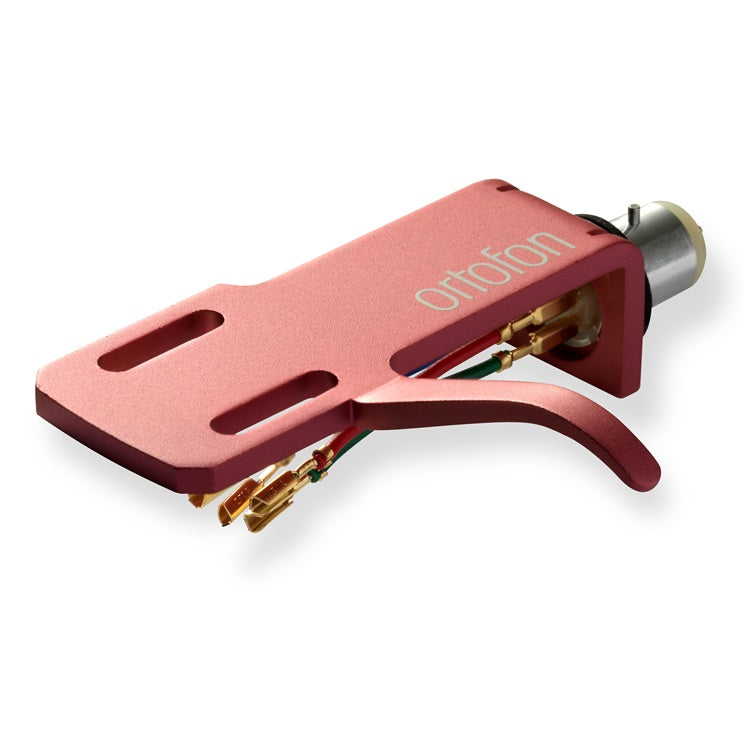

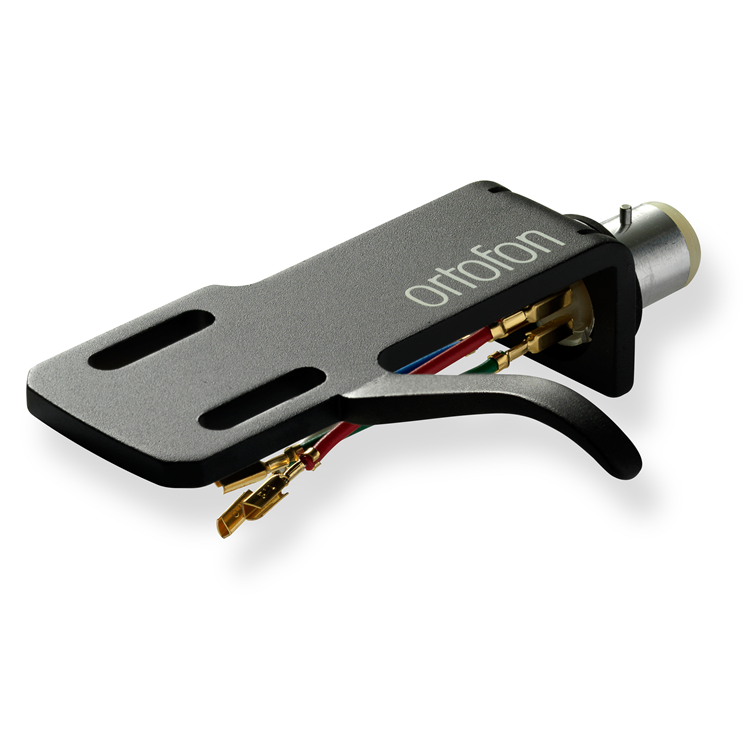

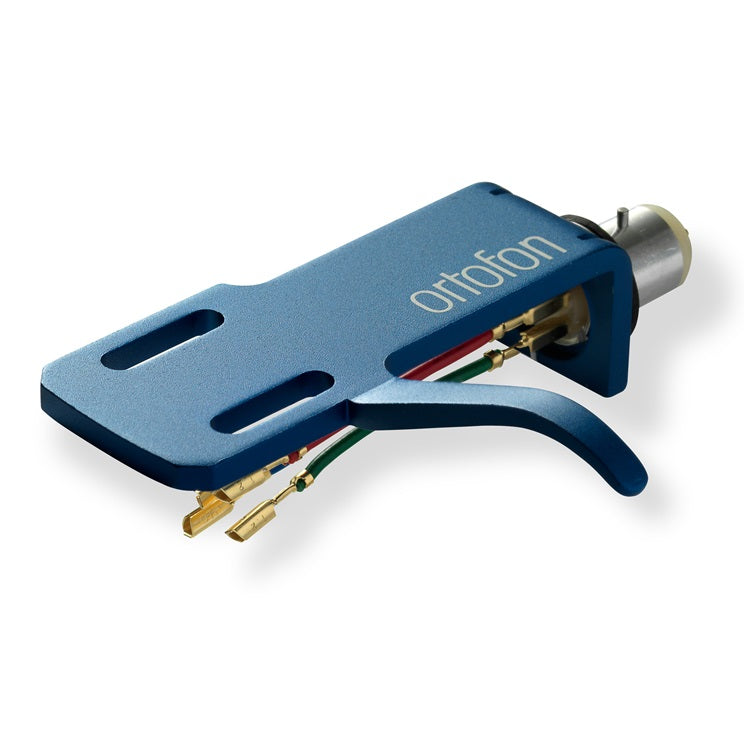

The SH-4 comes with lead wires for easy and convenient connection
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for the right channel respectively hot and the ground terminal. White and blue for left channel respectively hot and ground terminal. The green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.
We recommend connecting lead wires to the cartridge and headshell before mounting the cartridge on the headshell.
Ortofon SH-4 headshell PINs and Ortofon cartridges' terminal PINs diameter is 1.2 mm. Leadwires supplied fit all right on the cartridges' terminal PINs.
Dimensions and weight:
• Weight: 9.4g
• Shell length: 51.5mm
• Finger Length: 27mm
