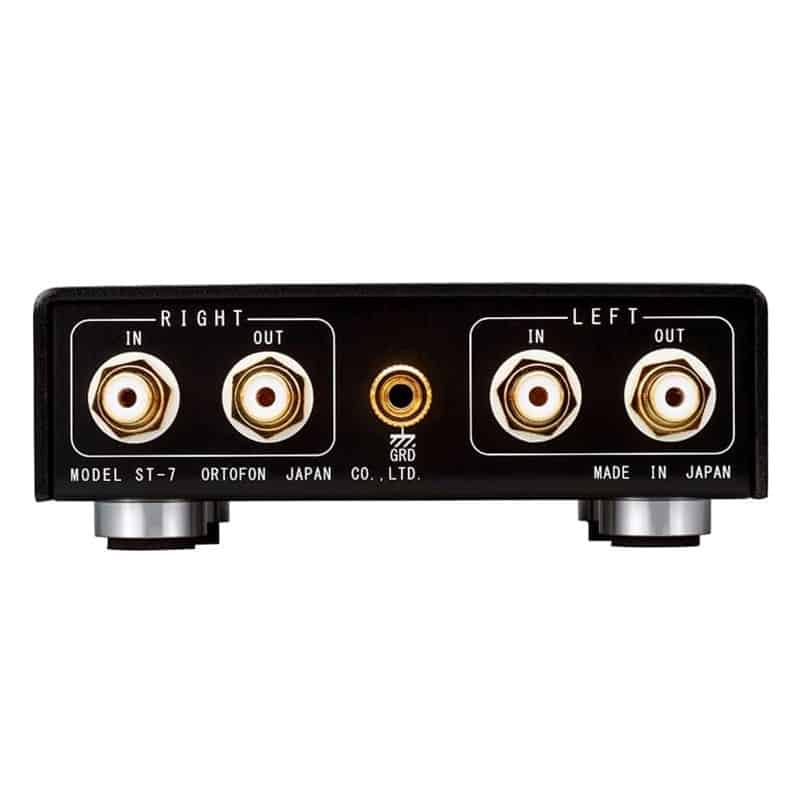

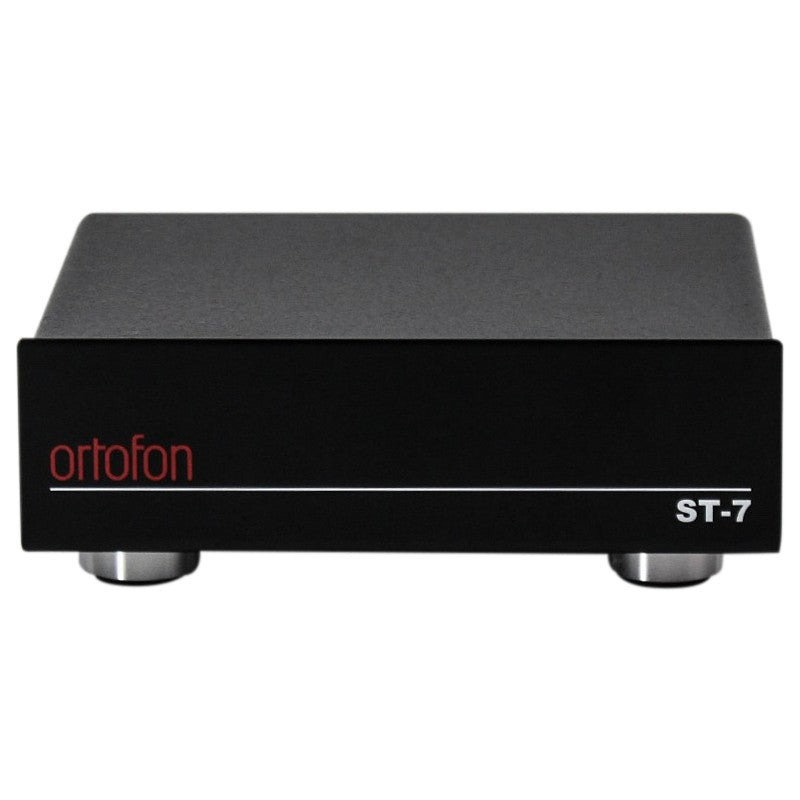

Ortofon ST-7 MC Step-up Transformer (Each)

Gallery
Description

Description

Compact and stylish, the ST-7 has a solid housing supported by four rubber feet, which helps to reduce unwanted vibrations in the unit.

High-quality internal wires together with high-quality gold plated terminals provide the optimum signal transmission. The sandwich winding structure, used in the ST-7, significantly improves the high-frequency response and provides a very clear and open sound over the whole frequency range.

Additionally, the dual-mono design, including the individual shielding of the two channels, improves the imaging of the transformer and reduces the influence of environmental noise.

The ST-7 transformer will be a perfect match for, among other MC cartridges, the MC Quintet Series, the SPU Classic models, and SPU #1 models.

SPECIFICATIONS

Frequency response: 15-45 kHz (+0 dB -2,5 dB)
Gain: 24 dB at 1 kHz
Recommended cartridge impedance: 2 Ω - 60 Ω
Recommended load: 47 kΩ // 200 pF
Dimensions: 122 mm(W) × 43,5 mm(H) × 102 mm(D)
Weight: 790 g

ORTOFON ST-7 TRANSFORMER

Ortofon ST-7 MC Step-up Transformer (Each)

R 18,950.00

ST-7 – a versatile MC transformer

Compact and stylish
Sandwich winding structure
Permalloy shielding housing for the left and right channels separately

Select quantity

E-CREDIT, NOW AVAILABLE
E-Credit finance on orders with a minimum value of R50 000. Learn More.

Description

Compact and stylish, the ST-7 has a solid housing supported by four rubber feet, which helps to reduce unwanted vibrations in the unit.

High-quality internal wires together with high-quality gold plated terminals provide the optimum signal transmission. The sandwich winding structure, used in the ST-7, significantly improves the high-frequency response and provides a very clear and open sound over the whole frequency range.

Additionally, the dual-mono design, including the individual shielding of the two channels, improves the imaging of the transformer and reduces the influence of environmental noise.

The ST-7 transformer will be a perfect match for, among other MC cartridges, the MC Quintet Series, the SPU Classic models, and SPU #1 models.

SPECIFICATIONS

Frequency response: 15-45 kHz (+0 dB -2,5 dB)
Gain: 24 dB at 1 kHz
Recommended cartridge impedance: 2 Ω - 60 Ω
Recommended load: 47 kΩ // 200 pF
Dimensions: 122 mm(W) × 43,5 mm(H) × 102 mm(D)
Weight: 790 g
