Description

2M Red features:
- an improved engine, which provides an increased output of 5.5mV and an optimized sound reproduction and a high level of sonic accuracy
- a tipped Elliptical diamond and split pole pins with a copper wire
- 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
Channel balance at 1 kHz - 1,5 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-22.000 Hz
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 æm
Compliance, dynamic, lateral - 20 æm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 æm
Tracking force range - 1,6-2,0g 16-20 mN
Tracking force, recommended - 1,8 g 18 mN
Tracking angle - 20ø
Internal impedance, DC resistance - 1,3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Red
Cartridge weight - 7,2 g
2M PnP MkII cartridge with integrated headshell weight - 20 g
2M PnP MkII cartridge with integrated headshell length - 52 mm
Replacement stylus unit - 2M Red interchangeable with 2M Blue and 2M Silver

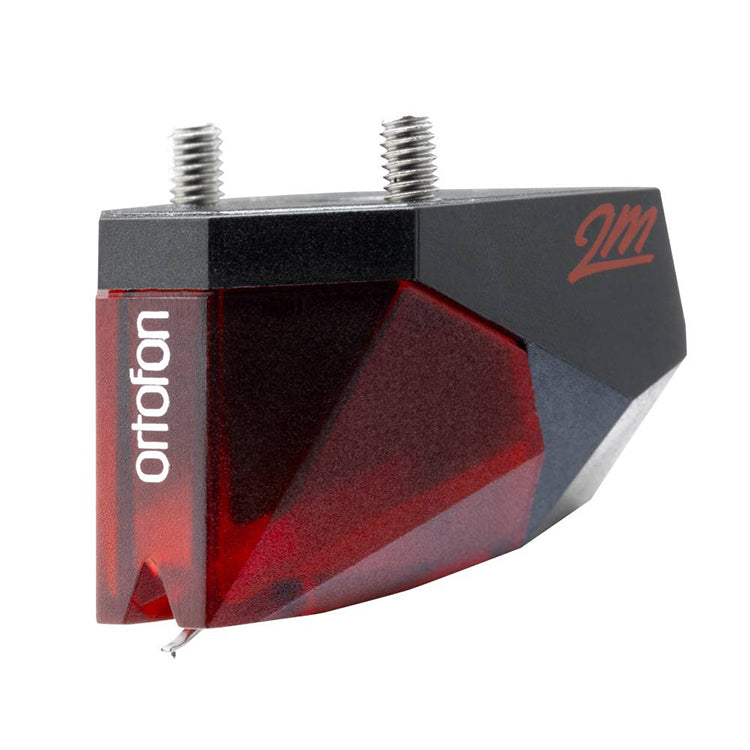

The 2M Red Verso model is an alternative product for bottom mount tonearms.

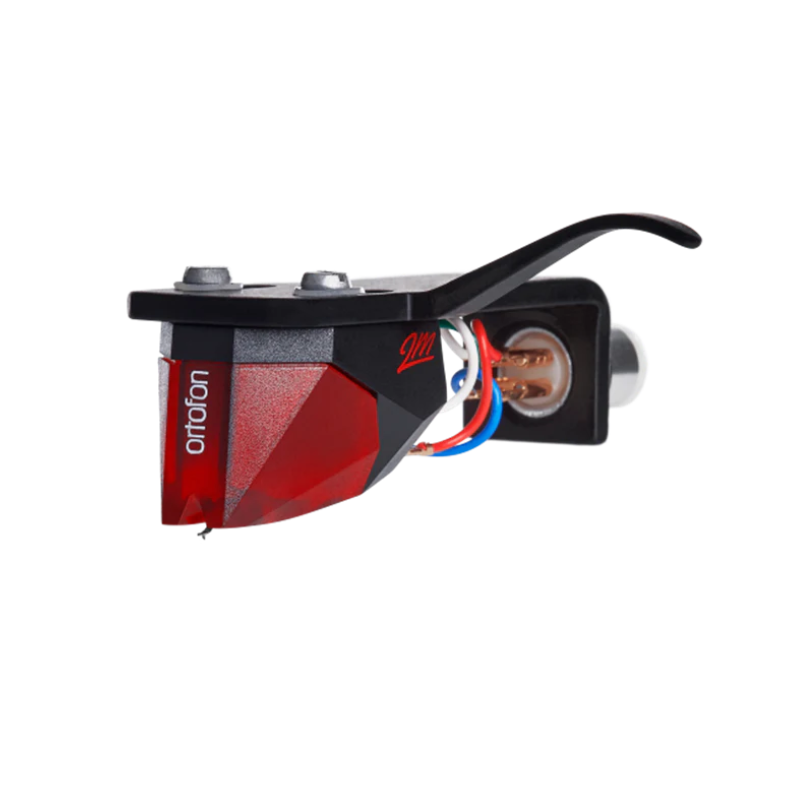

Exclusive Plug-and-Play MkII solution
The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!

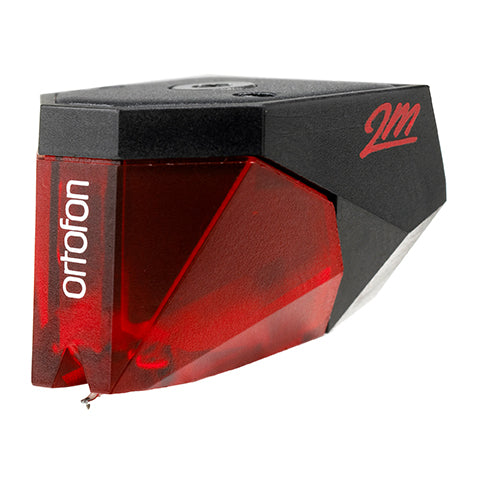

ORTOFON 2M RED MMC - STANDARD

Ortofon 2M Red Moving Magnet Cartridge (Each)

Regular price R 3,310.00
  • Standard
  • Plug n Play
  • Verso

E-CREDIT, NOW AVAILABLE
E-Credit finance on orders with a minimum value of R50 000. Learn More.

Merchant West Epiphany Finance
Description

2M Red features:
- an improved engine, which provides an increased output of 5.5mV and an optimized sound reproduction and a high level of sonic accuracy
- a tipped Elliptical diamond and split pole pins with a copper wire
- 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
Channel balance at 1 kHz - 1,5 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-22.000 Hz
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 æm
Compliance, dynamic, lateral - 20 æm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 æm
Tracking force range - 1,6-2,0g 16-20 mN
Tracking force, recommended - 1,8 g 18 mN
Tracking angle - 20ø
Internal impedance, DC resistance - 1,3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Red
Cartridge weight - 7,2 g
2M PnP MkII cartridge with integrated headshell weight - 20 g
2M PnP MkII cartridge with integrated headshell length - 52 mm
Replacement stylus unit - 2M Red interchangeable with 2M Blue and 2M Silver
The 2M Red Verso model is an alternative product for bottom mount tonearms.

Exclusive Plug-and-Play MkII solution
The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!
