Description

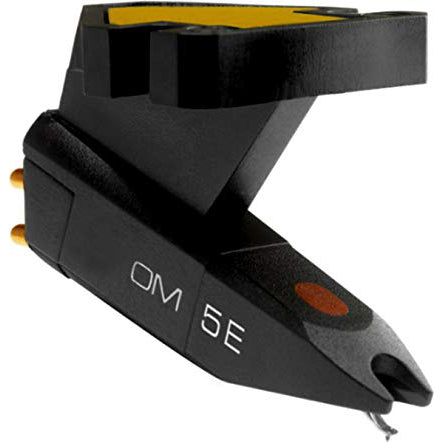

The OM 5E is a magnetic cartridge MM with an elliptical shaped stylus that provides balanced and distortion-free playback for general purpose applications.
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM?s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
If your tonearm is an standard tonearm, just leave the weight-plate.
If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.
Output voltage at 1000 Hz, 5cm/sec. - 4 mV
Channel balance at 1 kHz - 2 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-25.000 Hz
Frequency response - 20-20.000 Hz ñ 2 dB
Tracking ability at 315Hz at recommended tracking force * - 65 æm
Compliance, dynamic, lateral - 20 æm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 æm
* Typical value
Tracking force range - 1,5-2,0 g 15-20 mN
Tracking force, recommended - 1,75 g 17,5 mN
Tracking angle - 20ø
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Cartridge colour, body/stylus - Black/Black
Cartridge weight - 5 g
Replacement stylus unit - Stylus 5 E
The OM 5E is a magnetic cartridge MM with an elliptical shaped stylus that provides balanced and distortion-free playback for general purpose applications.
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM?s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
If your tonearm is an standard tonearm, just leave the weight-plate.
If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.
Output voltage at 1000 Hz, 5cm/sec. - 4 mV
Channel balance at 1 kHz - 2 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-25.000 Hz
Frequency response - 20-20.000 Hz ñ 2 dB
Tracking ability at 315Hz at recommended tracking force * - 65 æm
Compliance, dynamic, lateral - 20 æm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 æm
* Typical value
Tracking force range - 1,5-2,0 g 15-20 mN
Tracking force, recommended - 1,75 g 17,5 mN
Tracking angle - 20ø
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Cartridge colour, body/stylus - Black/Black
Cartridge weight - 5 g
Replacement stylus unit - Stylus 5 E
Ortofon OM5E Moving Magnet Cartridge (Each)
Regular price
R 1,650.00
