Description

Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.

CARBON-X™ Cones

Paradigm’s exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.

 Advanced
Shock-Mount™ System

mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

Patented† Active Ridge Technology (ART™) surrounds

Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

Advanced Features for a Solid and Secure Installation

FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.

Reduced Edge Diffraction (RED™) Technology significantly reduces the adverse effects of diffraction while improving frequency response.

Pocketed screw holes help to hold the drill steady, making installation a snap.

FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.

Reduced Edge Diffraction (RED™) Technology significantly reduces the adverse effects of diffraction while improving frequency response.

Pocketed screw holes help to hold the drill steady, making installation a snap.

Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.


FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.


Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.


Reduced Edge Diffraction (RED™) Technology significantly reduces the adverse effects of diffraction while improving frequency response.


Pocketed screw holes help to hold the drill steady, making installation a snap.


Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

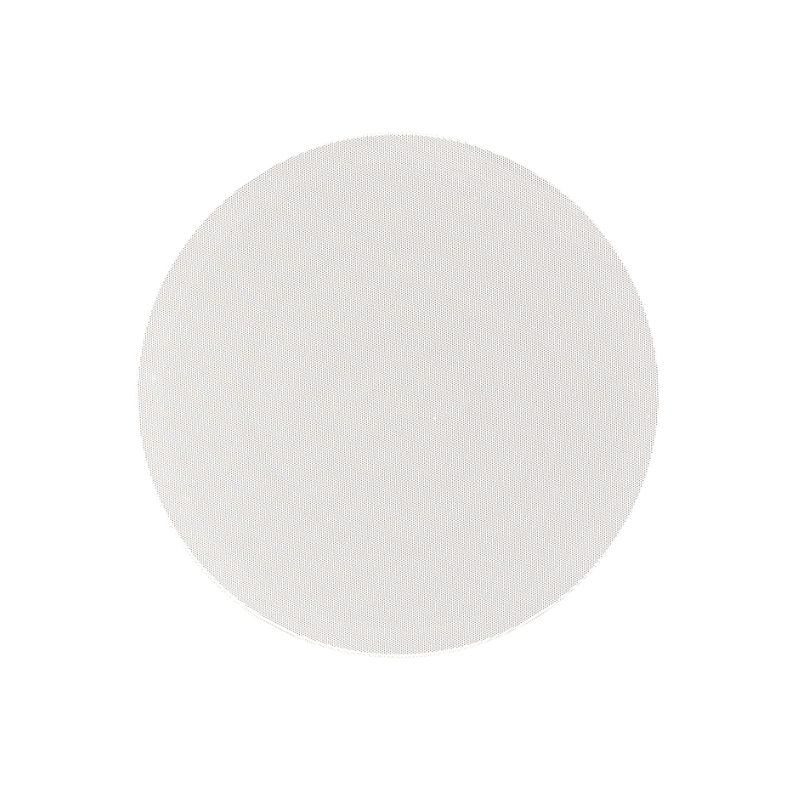

Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Specifications

  • Design: 2-driver, 2-way in-ceiling, Advanced SHOCK-MOUNT™ System, Ultra-Rigid CARBON-X™ Baffle
  • Crossover: 3rd-order electro-acoustic at 2.0 kHz
  • High Frequency Driver: 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
  • Frequency Response On-Axis: ±3 dB from 60 Hz - 22 kHz
  • Frequency Response 30° Off-Axis: ±3 dB from 60 Hz - 18 kHz
  • Mid/Bass Frequency Driver: 8” (20.3cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
  • Sensitivity (Room / Anechoic): 93 dB / 89 dB
  • Low Frequency Extension: 37 Hz
  • Suitable Amplifier Power Range: 15-160 W
  • Maximum Input Power: 100 W
  • Impedance: Compatible with 8 ohms
  • Finishes: White, paintable grille, black speaker
  • Cut-Out Dimensions: 9-3/16” (23.4cm) diameter
  • Minimum Mounting Depth: 3-7/8” (9.8cm)
  • Dimensions HxWxD (Includes Grille): 10-1/4” diameter x 4-1/2” depth (26.1cm x 11.4cm)
  • Weight: 6.4 lbs (2.9 kg)
Price on Request
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.

Paradigm CI Elite E80-R v2

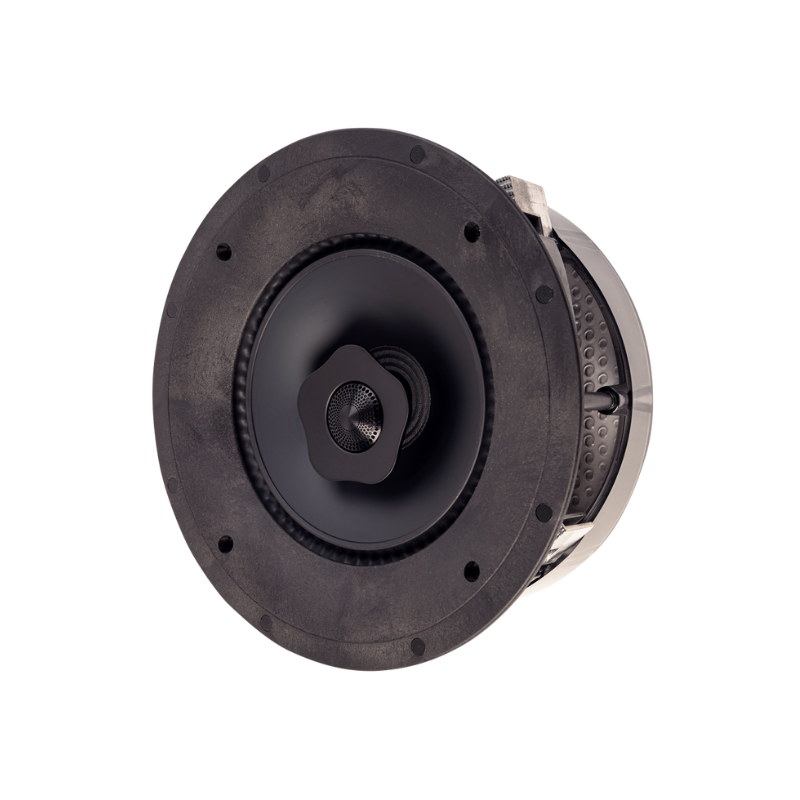

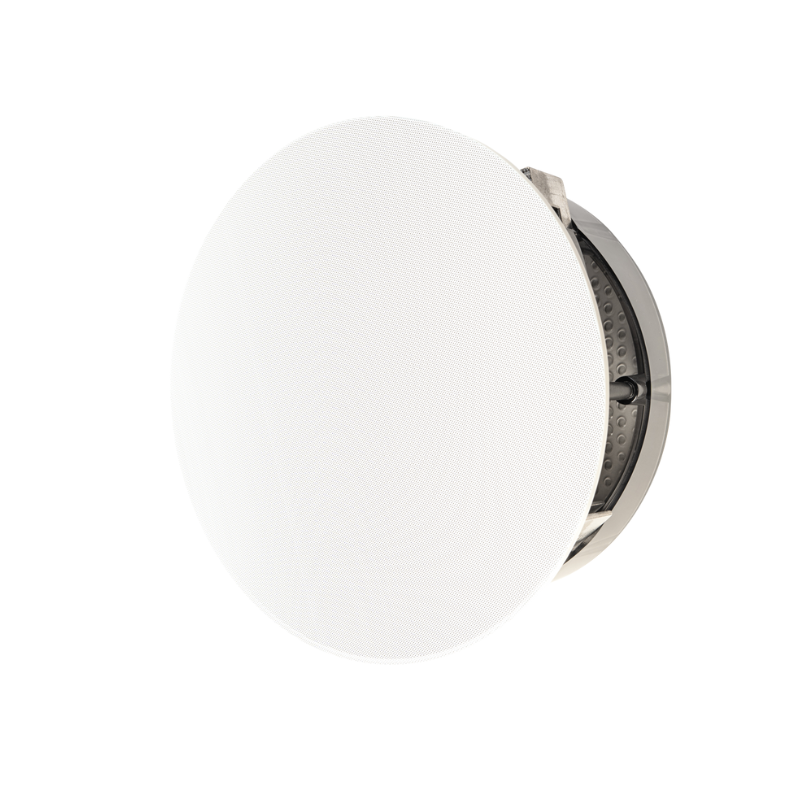

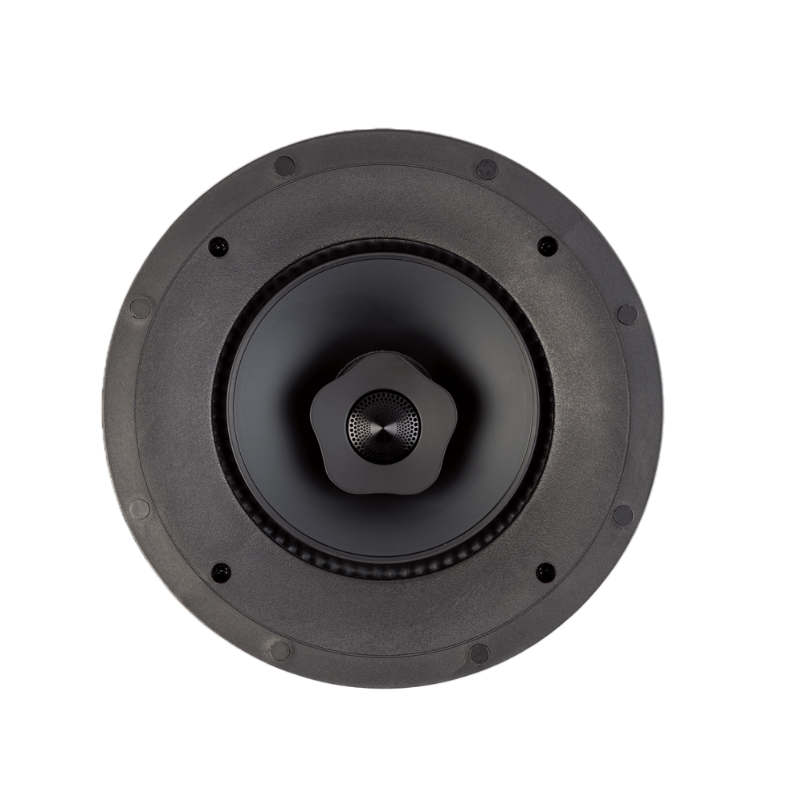

Paradigm CI Elite E80-R v2 In-Ceiling Speakers (Pair)

Price On Request

The Custom Installer’s Performance-Oriented Solution.The CI Elite series is Made in Canada and has all the technology advantages of our CI PRO Series, but we didn’t stop there. It’s packed full of features that make a difference, and it doesn’t get much sweeter than this when looking for the ultimat Read more
Enquire Now
Description

Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.

CARBON-X™ Cones

Paradigm’s exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.

 Advanced
Shock-Mount™ System

mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

Patented† Active Ridge Technology (ART™) surrounds

Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

Advanced Features for a Solid and Secure Installation

FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.

Reduced Edge Diffraction (RED™) Technology significantly reduces the adverse effects of diffraction while improving frequency response.

Pocketed screw holes help to hold the drill steady, making installation a snap.

FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.

Reduced Edge Diffraction (RED™) Technology significantly reduces the adverse effects of diffraction while improving frequency response.

Pocketed screw holes help to hold the drill steady, making installation a snap.

Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.


FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.


Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.


Reduced Edge Diffraction (RED™) Technology significantly reduces the adverse effects of diffraction while improving frequency response.


Pocketed screw holes help to hold the drill steady, making installation a snap.


Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Specifications

  • Design: 2-driver, 2-way in-ceiling, Advanced SHOCK-MOUNT™ System, Ultra-Rigid CARBON-X™ Baffle
  • Crossover: 3rd-order electro-acoustic at 2.0 kHz
  • High Frequency Driver: 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
  • Frequency Response On-Axis: ±3 dB from 60 Hz - 22 kHz
  • Frequency Response 30° Off-Axis: ±3 dB from 60 Hz - 18 kHz
  • Mid/Bass Frequency Driver: 8” (20.3cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
  • Sensitivity (Room / Anechoic): 93 dB / 89 dB
  • Low Frequency Extension: 37 Hz
  • Suitable Amplifier Power Range: 15-160 W
  • Maximum Input Power: 100 W
  • Impedance: Compatible with 8 ohms
  • Finishes: White, paintable grille, black speaker
  • Cut-Out Dimensions: 9-3/16” (23.4cm) diameter
  • Minimum Mounting Depth: 3-7/8” (9.8cm)
  • Dimensions HxWxD (Includes Grille): 10-1/4” diameter x 4-1/2” depth (26.1cm x 11.4cm)
  • Weight: 6.4 lbs (2.9 kg)
Price on Request
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.
