Paradigm’s Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models
Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.
Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.
Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.
Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

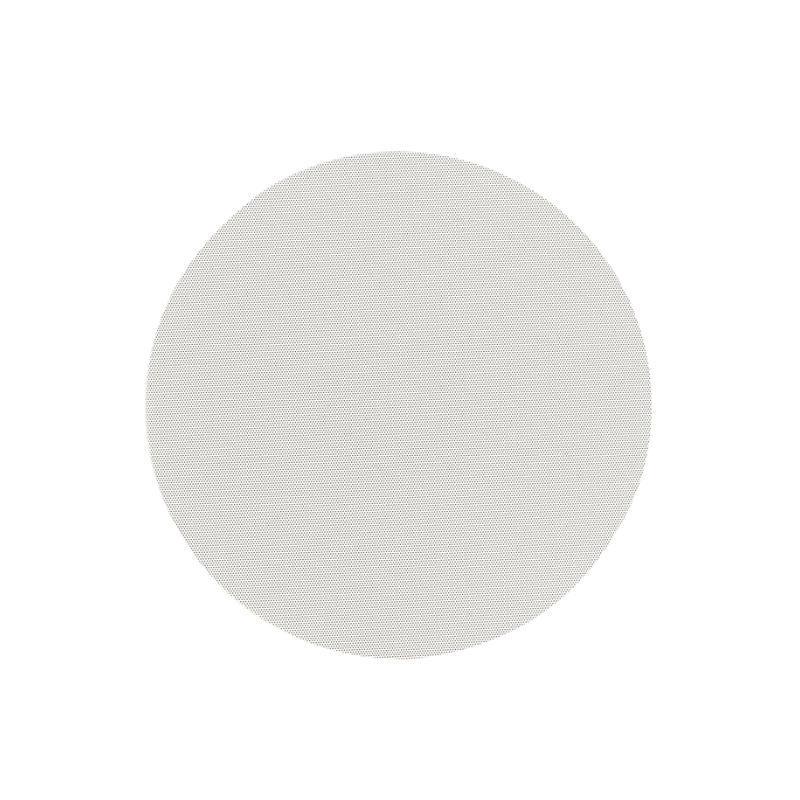

Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!
Specifications
-
Design:
- 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
-
Crossover:
- 2nd-order electro-acoustic at 3.0 kHz
-
High Frequency Driver:
- 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
-
Frequency Response On-Axis:
- ±2 dB from 70 Hz - 20 kHz
-
Frequency Response 30° Off-Axis:
- ±2 dB from 70 Hz - 18 kHz
-
Mid/Bass Frequency Driver:
- 6.5” (16.5cm) Mineral-filled Polypropylene Cone
-
Sensitivity Room / Anechoic:
- 89 dB / 85 dB
-
Low Frequency Extension:
- 55 Hz
-
Suitable Amplifier Power Range:
- 15-80 W
-
Maximum Input Power:
- 50 W
-
Impedance:
- Compatible with 8 ohms
-
Finishes:
- White, paintable grille, black speaker
-
Accessories (Not Included):
- PB-8RN
-
Cut-Out Dimensions:
- 7-3/4” (19.6cm) diameter
-
Minimum Mounting Depth (Depth Required is the Distance Between 1/2" Drywall, or Similar Material):
- 3” (7.6cm)
-
Dimensions HxWxD (Includes Grille):
- 8-3/4” (diameter) x 3-5/8” (depth) (22.1cm x 9.2cm)
-
Weight:
- 3.5 lbs (1.6 kg)
