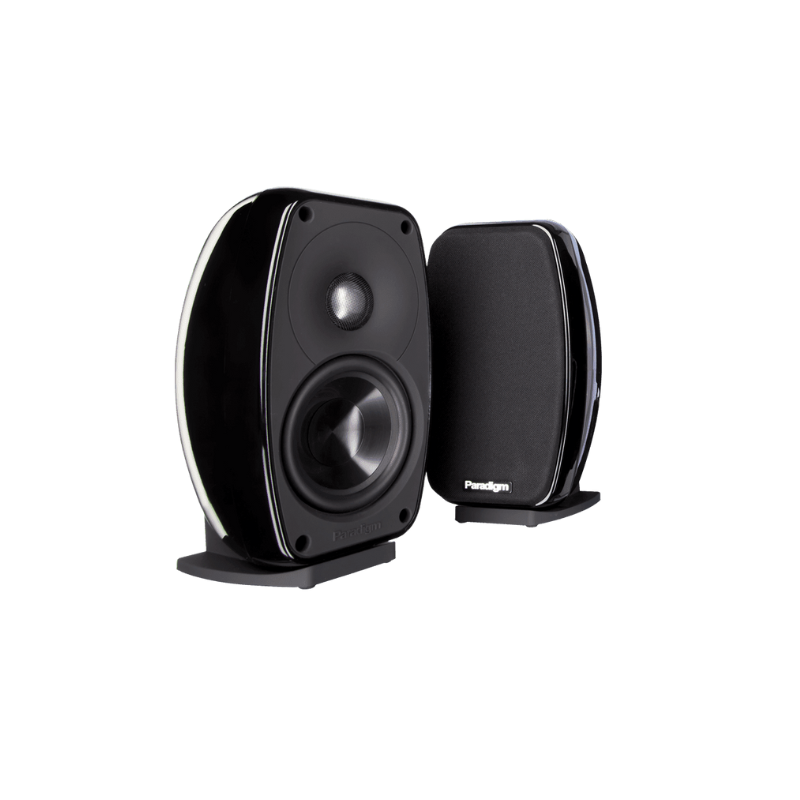

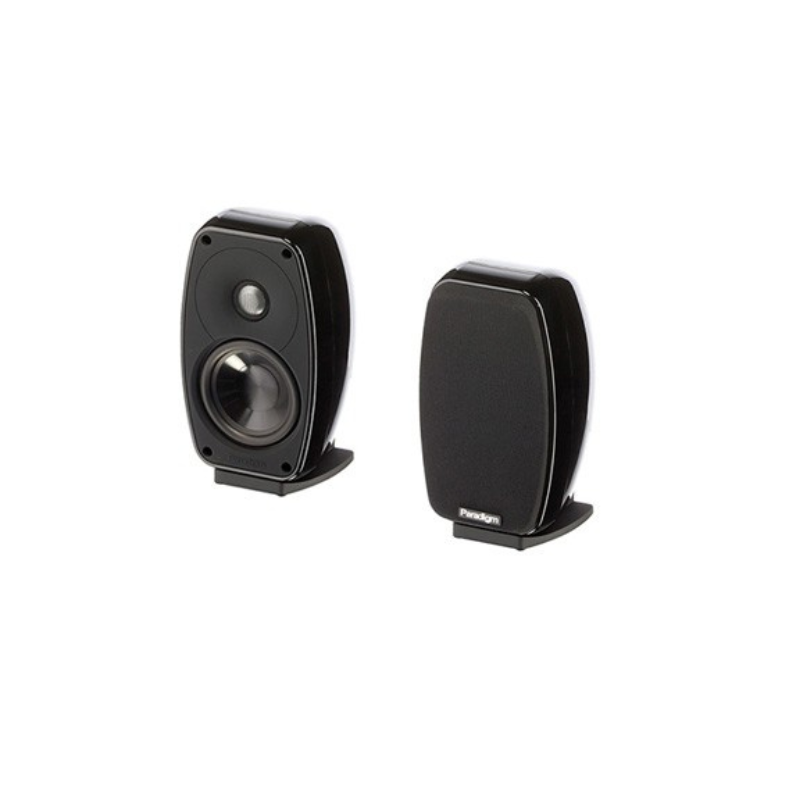

Cinema Satellite Tweeter
Superior S-PAL™ Satin-Anodized Pure-Aluminum Domes with powerful neodymium magnets and ferro-fluid cooling for increased power handling! Highs are transparent with a superb sense of air and exceptional spaciousness.
Wire Mesh Tweeter Guard and WaveGuide™ technology ensure a smooth, wide panorama of audiophile-quality sound.
Cinema Satellite Bass/Midrange Driver
Paradigm’s Cinema speakers deliver fantastic performance through the clever use of technology. Mineral-filled, polypropylene cones; advanced motor structures and high-temperature voice coils easily identify Cinema speakers as uniquely Paradigm.
Cinema Sub Subwoofer
Superior 8˝ High-Excursion Driver made of a durable reinforced polymer composite that in concert with the superior suspension system and motor/magnet structure allow the cone to travel farther while maintaining effective control.
Built-In High-Current, Discrete Output Amplifier:
300 watts Dynamic Peak / 100 watts RMS Sustained.
Dual Ported Design for even and articulate response.
Amplifier Controls:
Auto On / Standby / Soft Clipping
Subwoofer Cut-Off Frequency
Sub / Sat Phase Switch – 0° or 180°
Specifications
Design
- 2-driver, 2-way acoustic suspension, mineral-filled polymer enclosure
Crossover
- 2nd-order electro-acoustic at 1.8 kHz
High Frequency Driver
- 25-mm (1 in) S-PAL™ dome tweeter, ferro-fluid damped and cooled
Frequency Response On-Axis
- ±2dB from 125 Hz - 20 kHz
Frequency Response 30° Off-Axis
- ±2dB from 125 Hz - 15 kHz
Mid/Bass Frequency Driver
- 102-mm (3-1/2 in) mineral-filled polypropylene cone
- 25-mm (1 in) high-temperature voice coil
- Advanced motor structures and oversized ferrite magnets
Sensitivity Room / Anechoic
- 88 dB / 85 dB
Low Frequency Extension
- 85 Hz (DIN)
Suitable Amplifier Power Range
- 15 - 100 watts
Maximum Input Power
- 50 watts
Impedance
- Compatible with 8 ohms
Finishes
- Black Gloss
Dimensions (H x W x D)
- 8.375" × 4.8125" × 6.8125" (21.3cm × 12.2cm × 17.3cm)
Weight
- 4 lbs. (1.8 kg)
