Performance & Value
To produce a loudspeaker that meets our standards for performance and value, we took complete control of the manufacturing process, an unprecedented move at this price point. In our state-of-the-art North American facility, we have produced a loudspeaker that defies convention; a homegrown loudspeaker that benefits from innovations found throughout the Paradigm family of loudspeakers.
Patented Perforated Phase-Aligning (PPA™) Tweeter and Midrange Lens Technology
Distinctive perforated lens in front of the tweeter and midrange drivers increase and smooth output without coloring the sound, while also protecting the drivers from getting damaged.
Patented Active Ridge Technology (ART™) Surrounds
Premier features Paradigm’s patented Active Ridge Technology (ART) surrounds, made in-house and overmolded directly onto each woofer and midrange cone. This design achieves greater excursion, for a 3dB gain in output and 50% reduction in distortion. Crafted from injection-molded thermoplastic elastomer, ART surrounds are more durable and more reliable, ensuring a lifetime of superior sound.
Specifications

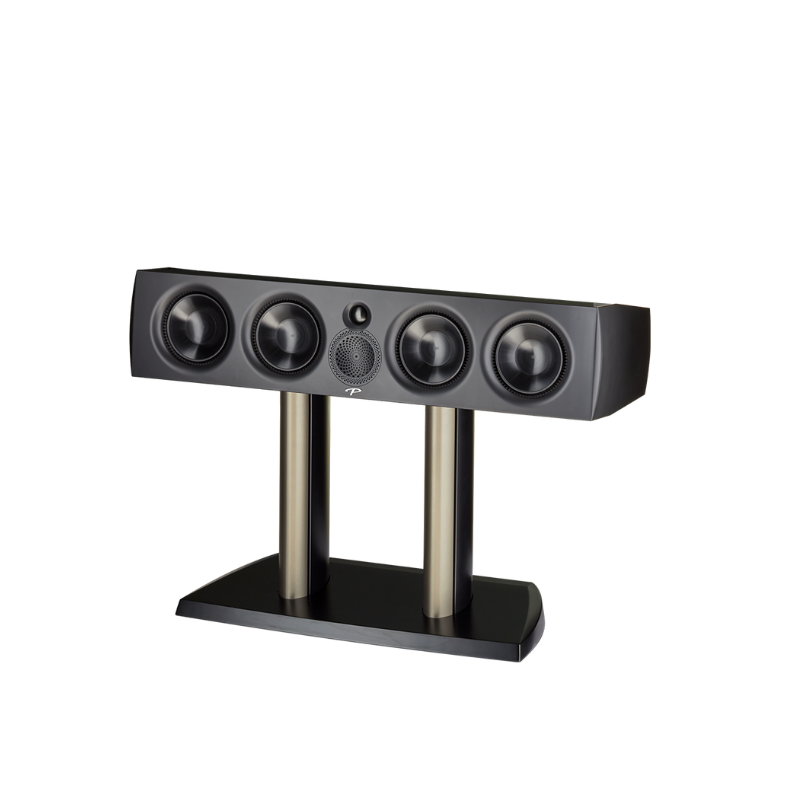

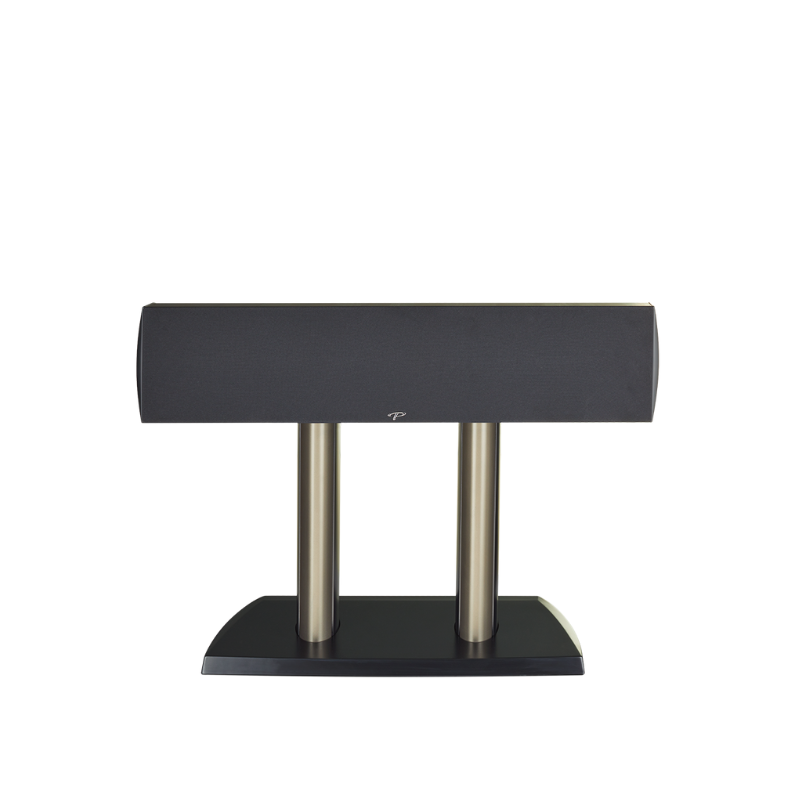

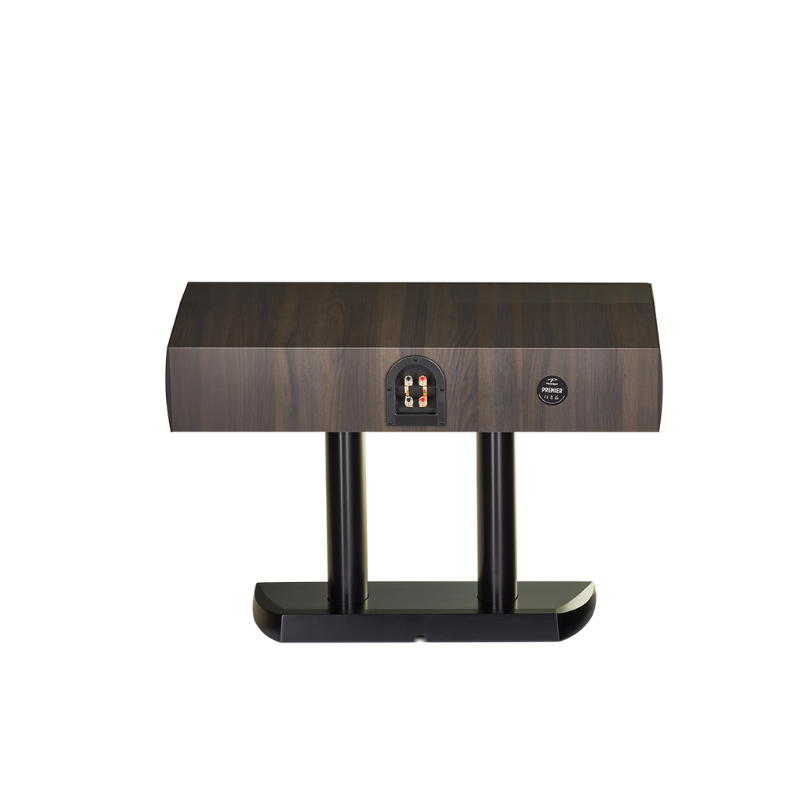

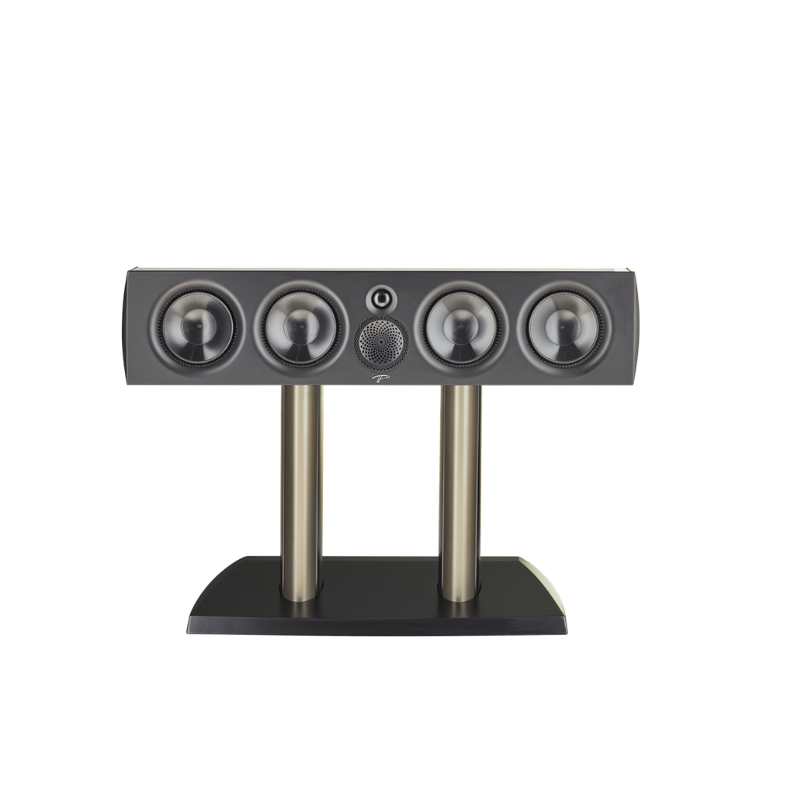

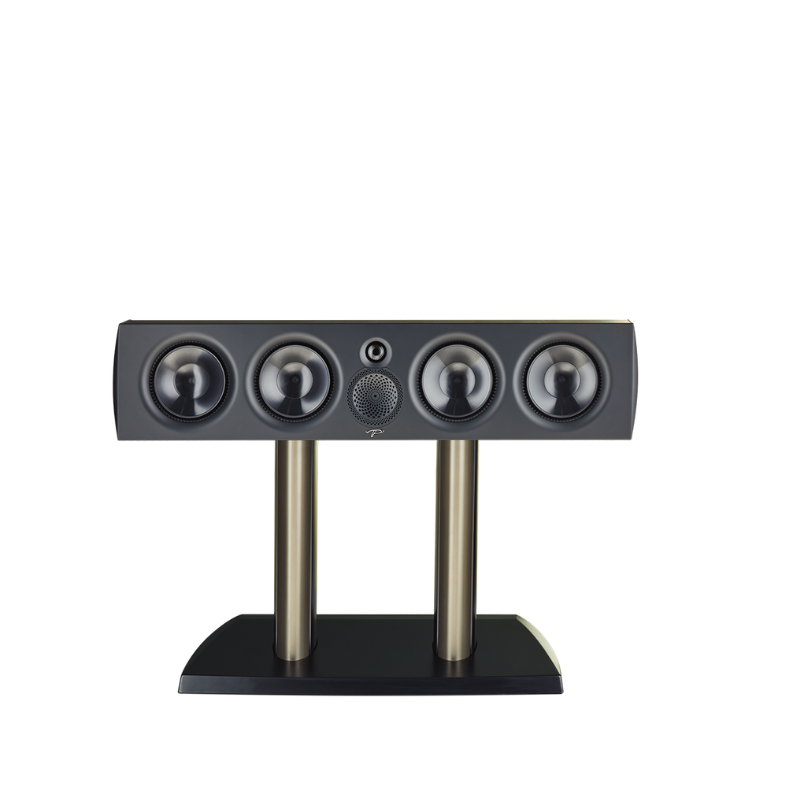

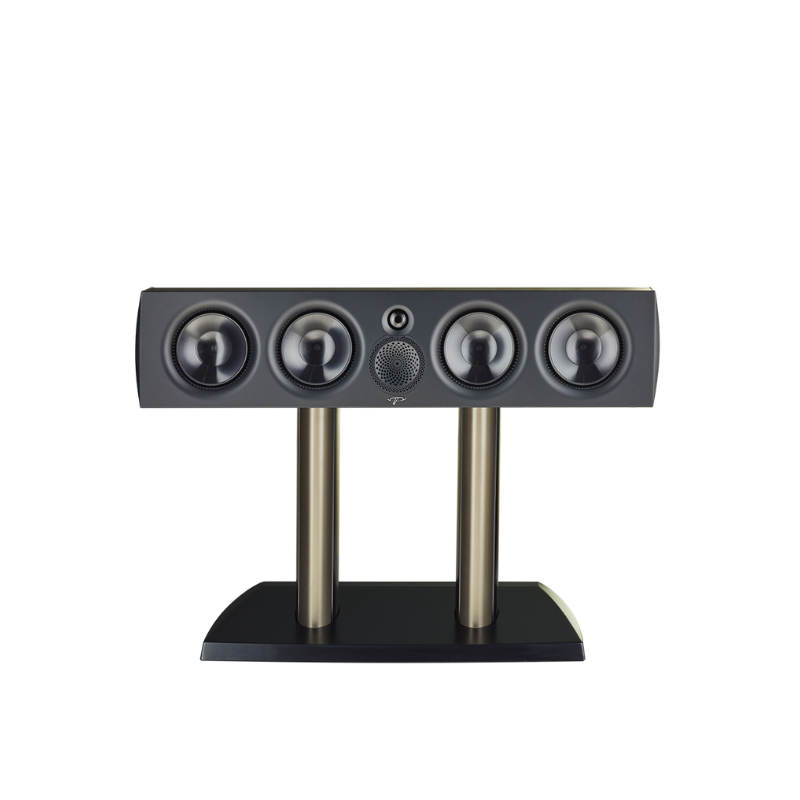

Model: DESIGN6 - 3-Way Passive Radiator Bass Reflex Center Channel Speaker
- Crossover: 2nd-order electro-acoustic at 2.5 kHz (tweeter/mid) and 700Hz (mid/woofers)
- High Frequency Driver: 1” (25mm) X-PAL™ dome, ferro-fluid damped/cooled, Perforated Phase-Aligning Tweeter (PPA™) Lens
- Frequency Response On-Axis: ±3dB from 60 Hz - 25 kHz
- Frequency Response 30° Off-Axis: ±3dB from 60 Hz - 20 kHz
- Midrange Frequency Driver: 4” (102mm) Black Anodized X-PAL™ cone, Perforated Phase-Aligning (PPA™) Lens
- Low Frequency Driver: Two 6-1/2” (165mm) ART™ Surround Carbon-Infused polypropylene cones
- Passive Radiators: Two 6-1/2” (165mm) ART™ Surround Carbon-Infused polypropylene cones
- Sensitivity (Room/Anechoic): 94 dB / 91 dB
- Low Frequency Extension: 40 Hz (DIN)
- Suitable Amplifier Power Range: 15 - 180 watts
- Maximum Input Power: 120 watts
- Impedance: Compatible with 8 ohms
- Finishes: Gloss Black, Gloss White, Espresso Grain MK 2
- Dimensions (H x W x D): 7.75" × 35.75" × 13.5" (19.7cm × 90.8cm × 34.2cm)
- Weight: 43 lbs. (19.5 kg)
