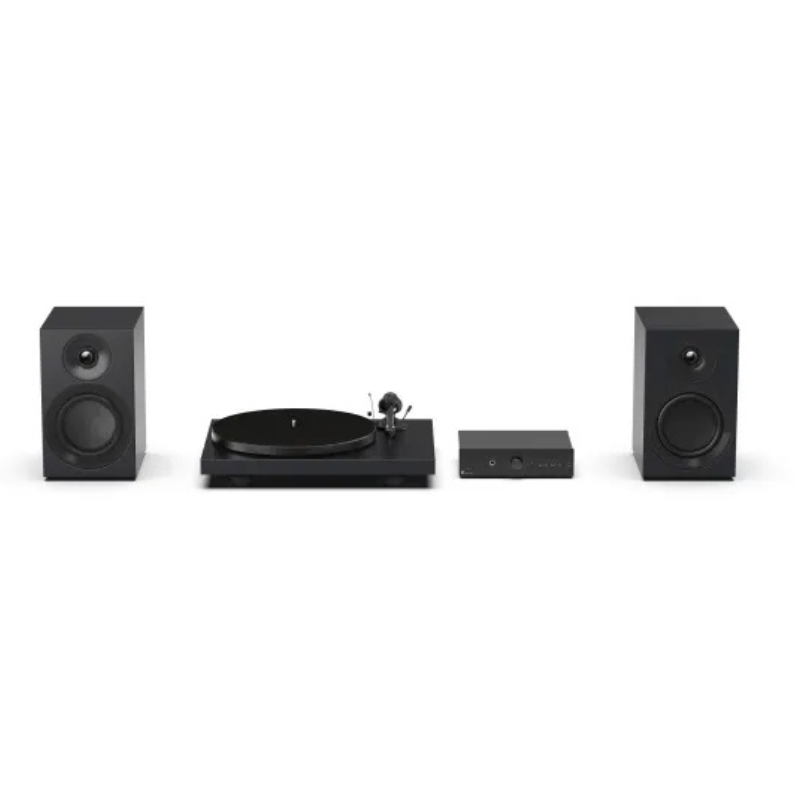

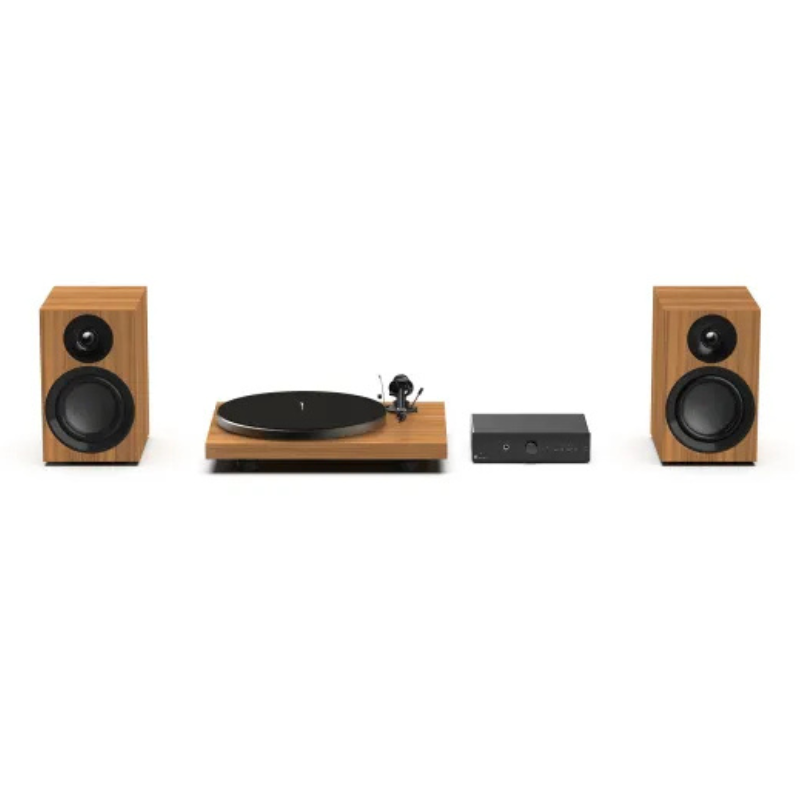

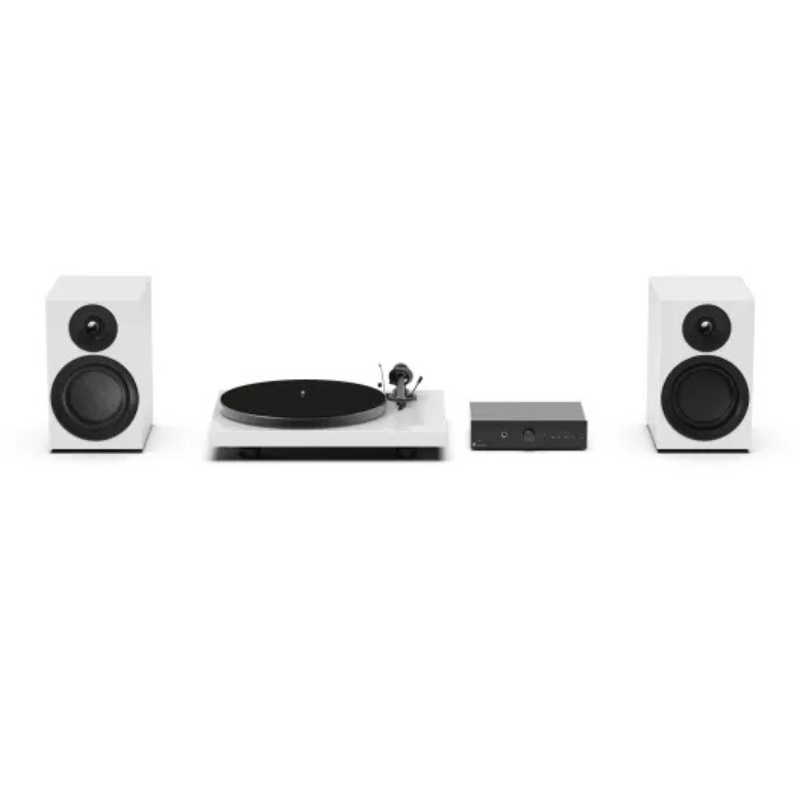

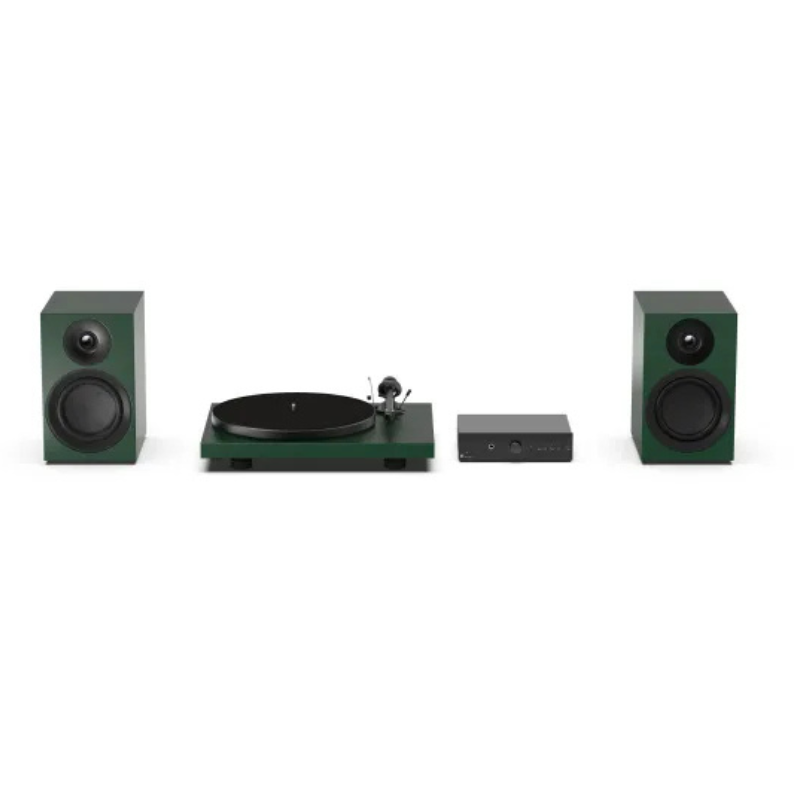

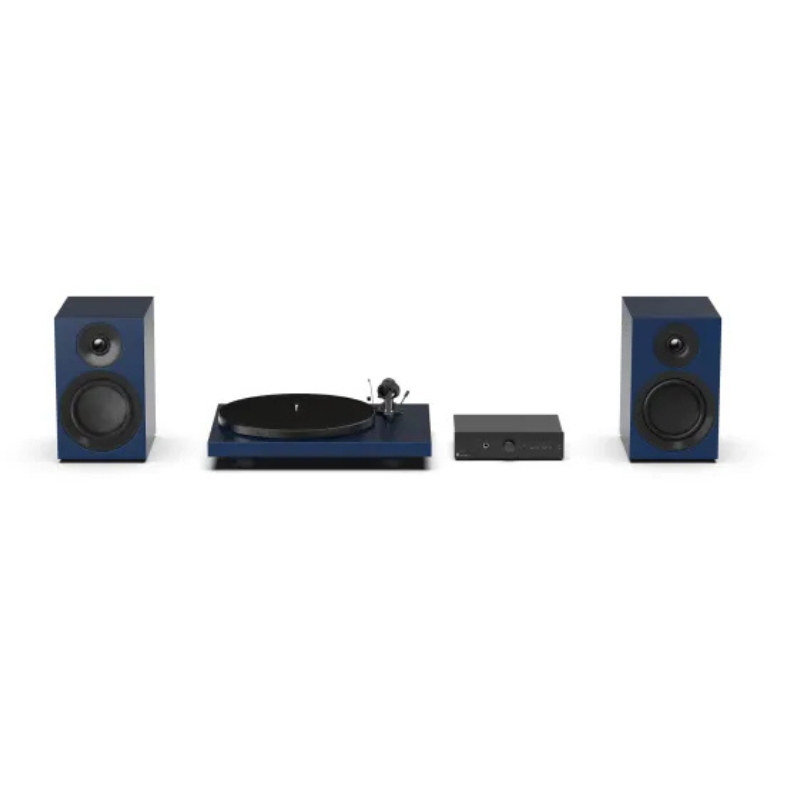

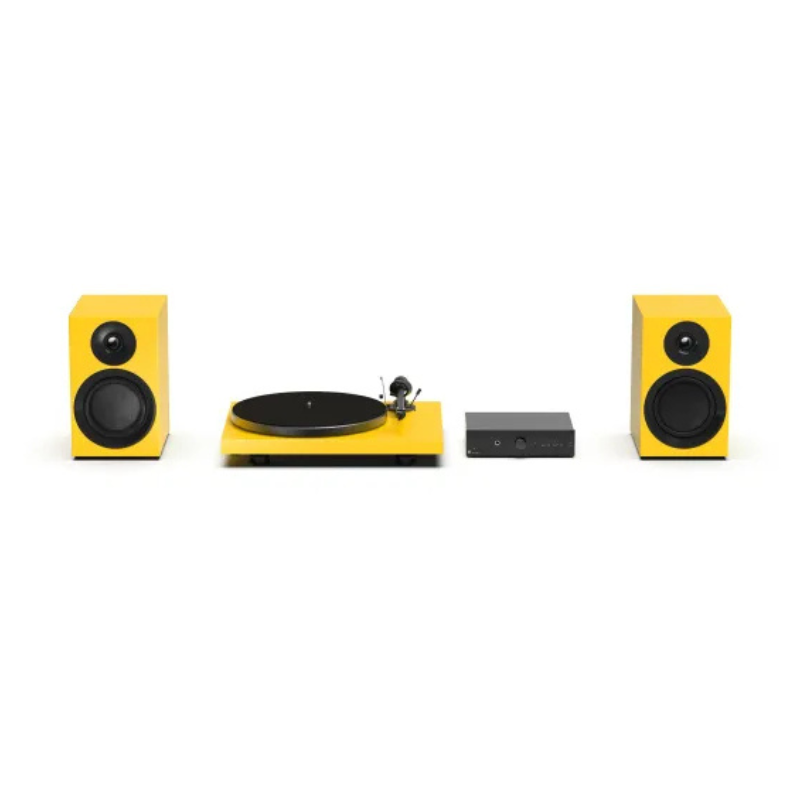

Debut E
Premium Turntable - Made in Europe!
Stereo Box E in Black
Versatile Integrated Stereo Amplifier
Speaker Box 5 E Carbon
The speaker delivers an audiophile flat frequency response from 65 to 20.000 Hz with flawless details. It offers a tight powerful bass and keeps the musicality alive.
The Speaker Box 5 E Carbon features a 1“ silk dome tweeter, paired with a special 5“ fiber glass carbon composite woofer. Mounted into an ultra stiff non resonating MDF cabinet, these chassis deliver an audiophile music reproduction.
Specifications
| Debut E | |
| Speed | 33, 45/(78) (electronic speed change) |
| Drive principle: | belt drive, electronic speed control |
| Platter: | 300mm, steel platter |
| Platter bearing: | Stainless steel axle in bronze bushing |
| Wow & flutter: | 33: +/-0,22%; 45: +/-0,21% |
| Speed drift: | 33: +/-0,80%; 45: +/-0,85% |
| Signal to noise: | 68dB |
| Tonearm: | 8,6” one-piece aluminium tonearm |
| Effective arm length: | 218,5 mm |
| Overhang: | 18,5mm |
| Included accessories | 15V DC / 0,8A power supply, dust cover, 78 RPM round belt, 7‘‘ single adapter |
| Power consumption | 4W / 0W standby |
| Dimensions - dustcover open: | 415 x 365 x 405mm (WxHxD) |
| Weight | 5,5 kg net (7 kg incl. packaging) |
| __________________________________________ | __________________________________________ |
| Stereo Box E | |
| Power output | 2x 40W at 4 ohms (1% THD) |
| THD: | < 0,12% at 5W / 4 ohms |
| Phono MM input: | 1 x RCA with grounding screw |
| Line level inputs: | 1 x RCA, 1 x 3.5mm |
| BT music receiver codec: | aptX, aptX HD, A2DP |
| Outboard power supply: | 20V/3A DC |
| Standby power consumption | < 0,5W |
| Included accessories | Remote control, power supply |
| Dimensions | 206x51x186 mm (WxHxD) |
| Weight | 1 kg without power supply (2 kg incl. packaging) |
| __________________________________________ | __________________________________________ |
| Speaker Box 5 E Carbon | |
| Enclosure type: | bass reflex via rear firing port |
| Recommended amplifier power: | 10 to 150 watts |
| Frequency response: | 65Hz - 20kHz |
| Nominal impedance | 4 Ohm |
| Sensitivity: | 86dB (1w /1m) |
| Chassis: | 1” silk dome tweeter |
| 5” carbon fiber glass bass/mid | |
| Dimensions | 270 x 165 x 220 mm (HxWxD) |
| Included accessories | Speaker grills (black) |
| Weight | 4,76 kg each (10 kg incl. packaging total) |
