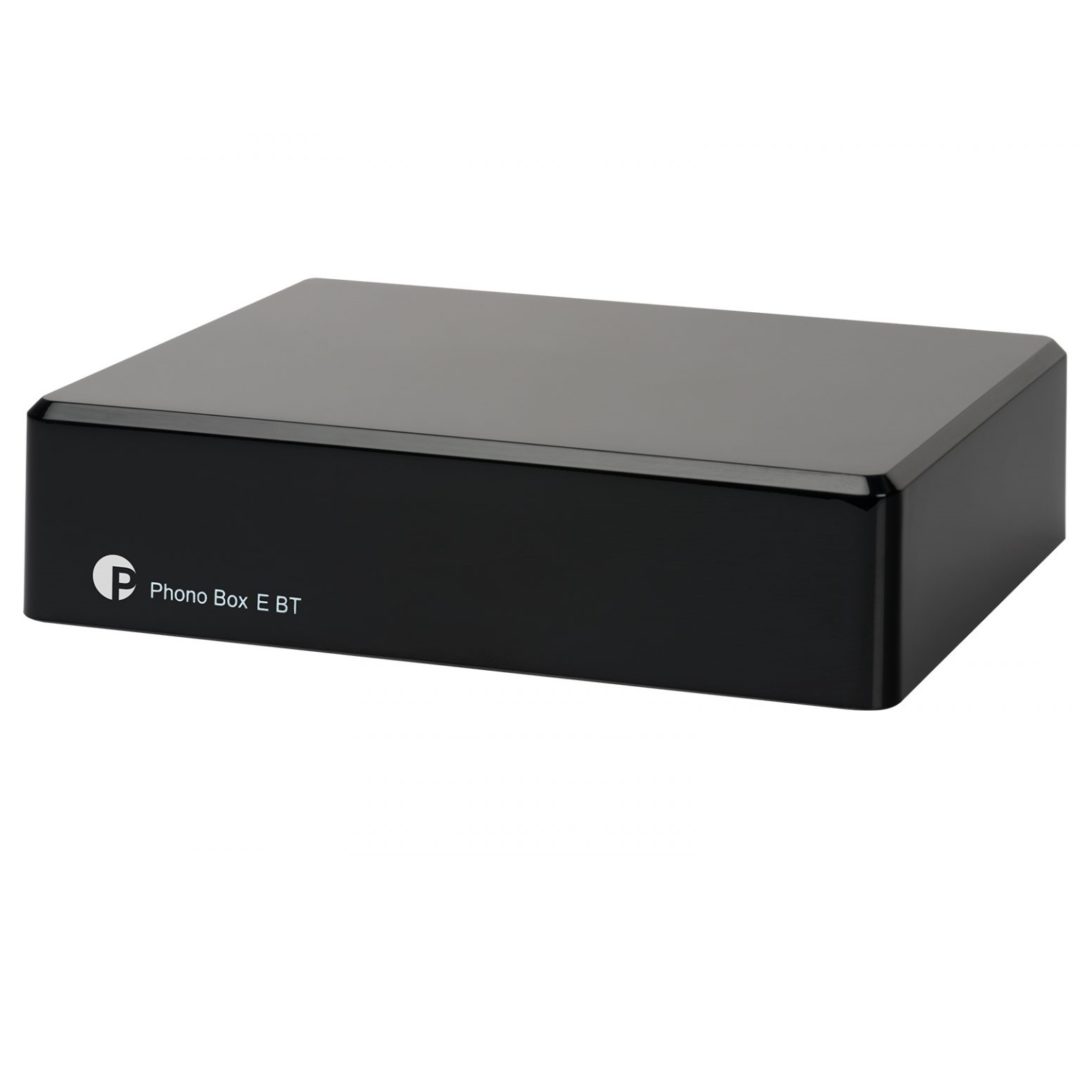

Our entry-level phono stage has been highly requested by the aspiring and rising audiophiles. After the big success of our VT-E BT, we decided to create a phono preamplifier that turns any turntable (with moving magnet cartridge) into a modern Bluetooth streamer. Phono Box E BT offers two separate inputs, one phono, and one line-level input, as well as two separate outputs. It can be used as an ordinary MM phono stage that connects to any HiFi amplifier via its line-level output (3.5mm jack) or it can be used as a Bluetooth streamer. It takes any provided analogue input signal, converts it, and sends digital audio to any Bluetooth receiver within a 10m range. Those devices could be either Bluetooth headphones, speakers, or any other Bluetooth receiver. The super-fast pairing is the icing on the cake and makes sure that listening to your LPs will be as painless and quick as possible.
The housing is shielded with a metal interior that protects the unit against vibrations and radio frequency interferences, which guarantees an undisturbed listening experience.
Phono Box E BT is the perfect companion for all modern audiophiles who want to enjoy their vinyl hobby with the comfort of wireless streaming!
Features
- Wireless Bluetooth streaming from a line or phono sources
- 2 Inputs: 1 Phono and 1 Line Input
- Suitable for MM cartridges
- Precise RIAA equalisation
- Use analogue RCA & Bluetooth output simultaneously
- Low noise circuitry
- Internal metal shielding
- Gold-plated RCA connectors
- Outboard power supply included
- Colour options: black or white
Technical Specifications
| Phono input impedance | 47 kohms |
| Phono capacitance | 100 pF |
| Gain phono | 34 dB |
| Inputs | 1 Phono (RCA), 1 Line In (3.5 mm) |
| Outputs | 1 Line Out (3.5 mm), 1 Bluetooth |
| Noise floor | 74 dB |
| THD | < 0,02% at 1kHz |
| Phono/Line in max. input voltage | 800mV |
| RIAA equalisation curve accuracy | within 0.5 dB/20 Hz - 20 kHz |
| Bluetooth | V2.1, EDR |
| outboard power supply | 18 V/500 mA DC, suitable for your country's mains supply |
| Power consumption | 200 mA DC |
| Dimensions W x H x D (D with sockets) | 120 x 32 x 100 (106) mm |
| Weight | 280 g without power supply |
