Inverted ceramic ball bearing with magnetic support
Heavy weight record clamp
MDF chassis filled with metal granulate with low levels of resonance and high mass

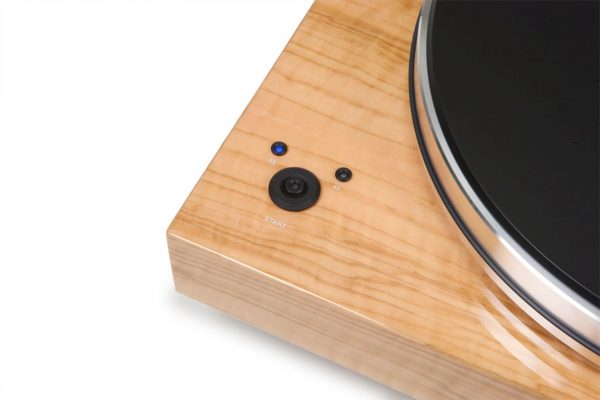

Electronic speed control 33/45 rpm
Tonearm 9cc Evolution made from carbon fibre
Inverted tonearm bearings (ABEC 7 quality)
Dust cover included
Speed
33, 45 (electronic speed change)
Principle
Belt drive
Platter
300 mm aluminium (TPE damped)
Main bearing
Inverted stainless steel with ceramic ball with antimagnetic support
Wow & flutter
± 0.10% (max)
Speed variance
± 0.09% (max)
Signal to Noise
73 dB
Tonearm
9” cc EVO, Carbon
Effective arm length
230 mm
Effective tonearmmass
8.5 g
Overhang
18.0 mm
Tracking force range
0 - 25 mN
Included accessory
Power supply, dust cover
Power consumption
4 Watts max / < 1 Watt standby
Dimensions
465 x 185 x 350 mm (WxHxD)
Weight
18.0 kg net

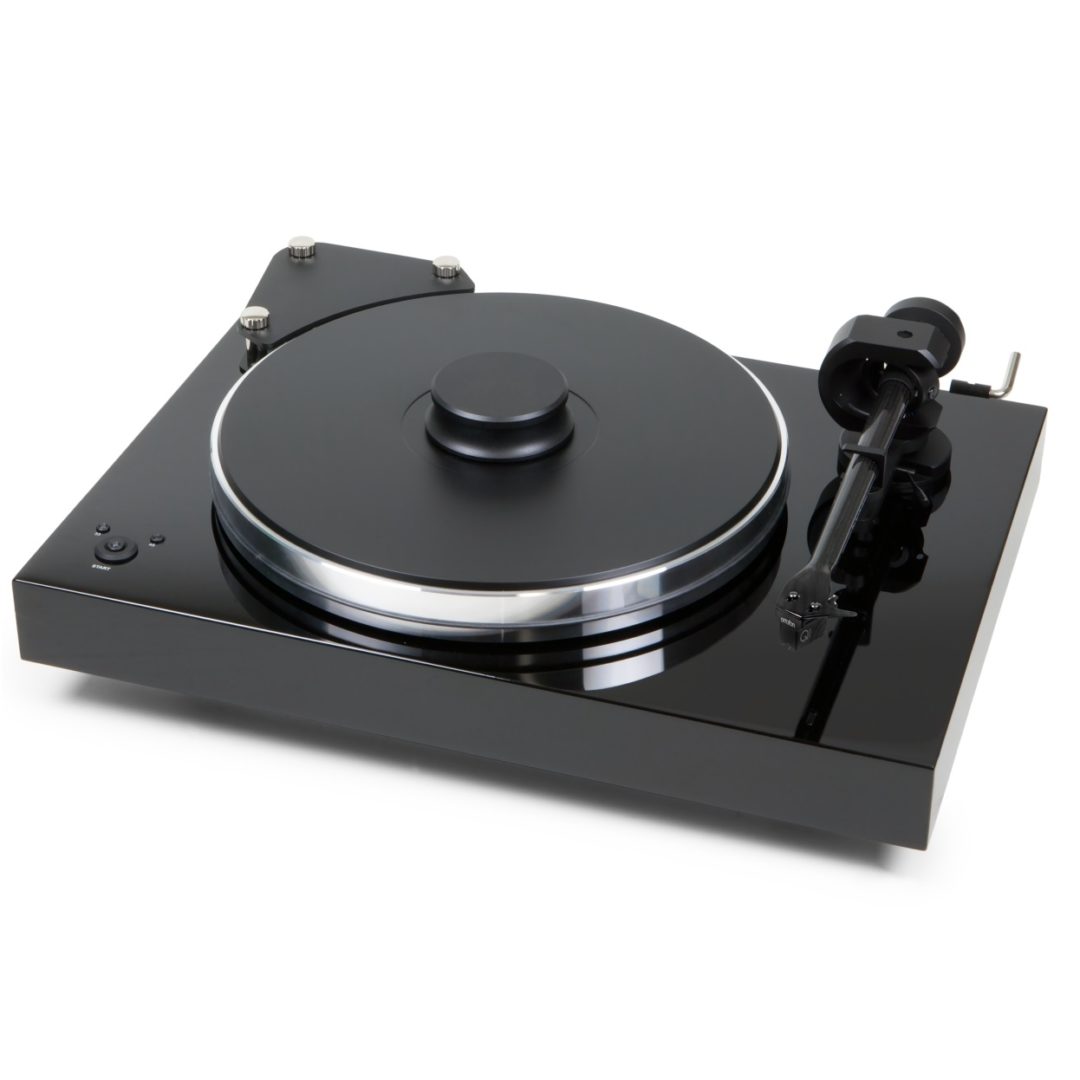

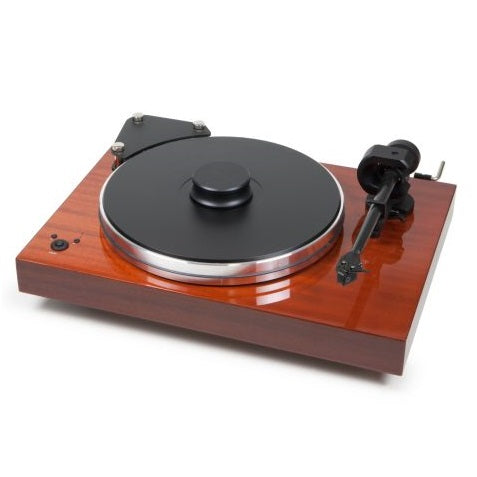

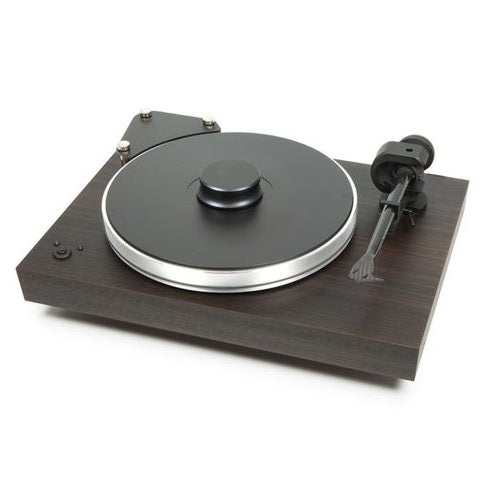

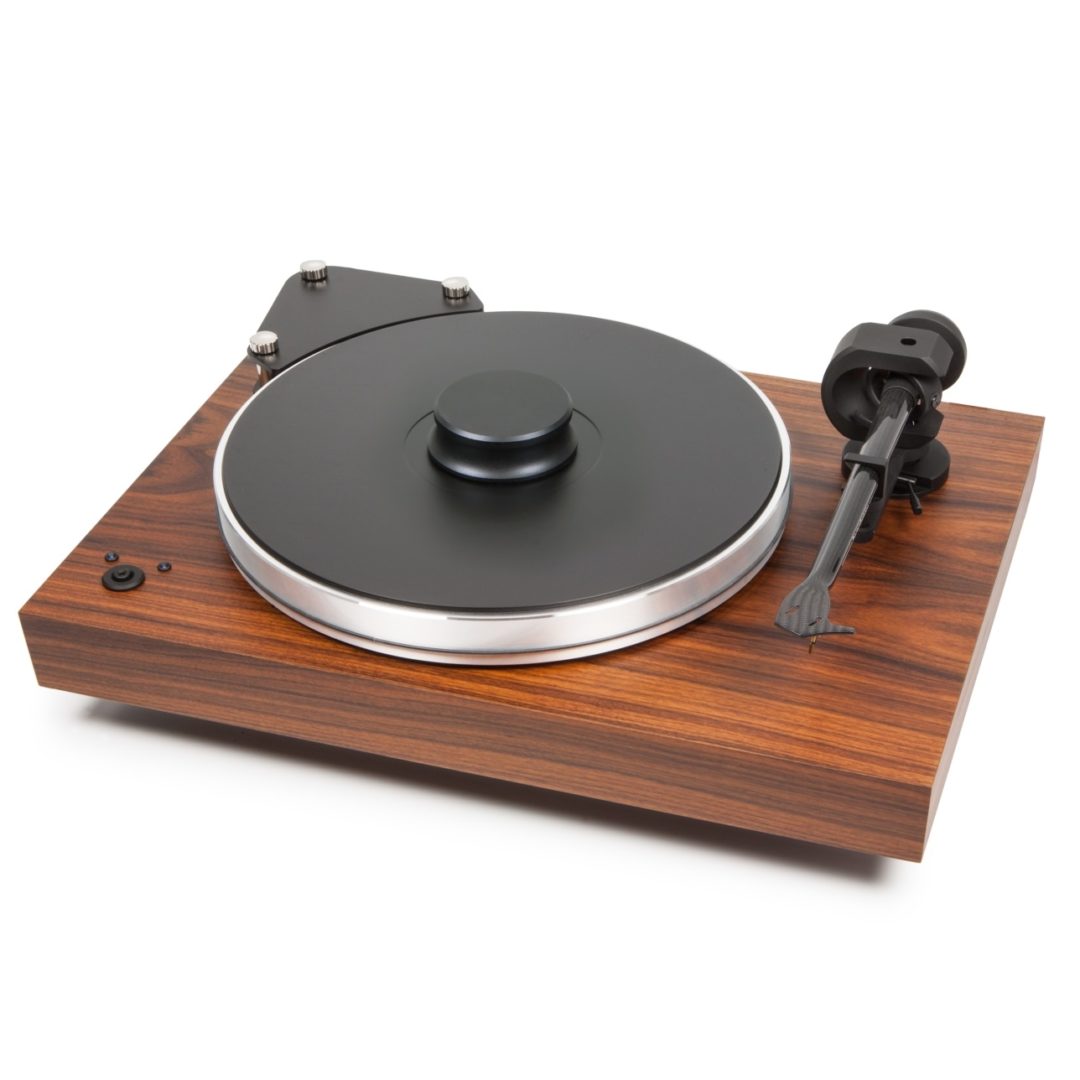

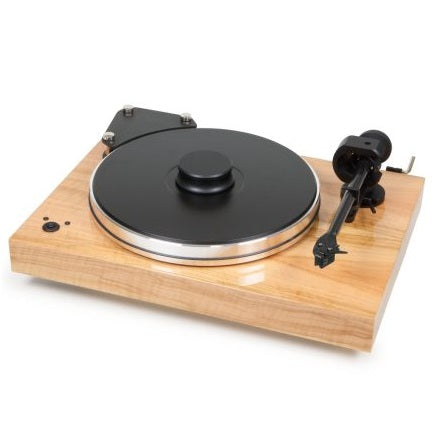

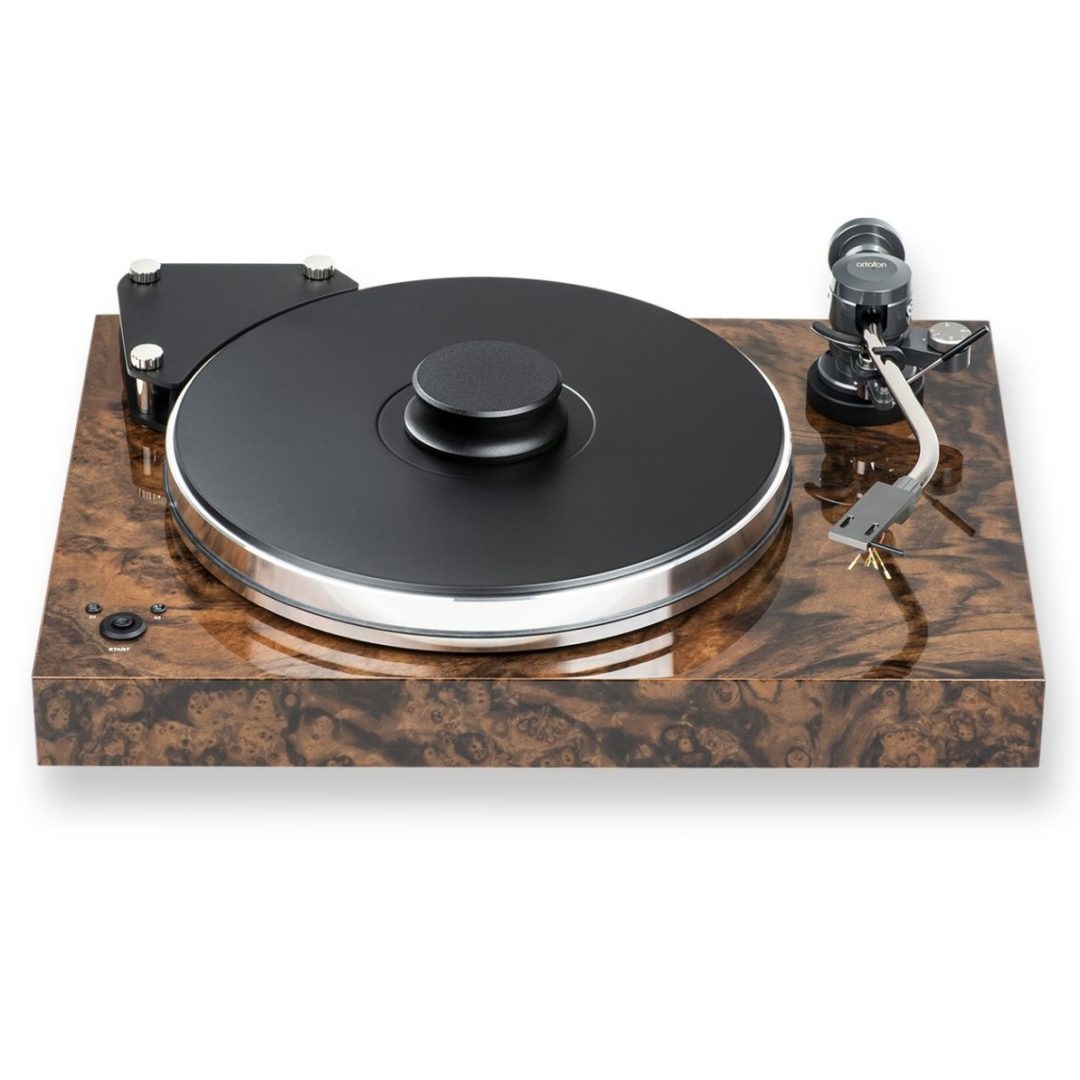

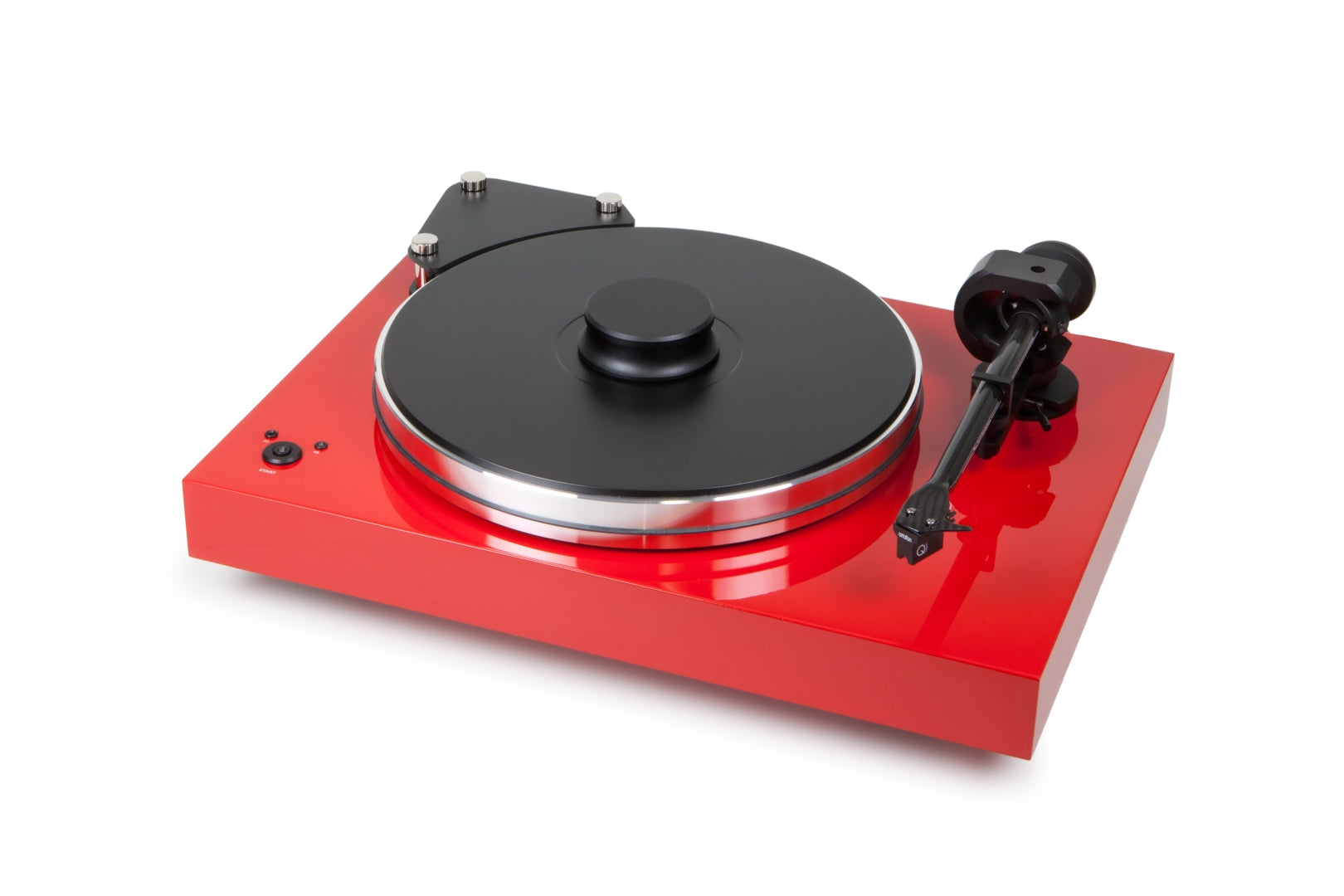

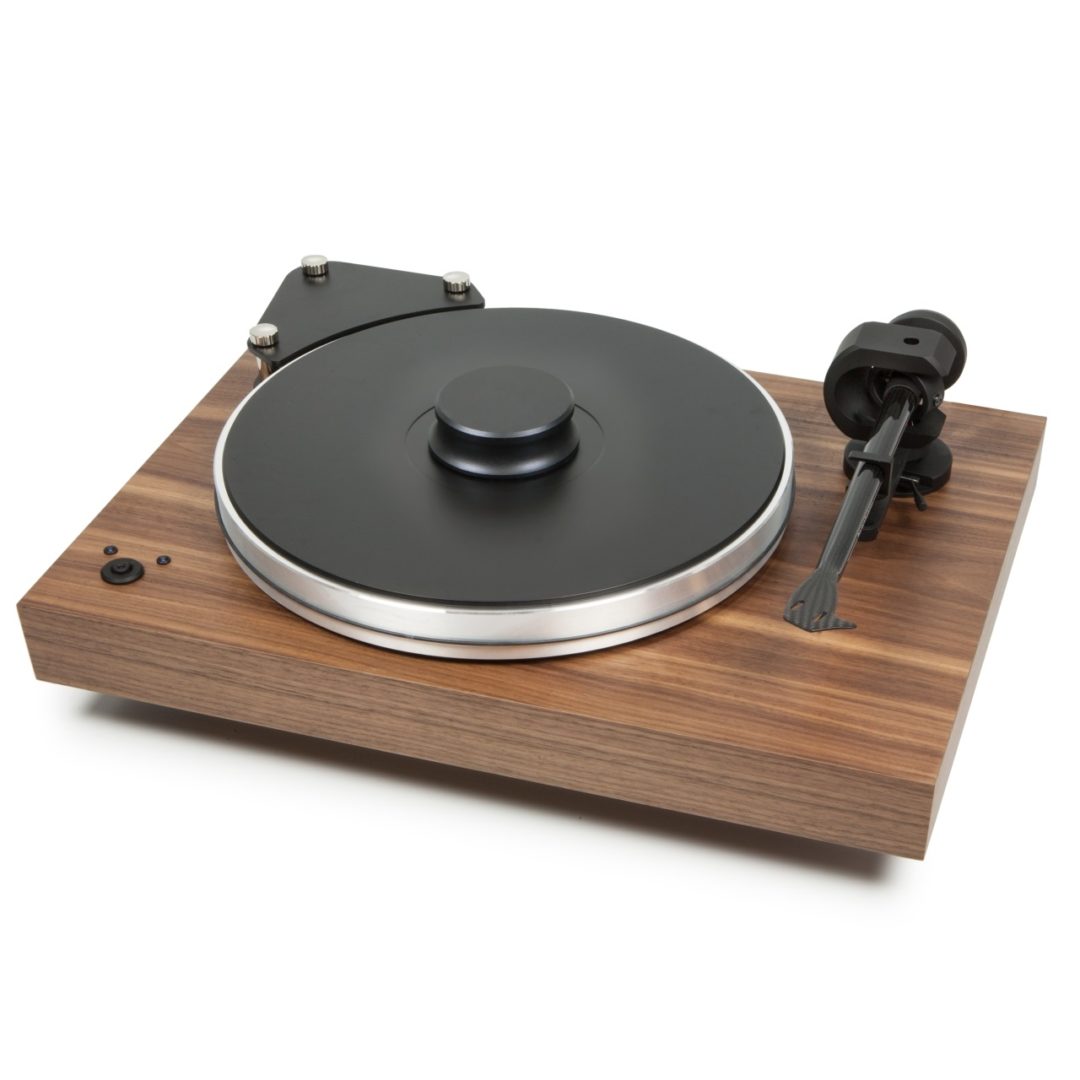

Pro-ject X-TENSION 9 EVOLUTION High-Gloss Red

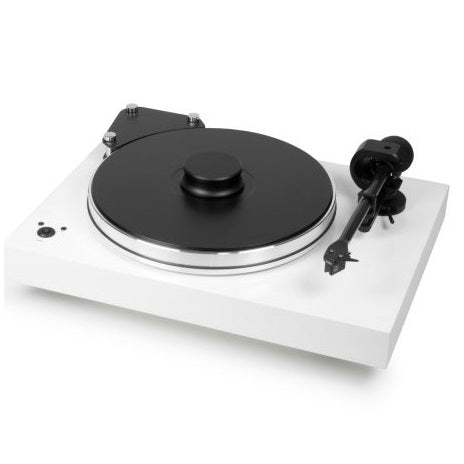

Pro-ject Xtension 9 EVOLUTION
Regular priceR 99,999.00
Superlative vinyl performance from a compact luxurious turntable/arm configuration!
Xtension 9 Evolution incorporates all our turntable design experience from more than 20 years in a slim-line size to fit standard audio racks. Xtension 9 chassis is made from MDF filled with metal gra
Read more
Superlative vinyl performance from a compact luxurious turntable/arm configuration!
Xtension 9 Evolution incorporates all our turntable design experience from more than 20 years in a slim-line size to fit standard audio racks. Xtension 9 chassis is made from MDF filled with metal granulate, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 16 kg total turntable mass. With these two magnets located in the feet, the turntable is practically floating. The result is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles. Instead of pure metal for the main platter, we’ve found a perfect alloy which we damped on with thermo plastic elastomers (TPE). Additionally we’ve placed recycled Vinyl records on top (which act as a perfect mat) and bake this ‘sandwich’ before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension. The Xtension 9 Evolution includes a top-class high-end tonearm 9” Evolution.
The turntable comes either with or without a Quintet Black cartridge, manufactured by the cartridge experts at Ortofon. Pro-Ject Audio Systems offers their high-end turntables with premium 5pin > RCA unbalanced arm cable or – by request – with premium balanced 5pin > XLR connection to Pro-Ject Phono Box RS preamplifier. Phono Box RS offers balanced phono inputs, what guarantees superior results in high-end vinyl reproduction with a balanced signal source.
NOTE: The signal source and the receiving device have to be equipped with balanced connections. Transmission of audio signals in a balanced mode reduce the influence of interference due to external stray electric fields significantly.
In the box:
Xtension 9 Evolution optionally as SuperPack with Ortofon Quintet Black
Connect it 5P-E RCA Cable (Upgrade option: 5P-XLR)
