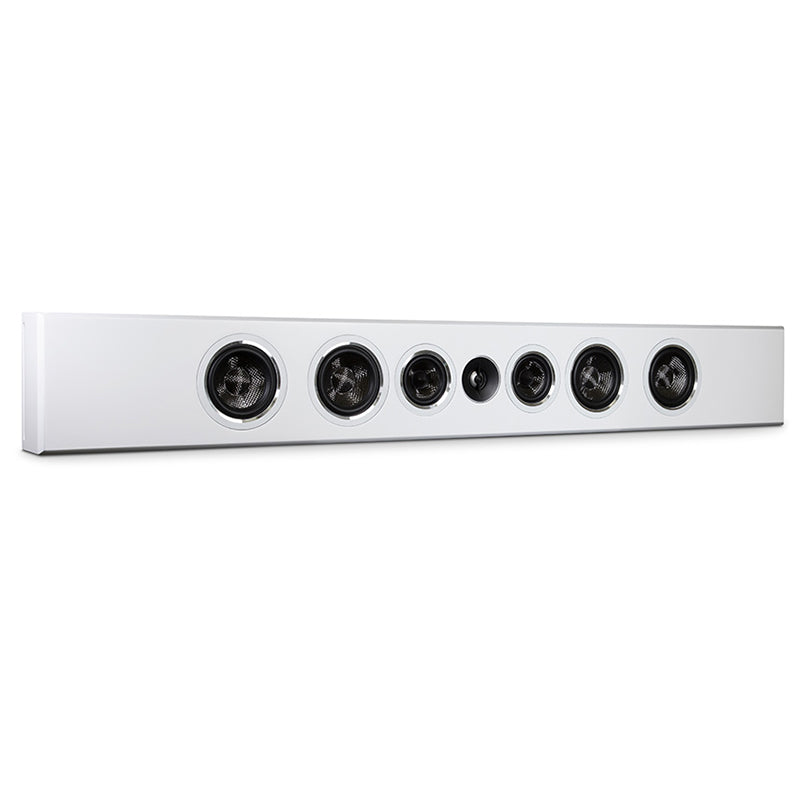

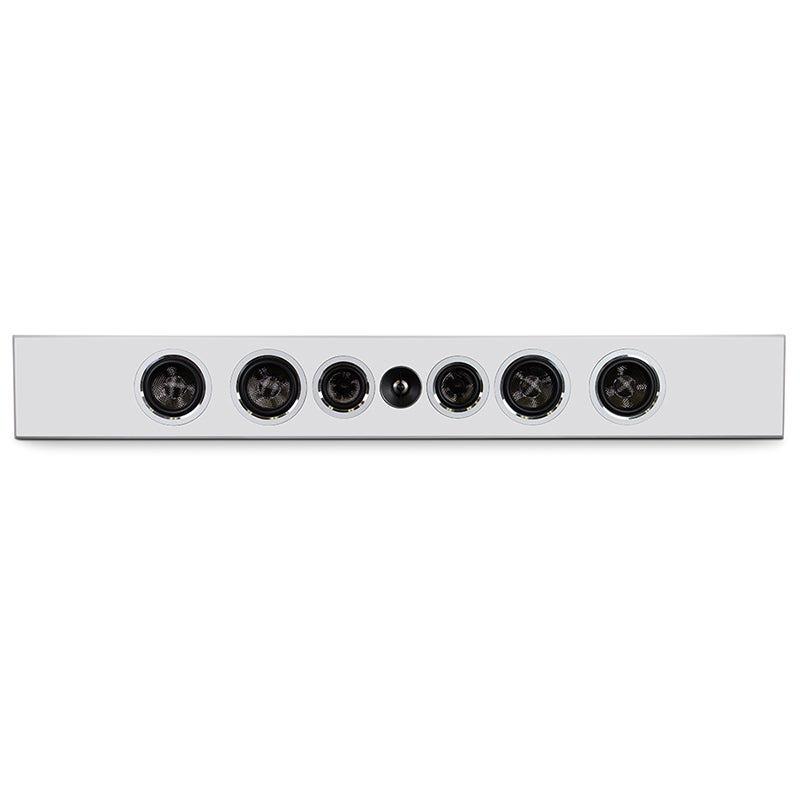

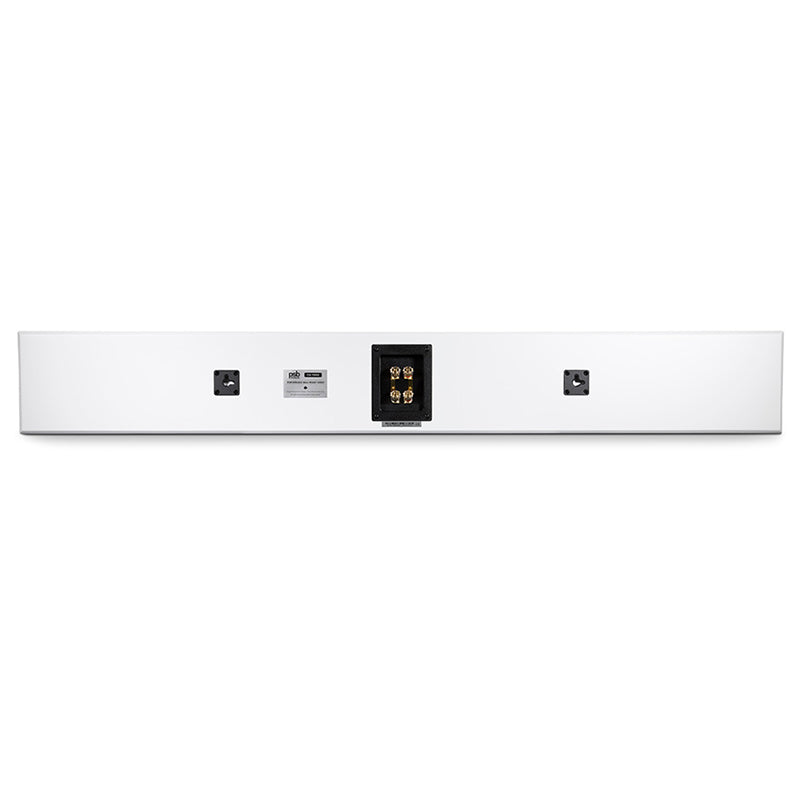

PSB PWM3 - On-Wall Speaker

Regular price R 27,490.00
Sold out

Ultra-slim, single-channel flat-panel speaker

As the flagship, the PWM3 embodies the best qualities of the Performance Wall Mount Series, while raising the bar in terms of power handling, bass extension, and sheer output. The custom-engineered driver complement and unique dual-ported cabinet allow the PWM3 to deliver incredible dynamics while maintaining a high degree of harmonic detail and smooth tonal balance. Equipped with a 1” titanium tweeter, dual 3” midrange drivers, and four active 4” woofers; the PWM is capable of filling large open concept spaces or dedicated theatres without strain.

  • PWM3 is an on-wall speaker that can be mounted vertically or horizontally (mount included)
  • Can be used for left, center, or right channel or as a surround speaker
  • Available in Satin White or Satin Black
  • Designed and voiced by the growing PSB design team mentored by PSB founder and speaker industry icon, Paul Barton
  • PSB PWM3 - On-Wall Speaker
  • PSB PWM3 - On-Wall Speaker

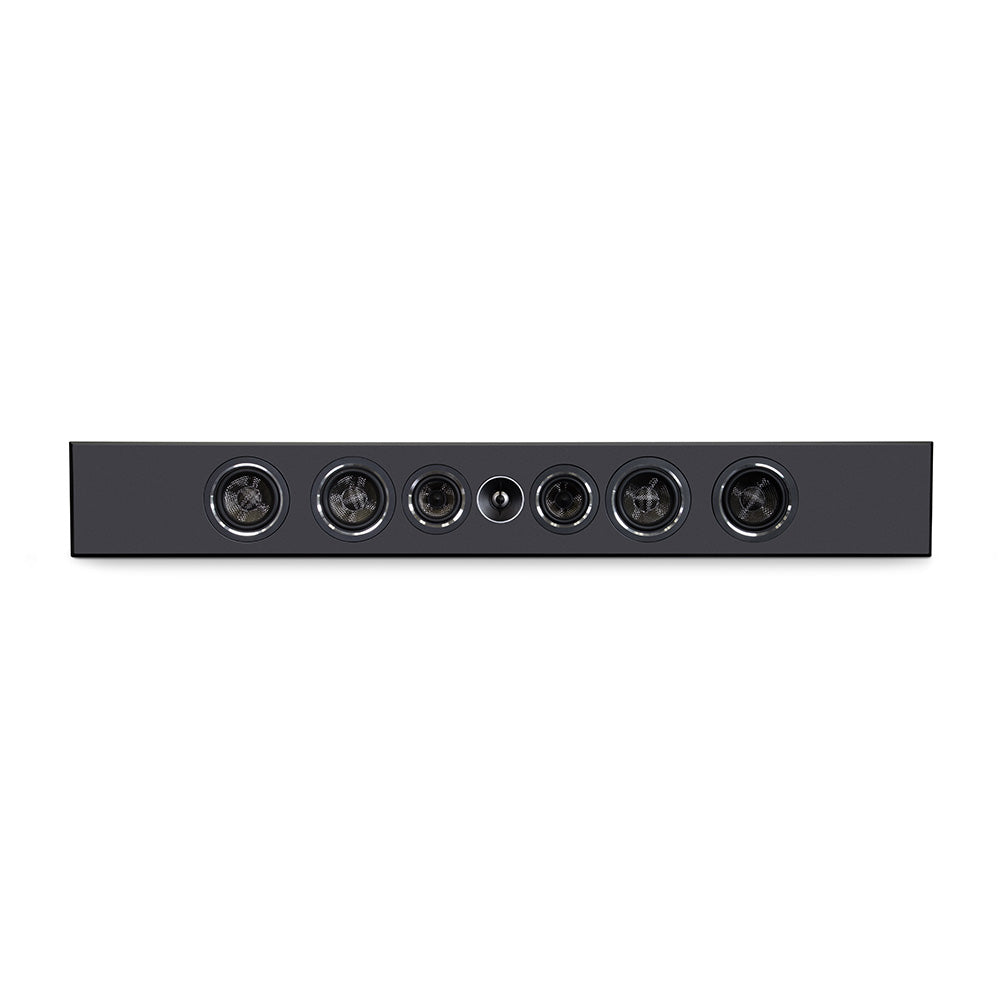

PSB - PWM3 - BLACK

PSB PWM3 - On-Wall Speaker
Ask a Question

E-CREDIT, NOW AVAILABLE
Backed by Merchant West, E-piphany's E-Credit offers finance on orders with a minimum value of R50 000. Learn More.

Merchant West Epiphany Finance

Product information

Warranty & Support
Manufacturer’s warranty can be requested from customer service. Click here to make a request to customer service.

Feedback
Would you like to tell us about a lower price? Please click here to provide feedback.

Product Specifications
Please refer to the below table for the most important specifications. You can also view the product description below the table for more details. Always feel free to contact our expert consultants by clicking here to find any additional information or to ensure that this product will work for you.

Product Description



Today’s home audio applications demand solutions that traditional designs are simply not able to fulfill. Regardless of the installation, PSB believes that the sound should never be compromised. PWM Series melds refined, elegant looks, versatile application, and unwavering performance.

The slim profile hugs the wall and maintains a minimal visual presence. Their clean and simple lines complement virtually any design aesthetic. Interior designers, architects, custom home builders, and system integrators will appreciate the understated elegance and highest performance levels offered by the Performance Wall Mount Series.

Newly developed drivers employing four-layer voice coils with powerful magnets and carbon fiber cones for exceptional detail, low distortion, and superior power handling. The new proprietary 1” titanium dome tweeter is ferrofluid cooled and features a Neodymium magnet for high sensitivity and power handling. A waveguide on the front of the tweeter helps match the response of the tweeter near the crossover point with the woofer for a seamless transition.

Whether as part of a complete on-wall system, a basic TV application or as an on-wall center channel solution for floor standing speakers; the PWM series delivers legendary PSB sonic performance coupled with aesthetics and install cues desired in today’s interior design.

Key Features:

  • Slim Profile premium On-Wall speaker system
  • 4 x 4” woofers with carbon fiber cones, rubber surrounds
  • 2 x 3” chambered midrange drivers with carbon fiber cones, rubber surrounds
  • 1” Titanium Dome Tweeter
  • Vertical or horizontal mounting options
  • Wall mount bracket included
  • LCR or for surround speaker application
  • Design and final voicing engineered by Paul Barton
  • Available in Satin White or Satin Black

SPECIFICATIONS

Sensitivity

Anechoic Chamber

86dB

Typical Listening Room

89dB

Frequency response

On Axis +/- 3db

60Hz-35kHz

LF Cutoff

35Hz

Impedance

Normal

8 Ohms

Minimum

6 Ohms

Recommended Amplifier Power

Tweeter (Nominal)

1″ (25mm)
Titanium Dome with Ferrofluid

Midrange (Nominal)

2x 3″ (75mm)
Carbon Fibre Cone Rubber Surround
Cast Basket

Woofer (Nominal)

4x 4″ (100mm)
Carbon Fibre Cone Rubber Surround
Cast Basket

Design Type

Bass Reflex

Construction

Cabinet

MDF

Grille Face

Acoustic Transparent Cloth

Frame

MDF

Size (W x H x D)

Net W

48” (1219mm)

Net H

6.5” (165mm)

Net D

3.38” (85mm)

Depth With Grill

3.5” (90mm)

Finish

Available Finishes

Satin Black, Satin White

Grille Type

Magnetic, Cloth Grille

Wall Bracket

Mount

Wall Mount included for Vertical and Horizontal Mounting Note: Bracket is not designed as ceiling mount
