The T1 EVO Phono aims to deliver true high-fidelity sound on a limited budget. Boasting premium materials, stylish aesthetics and a rich, lively sound, the extensive development process has ensured that there has been no compromise in the sound performance when achieving such an affordable price.
The stylish CNC-machined plinth, available in High Gloss Black, Satin White or Walnut finish, features no plastic parts and is carefully manufactured to ensure there are no hollow spaces inside, therefore avoiding unwanted vibrations within the chassis.
Carrying this philosophy through the design, the glass platter is also a heavy, zero-resonance design – again avoiding the flaws of plastic or lightweight steel alternatives. Finally, the purpose-chosen turntable feet also do a good job of isolating the T1 EVO from ambient vibrations around your hi-fi system.
Audiophile Design
In the T1 EVO Phono, the motor drives a belt, attached to a new bigger sub-platter, which is mounted into an ultra-precise 0.001mm main bearing with a hardened steel axle and brass bushing.
With its straight, 8.6” effective length and stiff aluminium construction, the one-piece tonearm also features low-friction bearings for absolute accuracy in use.

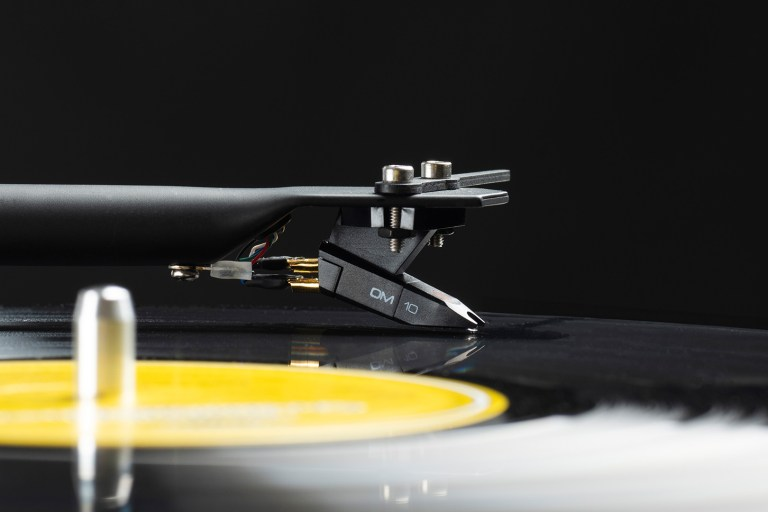

Supplied with an Ortofon OM 10 Moving Magnet cartridge, featuring an elliptical diamond stylus tip; this is a true hi-fi playback system with no corners cut.
Features

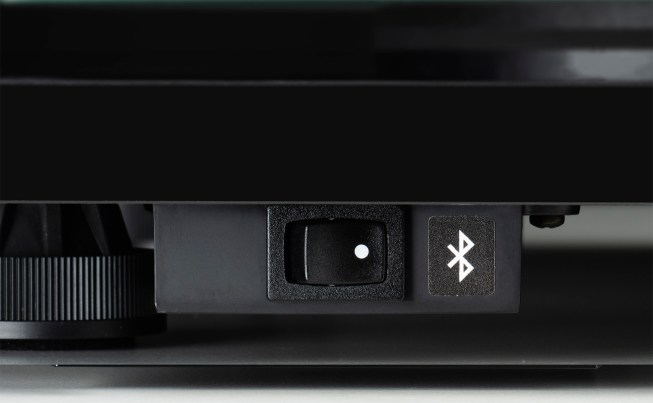

- With BT 5.0, aptX HD for wireless streaming
- Electronic speed change for all models
- Pre-adjusted Ortofon OM10 cartridge
- Anti-resonant sub-platter design
- Heavy 8mm, zero-resonance blasted-glass platter
- Precision CNC‘d heavy full chassis
- 8,6“ highly precise and light aluminium tonearm
- Low friction, vibration free tonearm bearing
- One-piece tonearm design with integrated headshell
- Low-capacitance Connect it Phono E RCA cable incl.
- Vibration absorbing feet
- Elegant dustcover with adjustable hinges

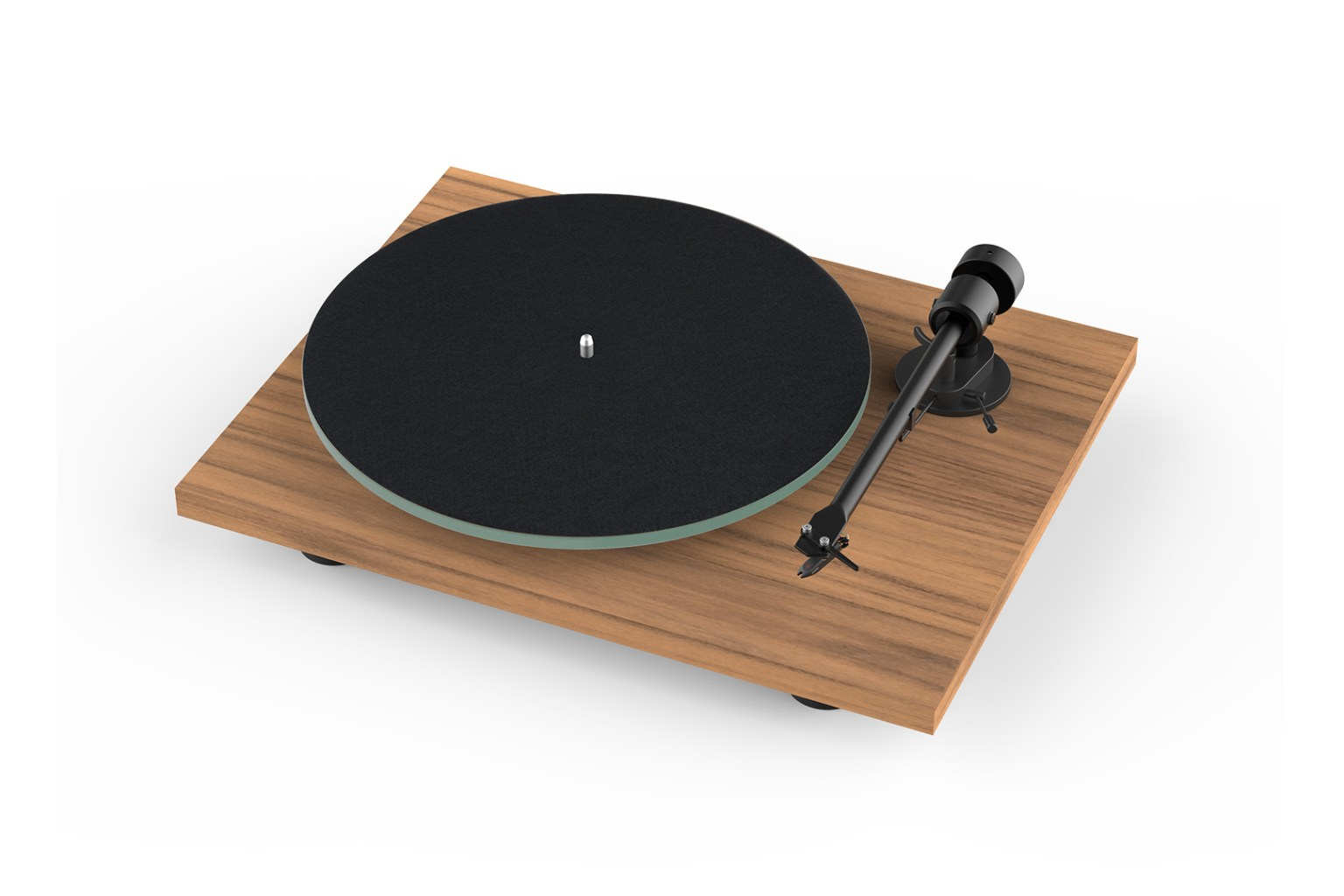

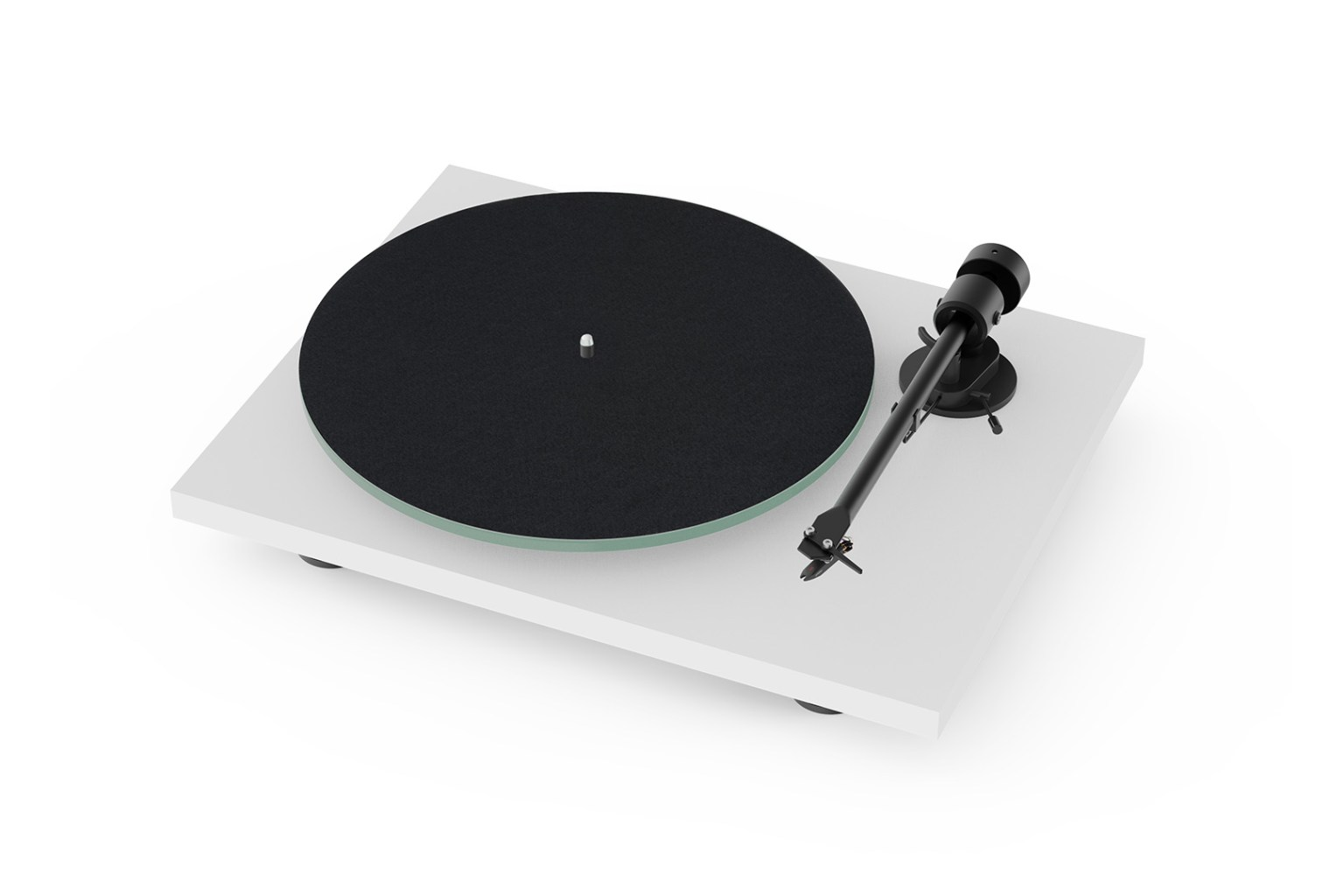

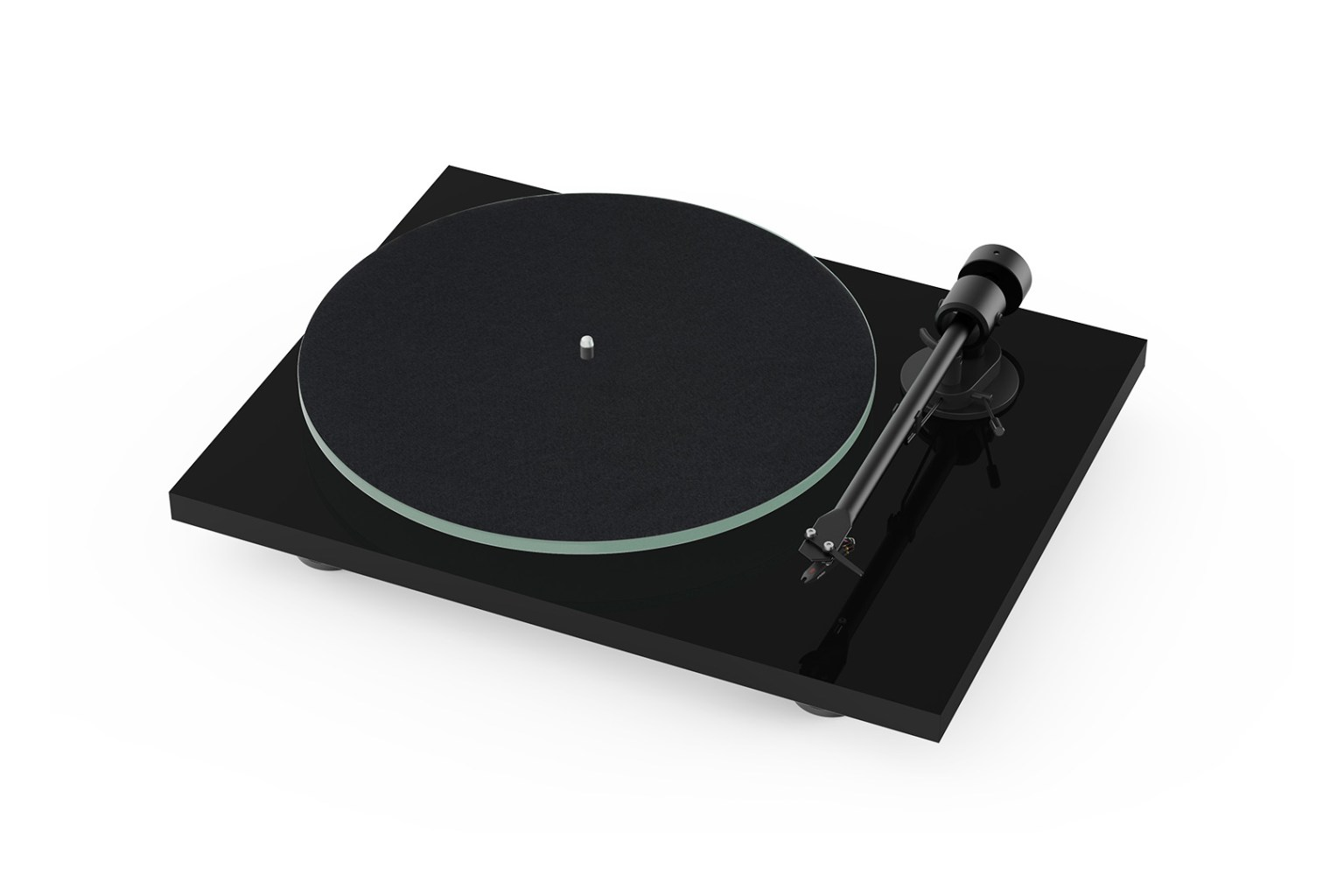

- Available in High-Gloss Black, Satin White and Walnut
- Hand-made in Europe
Technical Specifications
| Speed: | 33, 45 (electronic speed change) |
| Principle: | Belt drive |
| Speed variance: | 33: 0.7% 45: 0.6% |
| Wow & Flutter: | 33: 0.25% 45: 0.23% |
| Platter: | Heavy 8mm, blasted-glass platter with felt mat |
| Main bearing: | Stainless steel/brass |
| Signal to noise: | 65dB |
| Tonearm: | 8.6” aluminium |
| Effective arm length: | 218.5 mm |
| Overhang: | 22.0 mm |
| Effective tonearm mass: | 8.0 g |
| Counterweight for mass: | 5 - 10g (pre-mounted) |
| Tracking force range: | 0 - 50mN (17.5 mN pre-adjusted) |

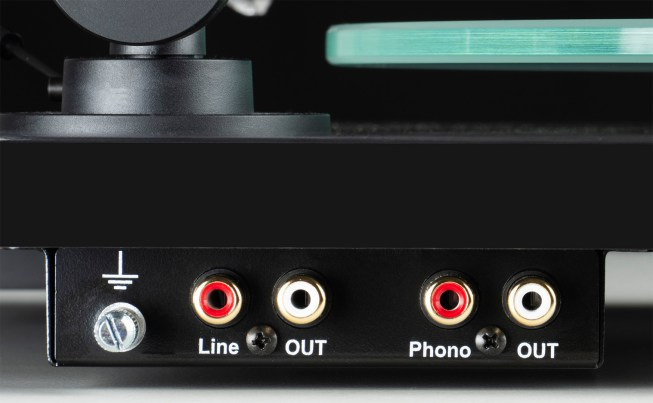

| Outputs: | RCA |
| Included accessories: | dustcover, feltmat, power supply, high-quality phono/line RCA cable |
| Power Supply: | 110 - 240V/50, 60Hz; 15 V DC 800mA |
| Power consumption: | 4.5 Watt max |
| Dimensions: | 415x100x335 mm (WxHxD) |
| Weight: | 3.8 kg net |
