Popular in the M Series, the D Series now feature built-in speaker profiles from members of AudioControl’s Sound PartnersTM program, offering DSP optimized speaker calibrations from a growing list of prominent loudspeaker manufacturers.
The Director Model D2800 has the benefit of operating either as a standalone DSP amplifier or as part of a 3rd party control system from companies including Crestron, Savant, RTI or Control 4.
Features
- Network DSP Amplifier With Volume Control
- 8 Channels x 100 Watts at 8 Ohms (All Channels Driven)
- 8 Channels x 200 Watts at 4 Ohms (All Channels Driven)
- Bridgeable to 400 Watts of Bridged Power
- Digital Signal Processing (DSP) Performance
- Built-In Speaker Optimization Profiles

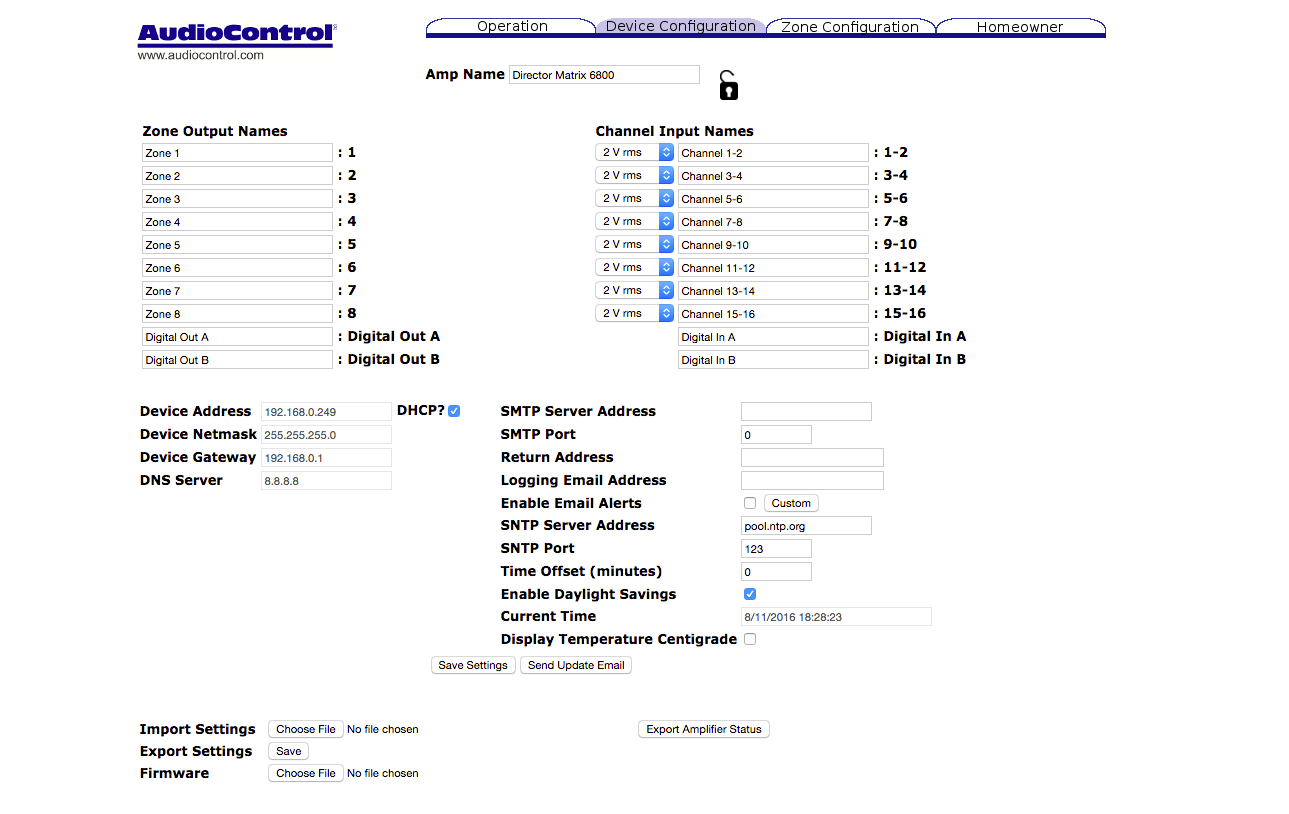

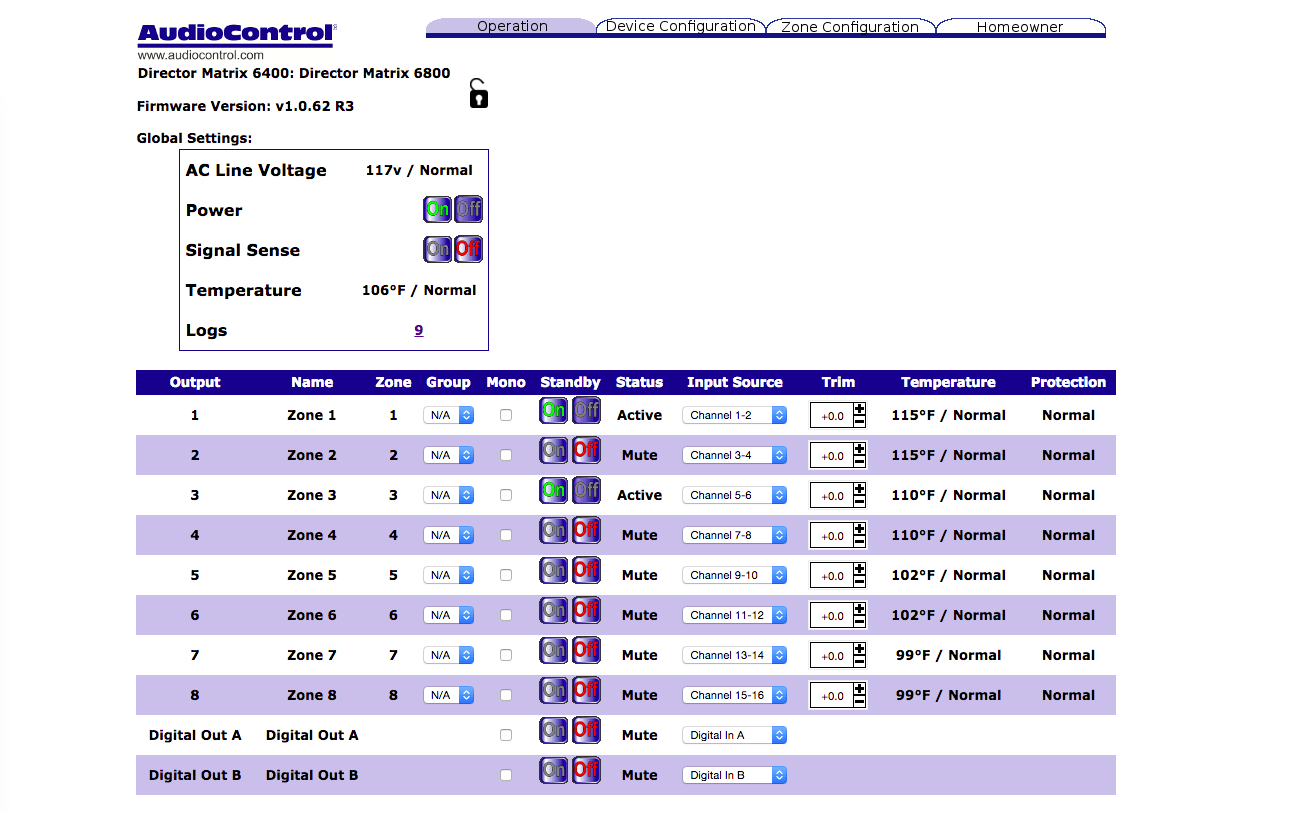

- Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control

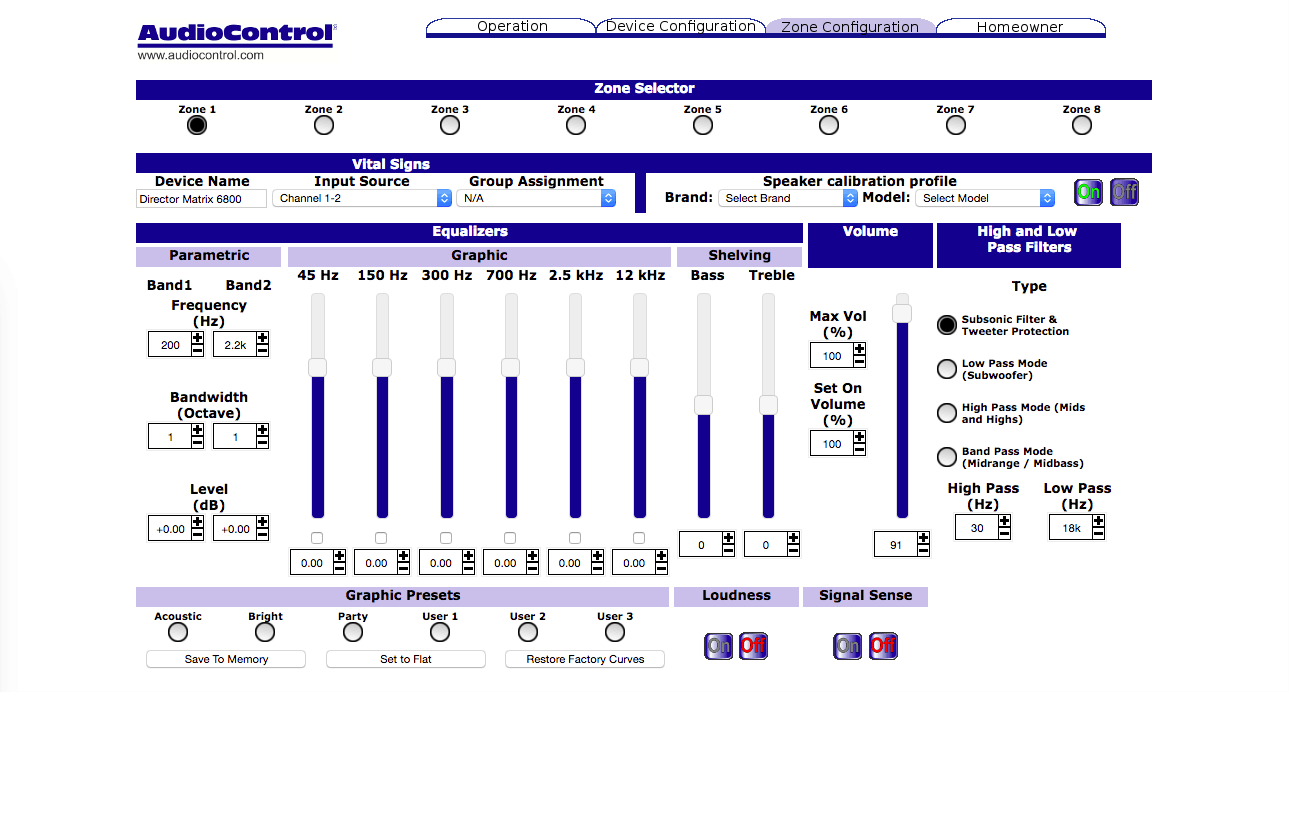

- Network Programmable Graphic & Parametric Equalization with User Memories
- Assignable Names for All Zones & Amplifier
- Digital Signal Sense
- Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
- AudioControl LightDrive Anti-Clipping Speaker Protection
- Local Inputs with Pass Thru / Loop Outputs
- Dual Digital/Analog Bus Inputs
- Compact 1U Rack Space (Includes Rack Mount Brackets)
- Home and Commercial Installations
Power and Control at your fingertips
The Director® D Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, local and bus inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.
*Refer to product gallery images
Speaker Optimization Profiles
AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The Director® D Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.
