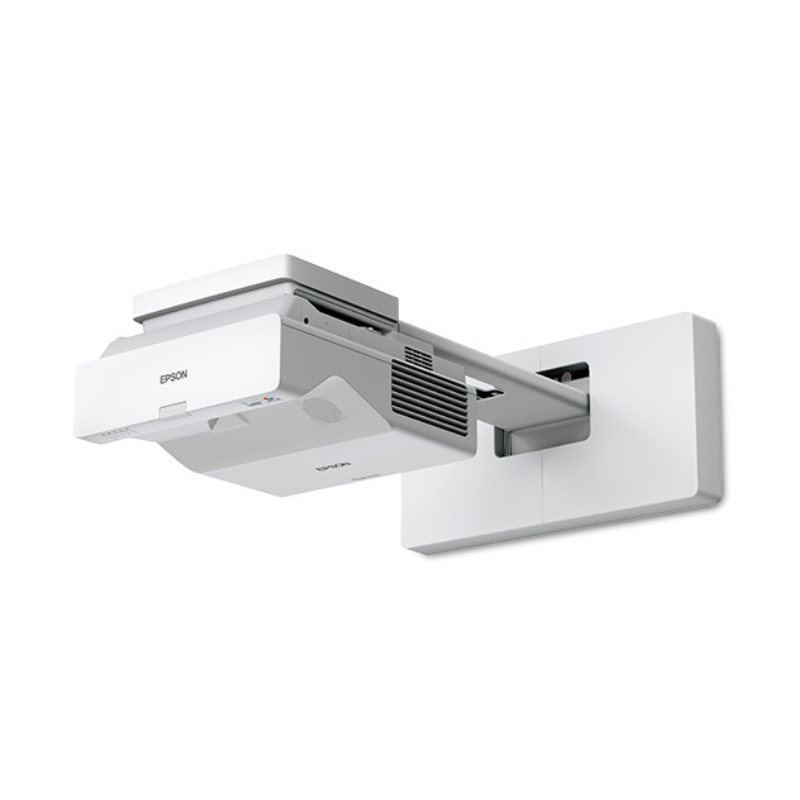

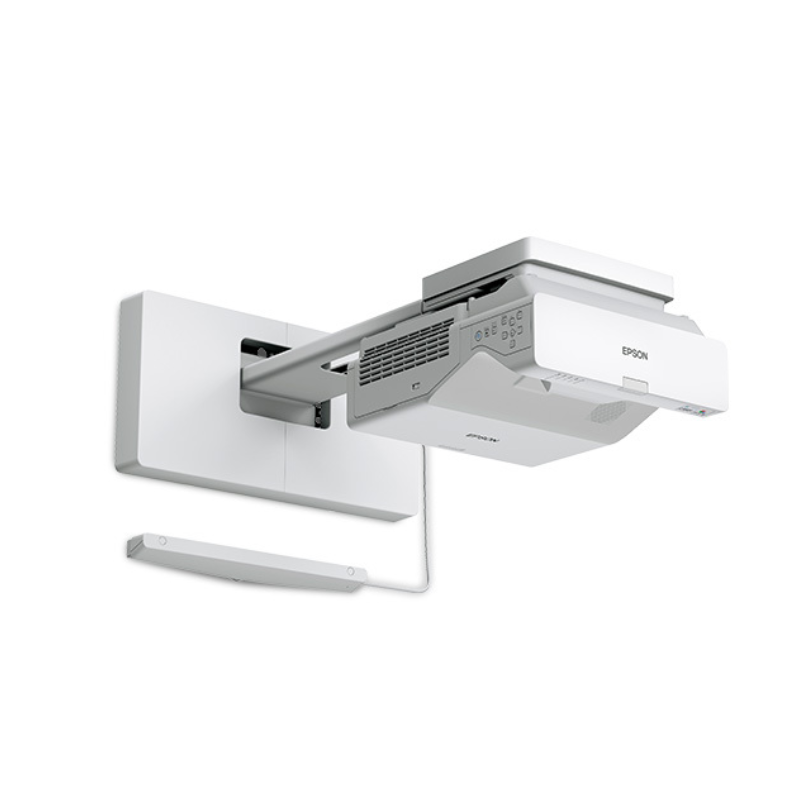

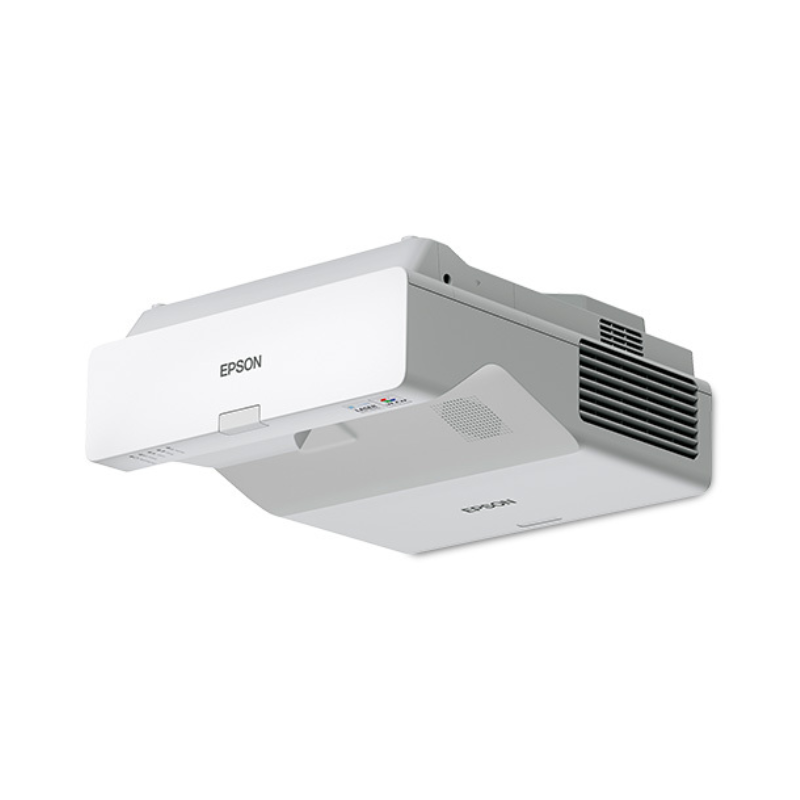

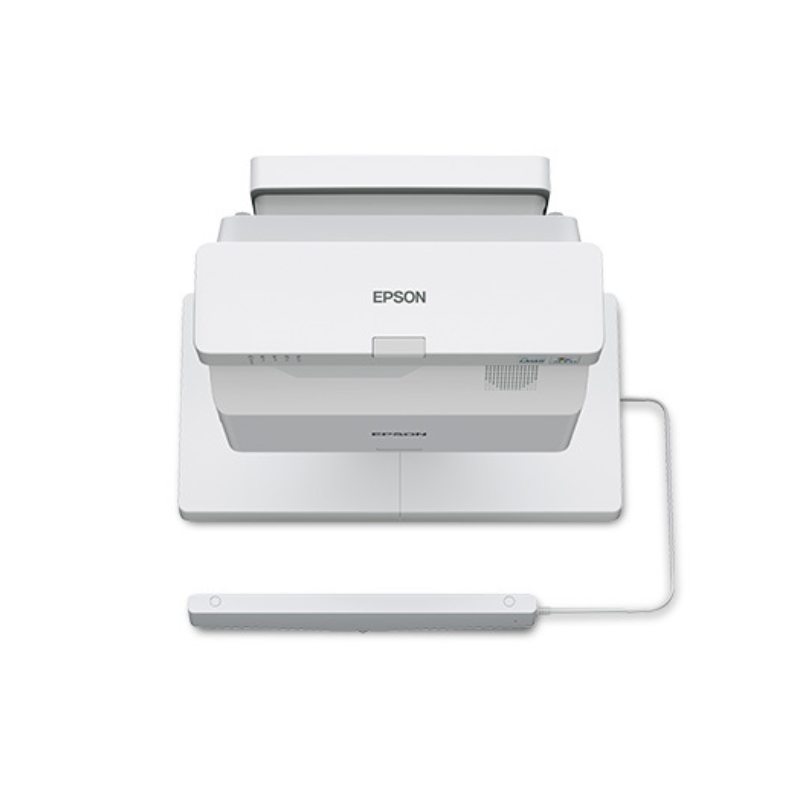

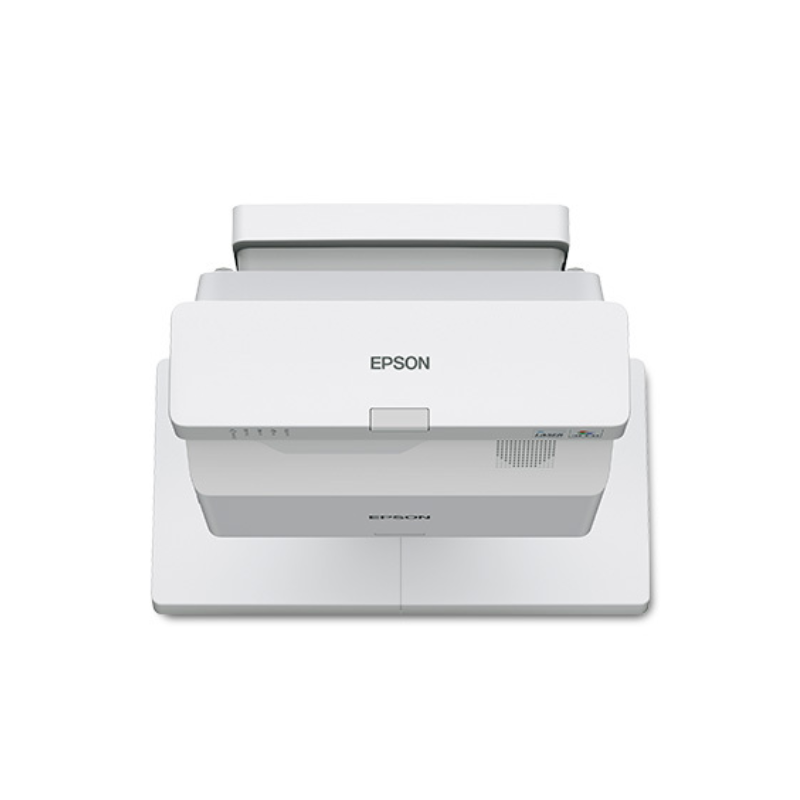

Lamp-free interactive display projects easy-to-read images for collaborative classrooms

Designed for ease of use in collaborative learning environments, BrightLink® ultra short throw displays simplify interactivity in the classroom by offering compatibility with frequently used software applications including Office 365® and Google Workspace™. Offering a high-quality 16:10 WXGA display up to 100", the BrightLink 760Wi interactive display delivers easy-to-read images that provides up to 85 percent more interactive space than a 75" flat panel—for a low cost per square inch. With 4,100 lumens of color and white brightness1 and proprietary 3-chip 3LCD technology, this display delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions from nearly anywhere in the classroom. It also includes a 20,000-hour, virtually maintenance-free laser light source2, so there are no lamps to purchase or replace—ever.

A convenient and seamless solution, the BrightLink 760Wi features wireless connectivity with casting capability from PCs, Mac® computers, Chromebooks, and Android™ and iOS® devices3, along with convenient split screen functionality4, making it easy for teachers and students to wirelessly display up to four screens simultaneously. With its unique ability to display and support interactivity on existing whiteboards, this dual-pen-enabled display has an optional touch function and delivers exceptional value by allowing teachers to retain valuable whiteboard space when the display is not in use.

Eco Features

• RoHS compliant
• Recyclable product10
• Epson America, Inc. is a SmartWay® Transport Partner11

Specifications

• Projection System: Epson® 3-chip 3LCD technology
• Projection Method: Front/rear/wall mount/table mount
• Driving Method: Epson Poly-Silicon TFT Active Matrix
• Pixel Number: 1,024,000 dots (1280 x 800) x 3

Brightness:

• Color Brightness: 4,100 lumens
• White Brightness: 4,100 lumens

Aspect Ratio:

• Native: 16:10 (WXGA)
• Supported: 4:3, 16:9

Resolution:

• Native Resolution: 1280 x 800 (WXGA)

Light Source:

• Type: Laser
• Light Source Life:
  • Up to 20,000 hours (Normal Mode)
  • Up to 30,000 hours (Extended Mode)

Image Size (Projection Distance):

• With ELPMB62 Mount:
  • 68" – 100" (15.4" – 23.6") 16:10

Keystone Correction (Manual):

• Horizontal: ±3 degrees
• Vertical: ±3 degrees

USB Plug ’n Play Compatibility:

• Mac OS®: 10.8/10.9/10.10/10.11/10.12/10.13/10.14/macOS® 10.15.x
• Windows®: Windows 7/Windows 8/Windows 10, Windows 11

Contrast Ratio:

• Up to 2,500,000:1

Color Reproduction:

• Up to 1.07 billion colors

Wireless Specifications:

• Supported Security Modes:
  • OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP
• Supported EAP Types:
  • PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
• Supported Speeds:
  • IEEE 802.11 b: 11 Mbps* (2.4 GHz)
  • IEEE 802.11 g: 54 Mbps* (2.4 GHz)
  • IEEE 802.11 n: 72.2 Mbps* (2.4 GHz)
  • IEEE 802.11 a: 54 Mbps* (5 GHz)
  • IEEE 802.11 n: 150 Mbps* (5 GHz)
  • IEEE 802.11 ac: 325 Mbps* (5 GHz)

* Maximum speed and range are achievable when used with the same Enhanced Mode technology. Actual data rates, features, and performance may vary depending on your computer system, the environment, and other factors.

Projection Lens:

• Type: Manual focus
• F-Number: 1.6
• Focal Length: 3.7 mm
• Throw Ratio Range: 0.27 – 0.37 (16:10)
• Zoom Ratio: Digital zoom 1.00 – 1.35x

Other Features:

• Speaker: 16 W monaural
• Operating Temperature: 41 ˚F to 104 ˚F (0 ˚C to 40 ˚C)
• Power Supply Voltage: 100 V – 240 V ±10%, 50/60 Hz
• Auto Power On: Signal Detection on HDMI®/Plug-In Detection (HDMI, USB, VGA 15-pin)
• Sleep Mode: Yes (with timer)

Power Consumption:

• Quiet Mode: 214 W
• Normal Mode: 277 W
• Standby (Communication On): 2.0 W
• Standby (Communication Off): 0.5 W

Fan Noise:

• Quiet Mode: 27 dB
• Normal Mode: 37 dB
