Versatility built In

Builds on the success of the multi-award-winning LUMIN P1 by packing as much of the componentry and flexibility as possible into a new compact chassis.

Main features

Five inputs including USB, HDMI, SPDIF and Analogue
HDMI with stereo input + AV Passthrough & ARC
Dual DAC ES9028PRO
DSD512 & PCM384
Femto Clock System with precision FPGA distribution
New internal toroidal linear power supply
Dual Network with Optical Fibre Network support
Leedh Processing lossless volume control

5 digital & analogue inputs
Versatile enough for any audio or video stereo system:

USB
Industry-leading XMOS USB audio controller
Native DSD512 and PCM384 compatible
Windows 10 & Mac OS compatibility
Analogue
Stereo analogue input
LEEDH volume processing
Passthrough function for home cinema integration with custom naming functionaity
SPDIF Optical & RCA
DoP64 / 192 kHz 24-bit compatible
TOSLINK & SPDIF (RCA)
HDMI
HDMI 2.0 Specification compatible
Supports 2.0 PCM audio decoding
HDR, Dolby Vision, Dolby Atmos, DTS passthrough
ARC compatible output

X1 Heritage
LUMIN P1 Mini takes many flagship features from the outstanding LUMIN X1:

Fibre Networking
A world-first on X1 and now featured on many LUMIN models, optical networking provides complete isolation from network noise. Additionally, dual network ports mean that you can connect LUMIN L2 or a NAS directly to P1 Mini.

Femto Clocking System
P1 Mini includes dual Femto crystal oscillators and our proprietary FPGA clock distribution system first debuted in X1.

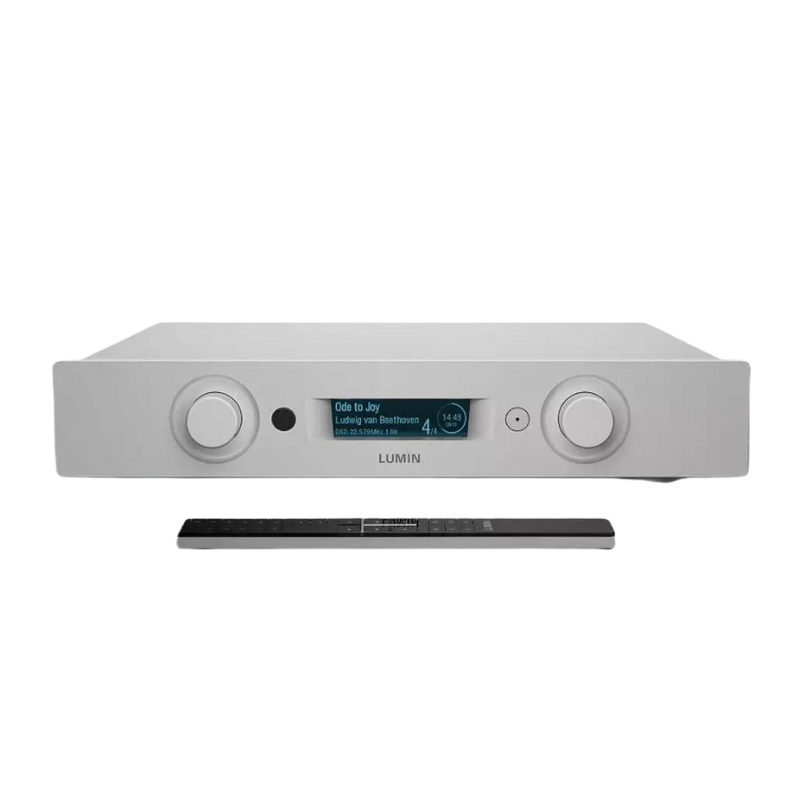

Included Remote Control
A tactile infrared remote control allows easy change of input, volume adjustment, playlist navigation and more.

The exceptionally well-constructed acrylic and zinc LUMIN remote is made in Austria and is entirely Roon Ready.

LUMIN P1 Mini has a built-in infrared receiver and is compatible with universal remote controls, phones and automation systems.

Specifications

Network Playback:

• Supported Formats:
  • Up to DSD512
  • Up to 384 kHz, 16–32-bit, Stereo
  • MQA Full Decoding

Upsampling Rates & Bit Depths:

• DSD256 upsampling option for all files
• PCM 384kHz upsampling option for all files

Digital Input:

• USB:
  • USB Audio Class 2 Compatible
  • WINDOWS 10 (Release 1703 or above) / Mac OSX or above
  • DoP 128 support
  • PCM 44.1–384 kHz, 16 / 32-bit, Stereo
• OPTICAL/SPDIF:
  • PCM 44.1 kHz–192 kHz, 16–24-bit
  • DSD64 (DoP64, DSD over PCM)
• HDMI:
  • PCM 2.0 Audio support
  • 4K Video Passthrough

Digital Output:

• USB:
  • Native DSD512 support
  • PCM 44.1–384 kHz, 16–32-bit, Stereo
• BNC SPDIF:
  • PCM 44.1 kHz–192 kHz, 16–24-bit
  • DSD64 (DoP64, DSD over PCM)
• HDMI: (HDMI Passthrough and ARC support)
  • PCM 2.0 Audio support
  • 4K Video Passthrough
  • ARC (Audio Return Channel) support

Analogue Input:

• RCA Stereo: x1

Analog Output:

• Dual ESS SABRE32 ES9028Pro DAC chips
• Fully balanced layout with high-quality components
• Femto Clock System with precision FPGA distribution

Optical Network:

• Industry-standard Gigabit SFP
• 1000Base-T Gigabit Ethernet
• Adapter may be needed for your particular switch/cables
• Can be used simultaneously with RJ45 (e.g., connect one to a router and one to LUMIN L1 or NAS)

Power Supply:

• Internal toroidal linear
• Low-noise linear regulator

Physical:

• Finish Options:
  • Black anodized aluminium
  • Raw anodized aluminium
• Dimensions: 400mm (W) x 314mm (D) x 77mm (H)
• Weight: 7kg
