Technology
- Quick and easy installation
- High-performance C-CAM tweeter and driver technology
- Robust solid sealed, high density polypropylene enclosure - UV rated.

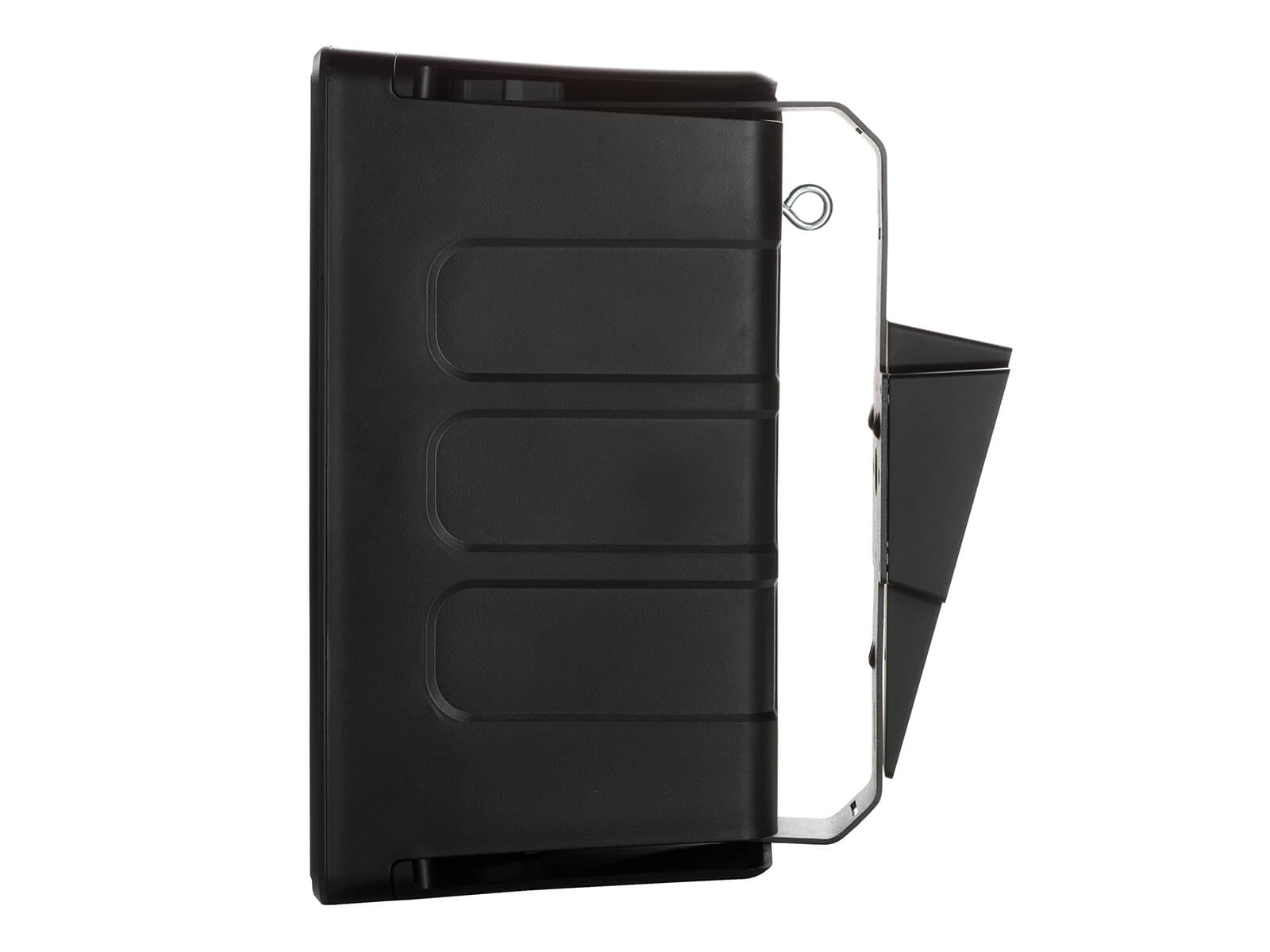

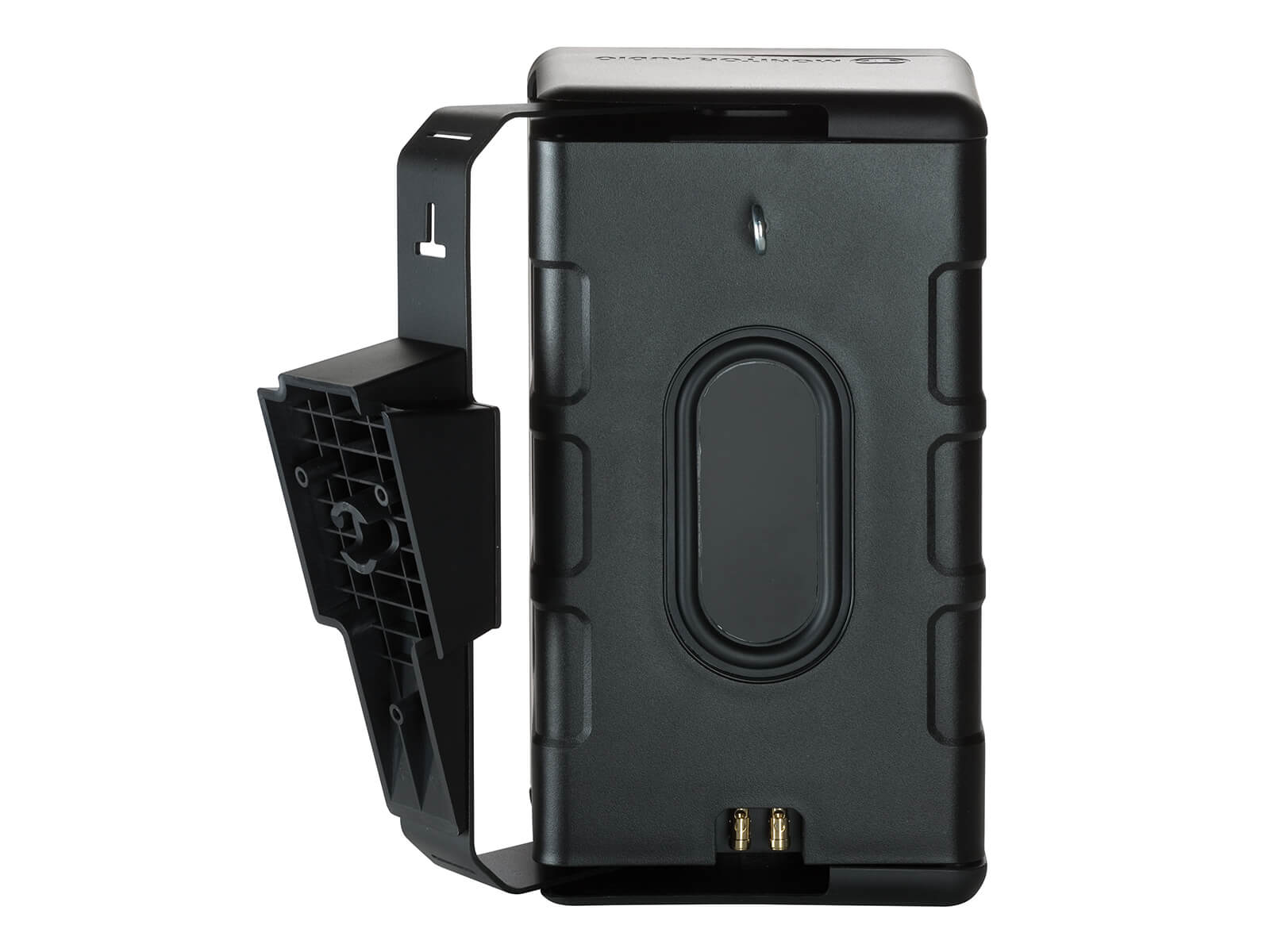

- Full installation flexibility: 175º rotational bracket, (it also features angled sections and screw holes to provide corner fixing.)
- 15º angled wedge supplied for additional bracket versatility
- Anchor point for security chain attachment
- ABR (Auxiliary Bass Radiator) for added low-frequency punch
- Aluminium grilles prevent rust
- *Textured white and black finish, paintable to suit décor (paint mask supplied)
- Rotational ‘M' logo to align with portrait or landscape positions.
SPECIFICATIONS
Frequency Response
50 Hz — 30 kHz
Sensitivity (1W@1M)
89.5 dB
Nominal Impedance
8 ohms
Maximum SPL
111.1 dBa
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
20 — 120 W
Drivers
1 x 203 mm (8") C-CAM bass/ mid-range driver
1 x 25 mm (1") C-CAM Gold Dome tweeter
External Dimensions (H x W x D)
405 x 230 x 221 mm (1515/16 x 91/16 x 811/16")
Overall Depth (Including Bracket)
272.5 mm (103/4")
Total Bracket Pivot Angle
87.5 degrees (from central position)
Fixed Angled Block (Portrait)
15 degrees
Connection
Gold plated 'push' type terminals
Environmental Protection Rating
IP55
Colour / Finish
White/Black
Weight (packaged)
6.53 kg (14 lb 6 oz)
Sold As
Pair
