Description

Flagship Model Builds On Brand’s Remarkable Success with Advanced Features, Cutting-Edge Technology and High Power.

With the employment of the new Purifi Eigentakt™ (self-clocking) Hybrid Digital amplifier technology, the M33 follows NAD’s long-standing tradition in identifying and developing cutting-edge amplification technology. With a minimum of 200W per channel on tap, the result is lifelike performance, exemplified by ultra-low distortion and noise. The measured performance is remarkable in that it exceeds the capability of even the most sensitive and sophisticated test equipment available.

According to Cas Ooostvogel, NAD’s Product Manager, “The NAD Masters M33 has created tremendous excitement since its preview at CES. As the first amplifier to utilize Purifi Eigentakt™ amplifier technology, its performance must be heard to be appreciated. The M33 is a true state-of-the-art audiophile amplifier in the traditional sense yet with a distinct difference: It fully caters to the modern world where the majority of music is delivered over the internet with an entire catalogue of recorded music readily available at your fingertips. This is obviously a wonderful convenience. Then, the M33’s ability to distribute that music in a multi-room audio system just adds that much more enjoyment, simplicity and value.“

BLUOS HIGH-RES MUSIC STREAMING

Unusual in a class of products often associated with complexity is the M33’s intuitive operation, courtesy of the 7” inch touchscreen colour display combined with BluOS. NAD considers it the most advanced network streaming and multi-room operating system available.

Part of a growing ecosystem of compatible products, BluOS tightly integrates hardware and software for exceptional user experience. The only true wireless High-Resolution multi-room system available today, BluOS supports the new standard for High Res streaming, Master Quality Authenticated (MQA). BluOS also supports over 20 free and paid subscription services as well as supporting locally stored music libraries.

With BluOS, the M33 retains all the audiophile features and further adds a range of facilities that will expand its capabilities yet simplifies ease-of-use at the same time. Operable with the BluOS app, the supplied remote control or through hands-free control with any Amazon Alexa or Google Assistant device, the M33’s front panel doesn’t actually need to be touched. To expand the multi-room locations, adding additional rooms is both easy and affordable.

DIRAC LIVE ROOM CORRECTION ON BOARD

Experts agree that room acoustics are the weakest link in most sound systems with room reflections deteriorating tonal balance and dynamics. Dirac, one of the most highly regarded Room Correction systems available, not only adjusts for frequency response but unlike other room correction systems, it also optimises the impulse response. By optimizing the speaker/room interface, music sounds more natural and lifelike. Dirac comes as standard on the M33 with corrections possible up to 500Hz, and an upgrade to the full bandwidth is available for a modest fee.

Supplied with the M33 is a precision microphone to measure the room at and around the listening position so your system can be precisely calibrated for optimum performance. Even the most sophisticated loudspeakers can be markedly improved using Dirac calibration.

Each of the 5 Dirac memory profiles can store a unique room measurement (think of the different acoustics with curtains open or closed, different listening position, for instance), or different frequency target curves to suit a particular musical taste or genre. The M33 also supports Dirac’s advanced ‘Bass Control’ feature with two independent subwoofer outputs.*

MDC (MODULAR DESIGN CONSTRUCTION) – OFFERS FLEXIBILITY AND LONG-TERM VALUE

In its standard form, the M33 is very complete with a wide range of in/outputs, BluOS, Dirac, HDMI eARC and more already fully integrated. It will meet the requirements of the most demanding users. To minimize the risk of future obsolescence, the M33 comes with two MDC slots that allow for further expansion. NAD introduced the MDC platform well over a decade ago and allowed updating products with new technologies which didn’t even exist at the time of introduction.

MUSIC EVERYWHERE AND IN HIGH-RES

Besides multi-room, another compelling feature of BluOS is its multi-room and high-res streaming capabilities. The latter with full MQA decoding support from a local NAS or shared drive but also from internet streaming audio services which offer high-res content such as Tidal, Deezer, Qobuz and others. Music services such as Spotify, Amazon Music, Slacker, TuneIn, nugs.net and many others are also supported.

CONNECTION AND WIRELESS FLEXIBILITY

Whether looking to connect digital or analogue sources, the M33 comes well equipped to accommodate for all of these: 5 digital inputs and 3 analogue inputs, including XLR Balanced, MM and MC phono.

Around back, the rear panel hosts two sets of speaker outputs capable of bi-wiring and a stereo Subwoofer Output with a fully configurable Digital Crossover. Airplay 2 and Bluetooth AptX-HD allow for local wireless streaming from a phone or tablet.

PHONO AND HEADPHONES ARE NOT FORGOTTEN

The M33 has a high-quality MM/MC Phono Input that rivals specialized outboard units. Accurate RIAA equalization, a clever phase cancelling infrasonic filter, and a huge overload margin combine to bring out the best in LPs.

Furthermore, headphone enthusiasts will delight at the sound of the discrete headphone amplifier, which is able to drive even planar and high impedance studio phones. With high voltage and low output impedance, headphones will sound their best. For those who wish to enjoy their headphones but not be tethered to a cable, the integrated Bluetooth AptX-HD module makes it simple to possible to enjoy wireless headphones. too.

ATTRACTIVE DESIGN WITH OUTSTANDING ERGONOMICS

The all-alloy casework is elegant yet practical. The single control knob for volume is supplemented by a colour TFT touchscreen display. Rigid panels with magnetic iso-point feet provide a solid foundation for the multi-layer circuit boards and intricate internal construction. The M33 employs a completely modern and fresh take on the traditional stereo amplifier, with features and performance from the future.

SMART HOME INTEGRATION MADE EASY

BluOS provides hands-free control with full integration of any Amazon Alexa or Google Assistant device. Through Airplay 2, control is also possible with Siri. Considerable effort has been spent to make the M33 fully compatible with all the leading smart home systems from leading companies like Apple, Crestron, Control4, Lutron, KNX and many others. The M33 is also compatible with the Roon music platform.*

This means that along with lighting, shades, HVAC, and security, the integrator or user can seamlessly control the BluOS multi-room music system from a common interface. All integrations are certified for reliable operation. The custom BluOS Apps for iOS and Android tablets and phones, as well as desktop control from Windows and Apple OS are available free-of-charge and are updated regularly.


M33 KEY FEATURES:

• BluOS Streaming DAC Amplifier
• HybridDigital™ Purifi Eigentact™ Amplifier Technology
• Continuous Power: 200W into 8/4 Ohms
• 32-BIT/384kHz ESS Sabre DAC
• Dirac Live Room Correction
• Colour TFT touch display
• BluOS multi-room Integration
• 2 x MDC Slots for Future Expansion
• Wireless control with AirPlay 2 and aptX HD Bluetooth Integration
• Comprehensive digital and analogue connectivity including HDMI eARC
• Integrates seamlessly with leading smart home control systems

*Some features will be available via a future software update.


SPECIFICATIONS

AMPLIFIER SECTION

Rated output power (ref. 20 Hz-20 kHz at rated THD, both channels driven)
>200 W into 8 ohms >380 W into 4 ohms
Rated output power, Bridge mode (ref. 20 Hz – 20 kHz at rated THD)
>700 W into 8 ohms
Input sensitivity
865 mV (ref. 200W 8 ohms, Volume maximum)
THD (20 Hz – 20 kHz)
<0.003 % (1W to 200 W, 8 ohms and 4 ohms) Signal-to-Noise ratio >98 dB (A-weighted, ref. 1 W out in 8 ohms)
>120 dB (A-weighted, ref. 200 W out in 8 ohms)
Clipping power
>210 W (0.1 % THD 1 kHz 8 ohms)
IHF dynamic power
8 ohms: 260 W
4 ohms: 520 W
Peak output current
≥25 A (in 1 ohm, 1 ms)
Damping factor
>800 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency response
±0.2 dB (20 Hz -20 kHz)
-3 dB at 60 kHz

PREAMPLIFIER SPECIFICATIONS

LINE IN

Input Impedance (r and c)
47kΩ/180pF
Input Sensitivity
280mV (ref. 500mV out, Volume Maximum)
Maximum input level 20Hz-20Khz
2 Vrms/8 Vrms (low sensitivity mode)
Tone Controls
Treble: ±10dB at 10kHz Bass: ±10dB at 100Hz
Max Output Signal
4Vrms (ref. 0.1% THD)

PREOUT

Maximum output level
3.9 Vrms (ref. 0.1% THD)
Signal-to-Noise ratio
>120 dB (A-weighted, ref. 2 V out)
Output impedance
100 ohms

SUBOUT

Maximum output level
1.1 Vrms (ref. 0.1 % THD 100Hz)
Signal-to-Noise ratio
>102 dB (20 Hz-20 kHz, ref. 1V out)
THD+N
<0.005 % (refer 1.1 V 20 Hz-200 Hz) Output impedance 680 ohms PHONO Input sensitivity MM: 1.2 mV MC: 100 µV Input impedance (R and C) MM: 56 kohms/100 pF MC: 100 ohms/280 pF Signal to noise ratio (ref. 2 V Preout A-weighted) MM: >92 dB
MC: >76 dB
THD+N (ref 2V Preout 1kHz)
MM: <0.003 %
MC: <0.02 % RIAA response accuracy MM/MC ±0.2 dB 20 Hz -20 kHz HEADPHONES Output Impedance 2.2ohms Output power >100 mW/32 ohms

BluOS SECTION

AUDIO

Supported audio file format*
MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
Supported high- resolution audio file format*
FLAC, MQA, WAV, AIFF
Sampling rate
up to 192 kHz
Bit depths
16 – 24

CONNECTIVITY

Network connectivity
Gigabit Ethernet RJ45
Wi-Fi 5
Supported network file share protocol
Server Message Block (SMB)
USB
1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals
Bluetooth quality
aptX HD 5.0
Bluetooth connectivity
Two-Way (Receive and Headphone modes)

USER INTERFACE

Supported operating system**
Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions**
Mobile Application
Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops
Front panel
7-inch full colour touch screen
Remote control
HTRM 2 remote control

For supported music service and partners please see bluos.net
POWER CONSUMPTION

Auto Standby ON
<0.5W
Idle Power
<40W

DIMENSIONS AND WEIGHT

Dimensions WxHxD
435 x 133 x 396 mm (17 1/8 x 5 1/4 x 15 5/8”)
Net Weight
9.7kg (21.4lb)
Shipping Weight
18.4kg (40.6 lb)


NAD - M33 - BLACK

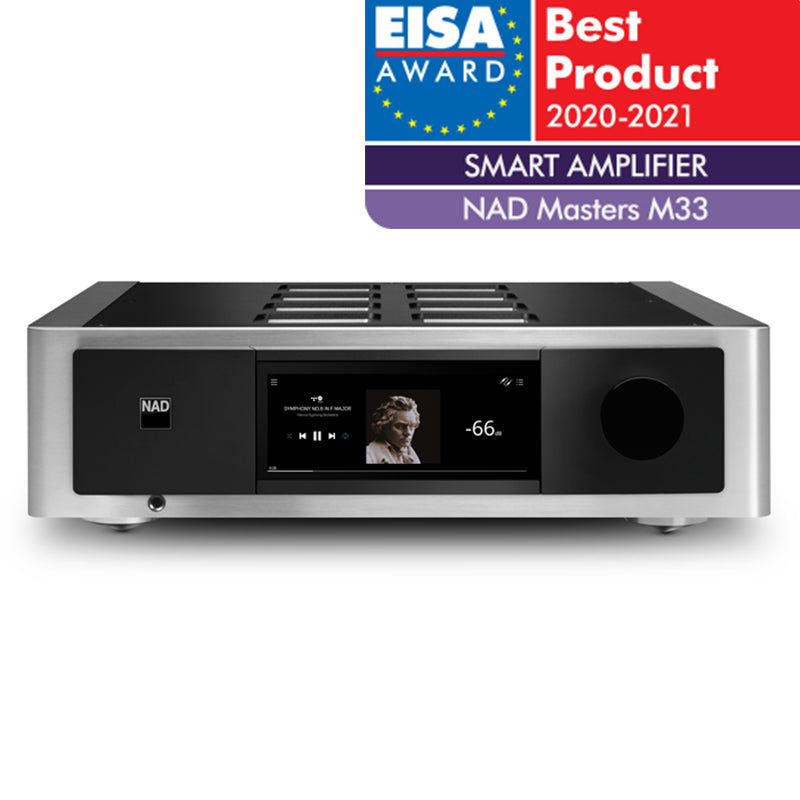

NAD M33 - Masters BluOS Streaming DAC Amplifier

Regular price R 129,900.00

In its simplest form, the M33 BluOS™ enabled DAC/amplifier is an ultra-high-performance streaming amplifier with superb audiophile sound. As a BluOS enabled component, the M33 can be combined with other players in a BluOS ecosystem of wirelessly networked music players throughout the home for an Read more

  • NAD M33 - Masters BluOS Streaming DAC Amplifier

E-CREDIT, NOW AVAILABLE
E-Credit finance on orders with a minimum value of R50 000. Learn More.

Merchant West Epiphany Finance

Flagship Model Builds On Brand’s Remarkable Success with Advanced Features, Cutting-Edge Technology and High Power.

With the employment of the new Purifi Eigentakt™ (self-clocking) Hybrid Digital amplifier technology, the M33 follows NAD’s long-standing tradition in identifying and developing cutting-edge amplification technology. With a minimum of 200W per channel on tap, the result is lifelike performance, exemplified by ultra-low distortion and noise. The measured performance is remarkable in that it exceeds the capability of even the most sensitive and sophisticated test equipment available.

According to Cas Ooostvogel, NAD’s Product Manager, “The NAD Masters M33 has created tremendous excitement since its preview at CES. As the first amplifier to utilize Purifi Eigentakt™ amplifier technology, its performance must be heard to be appreciated. The M33 is a true state-of-the-art audiophile amplifier in the traditional sense yet with a distinct difference: It fully caters to the modern world where the majority of music is delivered over the internet with an entire catalogue of recorded music readily available at your fingertips. This is obviously a wonderful convenience. Then, the M33’s ability to distribute that music in a multi-room audio system just adds that much more enjoyment, simplicity and value.“

BLUOS HIGH-RES MUSIC STREAMING

Unusual in a class of products often associated with complexity is the M33’s intuitive operation, courtesy of the 7” inch touchscreen colour display combined with BluOS. NAD considers it the most advanced network streaming and multi-room operating system available.

Part of a growing ecosystem of compatible products, BluOS tightly integrates hardware and software for exceptional user experience. The only true wireless High-Resolution multi-room system available today, BluOS supports the new standard for High Res streaming, Master Quality Authenticated (MQA). BluOS also supports over 20 free and paid subscription services as well as supporting locally stored music libraries.

With BluOS, the M33 retains all the audiophile features and further adds a range of facilities that will expand its capabilities yet simplifies ease-of-use at the same time. Operable with the BluOS app, the supplied remote control or through hands-free control with any Amazon Alexa or Google Assistant device, the M33’s front panel doesn’t actually need to be touched. To expand the multi-room locations, adding additional rooms is both easy and affordable.

DIRAC LIVE ROOM CORRECTION ON BOARD

Experts agree that room acoustics are the weakest link in most sound systems with room reflections deteriorating tonal balance and dynamics. Dirac, one of the most highly regarded Room Correction systems available, not only adjusts for frequency response but unlike other room correction systems, it also optimises the impulse response. By optimizing the speaker/room interface, music sounds more natural and lifelike. Dirac comes as standard on the M33 with corrections possible up to 500Hz, and an upgrade to the full bandwidth is available for a modest fee.

Supplied with the M33 is a precision microphone to measure the room at and around the listening position so your system can be precisely calibrated for optimum performance. Even the most sophisticated loudspeakers can be markedly improved using Dirac calibration.

Each of the 5 Dirac memory profiles can store a unique room measurement (think of the different acoustics with curtains open or closed, different listening position, for instance), or different frequency target curves to suit a particular musical taste or genre. The M33 also supports Dirac’s advanced ‘Bass Control’ feature with two independent subwoofer outputs.*

MDC (MODULAR DESIGN CONSTRUCTION) – OFFERS FLEXIBILITY AND LONG-TERM VALUE

In its standard form, the M33 is very complete with a wide range of in/outputs, BluOS, Dirac, HDMI eARC and more already fully integrated. It will meet the requirements of the most demanding users. To minimize the risk of future obsolescence, the M33 comes with two MDC slots that allow for further expansion. NAD introduced the MDC platform well over a decade ago and allowed updating products with new technologies which didn’t even exist at the time of introduction.

MUSIC EVERYWHERE AND IN HIGH-RES

Besides multi-room, another compelling feature of BluOS is its multi-room and high-res streaming capabilities. The latter with full MQA decoding support from a local NAS or shared drive but also from internet streaming audio services which offer high-res content such as Tidal, Deezer, Qobuz and others. Music services such as Spotify, Amazon Music, Slacker, TuneIn, nugs.net and many others are also supported.

CONNECTION AND WIRELESS FLEXIBILITY

Whether looking to connect digital or analogue sources, the M33 comes well equipped to accommodate for all of these: 5 digital inputs and 3 analogue inputs, including XLR Balanced, MM and MC phono.

Around back, the rear panel hosts two sets of speaker outputs capable of bi-wiring and a stereo Subwoofer Output with a fully configurable Digital Crossover. Airplay 2 and Bluetooth AptX-HD allow for local wireless streaming from a phone or tablet.

PHONO AND HEADPHONES ARE NOT FORGOTTEN

The M33 has a high-quality MM/MC Phono Input that rivals specialized outboard units. Accurate RIAA equalization, a clever phase cancelling infrasonic filter, and a huge overload margin combine to bring out the best in LPs.

Furthermore, headphone enthusiasts will delight at the sound of the discrete headphone amplifier, which is able to drive even planar and high impedance studio phones. With high voltage and low output impedance, headphones will sound their best. For those who wish to enjoy their headphones but not be tethered to a cable, the integrated Bluetooth AptX-HD module makes it simple to possible to enjoy wireless headphones. too.

ATTRACTIVE DESIGN WITH OUTSTANDING ERGONOMICS

The all-alloy casework is elegant yet practical. The single control knob for volume is supplemented by a colour TFT touchscreen display. Rigid panels with magnetic iso-point feet provide a solid foundation for the multi-layer circuit boards and intricate internal construction. The M33 employs a completely modern and fresh take on the traditional stereo amplifier, with features and performance from the future.

SMART HOME INTEGRATION MADE EASY

BluOS provides hands-free control with full integration of any Amazon Alexa or Google Assistant device. Through Airplay 2, control is also possible with Siri. Considerable effort has been spent to make the M33 fully compatible with all the leading smart home systems from leading companies like Apple, Crestron, Control4, Lutron, KNX and many others. The M33 is also compatible with the Roon music platform.*

This means that along with lighting, shades, HVAC, and security, the integrator or user can seamlessly control the BluOS multi-room music system from a common interface. All integrations are certified for reliable operation. The custom BluOS Apps for iOS and Android tablets and phones, as well as desktop control from Windows and Apple OS are available free-of-charge and are updated regularly.


M33 KEY FEATURES:

• BluOS Streaming DAC Amplifier
• HybridDigital™ Purifi Eigentact™ Amplifier Technology
• Continuous Power: 200W into 8/4 Ohms
• 32-BIT/384kHz ESS Sabre DAC
• Dirac Live Room Correction
• Colour TFT touch display
• BluOS multi-room Integration
• 2 x MDC Slots for Future Expansion
• Wireless control with AirPlay 2 and aptX HD Bluetooth Integration
• Comprehensive digital and analogue connectivity including HDMI eARC
• Integrates seamlessly with leading smart home control systems

*Some features will be available via a future software update.


SPECIFICATIONS

AMPLIFIER SECTION

Rated output power (ref. 20 Hz-20 kHz at rated THD, both channels driven)
>200 W into 8 ohms >380 W into 4 ohms
Rated output power, Bridge mode (ref. 20 Hz – 20 kHz at rated THD)
>700 W into 8 ohms
Input sensitivity
865 mV (ref. 200W 8 ohms, Volume maximum)
THD (20 Hz – 20 kHz)
<0.003 % (1W to 200 W, 8 ohms and 4 ohms) Signal-to-Noise ratio >98 dB (A-weighted, ref. 1 W out in 8 ohms)
>120 dB (A-weighted, ref. 200 W out in 8 ohms)
Clipping power
>210 W (0.1 % THD 1 kHz 8 ohms)
IHF dynamic power
8 ohms: 260 W
4 ohms: 520 W
Peak output current
≥25 A (in 1 ohm, 1 ms)
Damping factor
>800 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency response
±0.2 dB (20 Hz -20 kHz)
-3 dB at 60 kHz

PREAMPLIFIER SPECIFICATIONS

LINE IN

Input Impedance (r and c)
47kΩ/180pF
Input Sensitivity
280mV (ref. 500mV out, Volume Maximum)
Maximum input level 20Hz-20Khz
2 Vrms/8 Vrms (low sensitivity mode)
Tone Controls
Treble: ±10dB at 10kHz Bass: ±10dB at 100Hz
Max Output Signal
4Vrms (ref. 0.1% THD)

PREOUT

Maximum output level
3.9 Vrms (ref. 0.1% THD)
Signal-to-Noise ratio
>120 dB (A-weighted, ref. 2 V out)
Output impedance
100 ohms

SUBOUT

Maximum output level
1.1 Vrms (ref. 0.1 % THD 100Hz)
Signal-to-Noise ratio
>102 dB (20 Hz-20 kHz, ref. 1V out)
THD+N
<0.005 % (refer 1.1 V 20 Hz-200 Hz) Output impedance 680 ohms PHONO Input sensitivity MM: 1.2 mV MC: 100 µV Input impedance (R and C) MM: 56 kohms/100 pF MC: 100 ohms/280 pF Signal to noise ratio (ref. 2 V Preout A-weighted) MM: >92 dB
MC: >76 dB
THD+N (ref 2V Preout 1kHz)
MM: <0.003 %
MC: <0.02 % RIAA response accuracy MM/MC ±0.2 dB 20 Hz -20 kHz HEADPHONES Output Impedance 2.2ohms Output power >100 mW/32 ohms

BluOS SECTION

AUDIO

Supported audio file format*
MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
Supported high- resolution audio file format*
FLAC, MQA, WAV, AIFF
Sampling rate
up to 192 kHz
Bit depths
16 – 24

CONNECTIVITY

Network connectivity
Gigabit Ethernet RJ45
Wi-Fi 5
Supported network file share protocol
Server Message Block (SMB)
USB
1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals
Bluetooth quality
aptX HD 5.0
Bluetooth connectivity
Two-Way (Receive and Headphone modes)

USER INTERFACE

Supported operating system**
Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions**
Mobile Application
Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops
Front panel
7-inch full colour touch screen
Remote control
HTRM 2 remote control

For supported music service and partners please see bluos.net
POWER CONSUMPTION

Auto Standby ON
<0.5W
Idle Power
<40W

DIMENSIONS AND WEIGHT

Dimensions WxHxD
435 x 133 x 396 mm (17 1/8 x 5 1/4 x 15 5/8”)
Net Weight
9.7kg (21.4lb)
Shipping Weight
18.4kg (40.6 lb)
