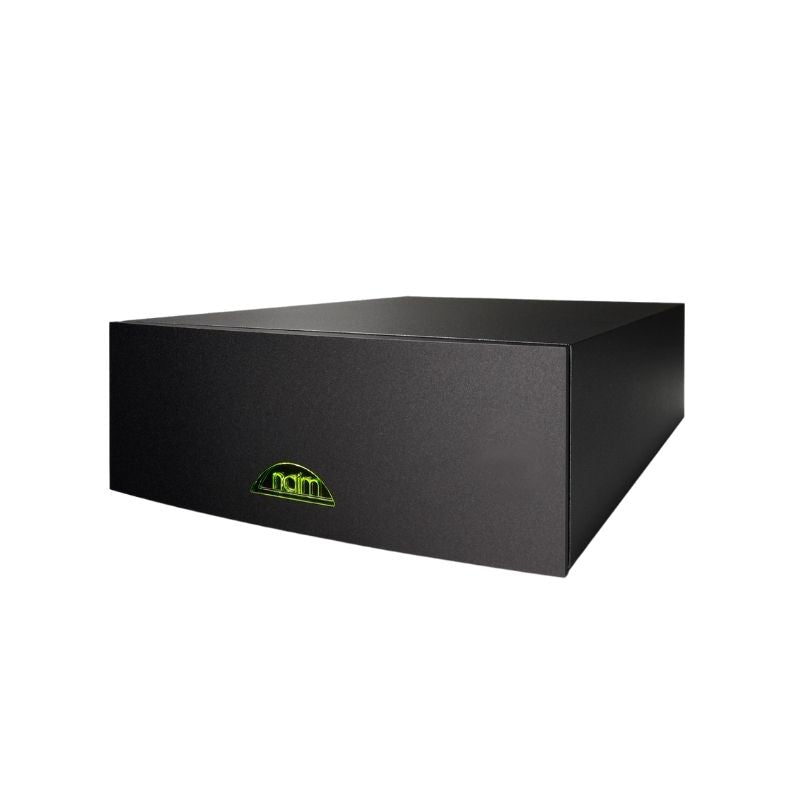

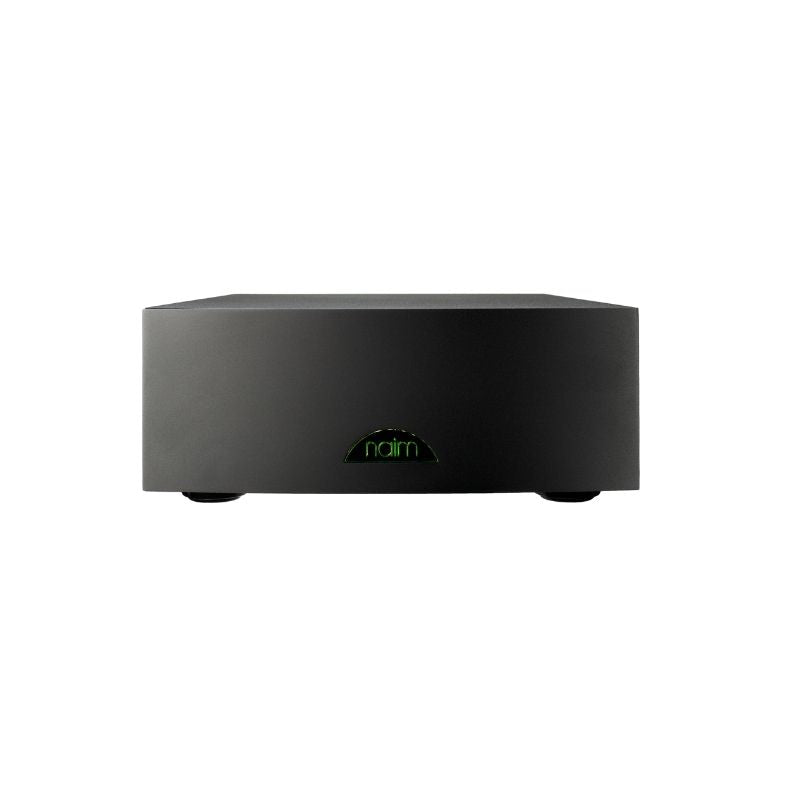

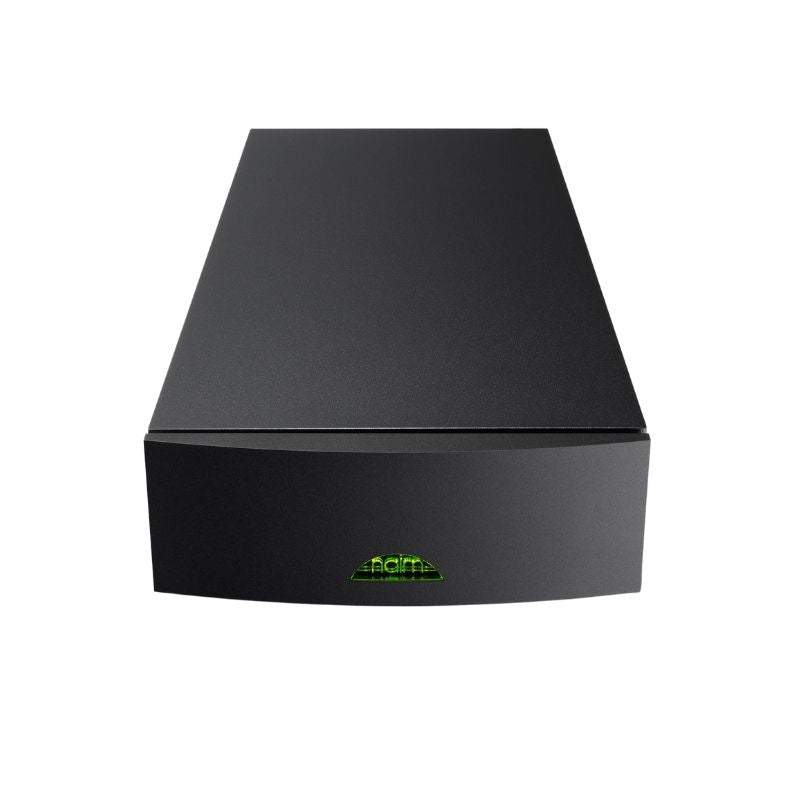

Naim SuperLine - Phono Stage Preamplifier

Regular price R 80,990.00

Vinyl replay makes a huge contribution to the enjoyment of recorded music. At its best, vinyl has a uniquely engaging and musical quality, and wi

Read more

NAIM - SUPERLINE - BLACK

Naim SuperLine - Phono Stage Preamplifier
Ask a Question

Verified Reviews for This Product

Read what our customers had to say about this product:

Product Description



Features
  • RCA and BNC inputs
  • Moving coil only, with cartridge impedance matching adjustment (20 different load combinations possible)
  • Suspension system for delicate electronics as used in 500 Series
  • 24V supply voltage from NaimUniti 2, NAIT XS 2, SUPERNAIT 2, Hi-Cap-DR, Nait XS-3 & Supernait 3, Naim Audio preamplifier (except NAC-N 172 XS), FlatCap XS, HiCap or SuperCap required
  • Bead-blasted, black anodised front panel

Technology & Craft

The heart of the SuperLine is a new, two-stage single-ended Class A discrete amplifier with part-passive RIAA filtering that runs off 25 internally regulated power supplies and features the transistor "quiet room" thermal isolation technique originally developed for the NAP 500 power amplifier. Environmental isolation is also ensured by the SuperLine's massive sub-chassis and high-Q spring suspension system - used here for the first time on a phono amplifier.

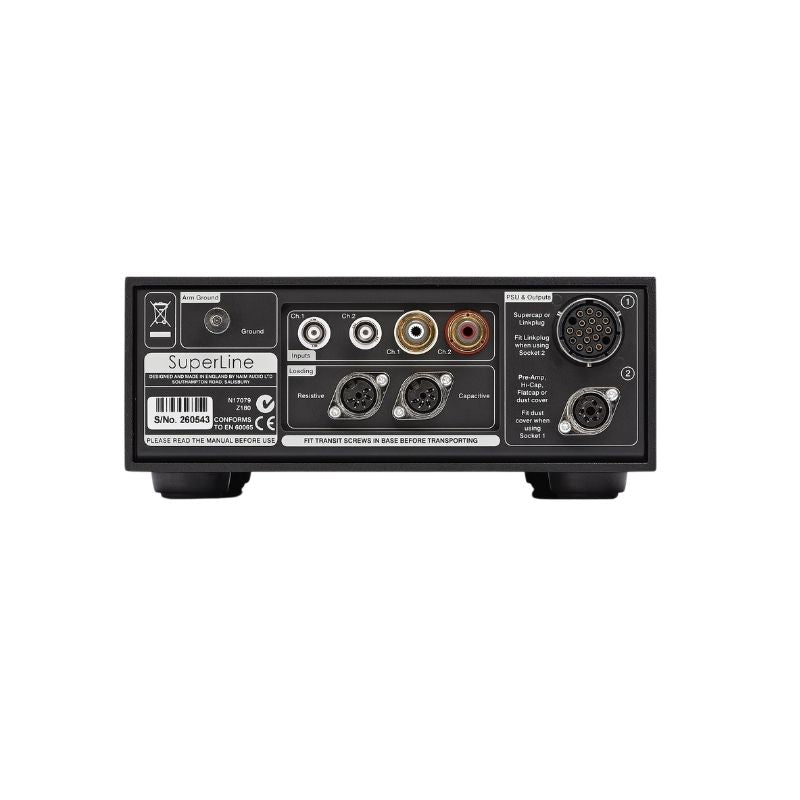

Duplicate phono and BNC sockets provide input versatility, and cartridge impedance matching adjustment is provided by four resistive and three capacitive load plugs. In combination with the SuperLine's internal input load, twenty different standard load combinations are possible

The SuperLine is also available in a lower gain model, SuperLine E. The SuperLine E is identical to the standard SuperLine except that it has been designed for use with cartridges that have a higher output voltage than most popular moving coils: for example, high output moving coils.

Audio Inputs
Other Inputs2 x 5-pin DIN for loading plugs
Analogue InputBNC, RCA
Input Sensitivity100μV - 500μV, SuperLine E: 200μV - 1mV
Audio Outputs
Crosstalk>80dB (20Hz - 20kHz)
THD + N<0.005% (500μV at 1kHz)
Signal-to-Noise Ratio82dB ref 500μV input, 0μ(A-weighted), SuperLine E: 78dB ref 500μV input, 0μ (A-weighted)
Frequency Response10Hz to >200kHz -3dB
Gain64dB at 1kHz, SuperLine E: 58dB at 1kHz
Finish
CaseBlack powder coated
FrontBead blasted and black anodised
Phono Specific
Input Load Options10kΩ, 1k, 500Ω, 220Ω, 100Ω, 100pF, 1nF, 5.6nF, 10nF
Input Overload5mV rms (1kHz), SuperLine E: 10mV RMS (1kHz)
High Pass Filter10Hz
RIAA Accuracy±0.1dB (20Hz - 20kHz)
Physical
Shipping Weight9 kg
Shipping Dimensions210 x 280 x 410 mm
Weight7.7 kg
Dimensions (HxWxD)87 x 207 x 314 mm
Power
Power Supply OptionsNaimUniti, NAIT XS, SuperNait, 152XS, 202, 282, 252, 552, FlatCap XS, HiCap, SuperCap
Supply Voltage24V
Supplied with
Supplied withLoad Plug
"}]
