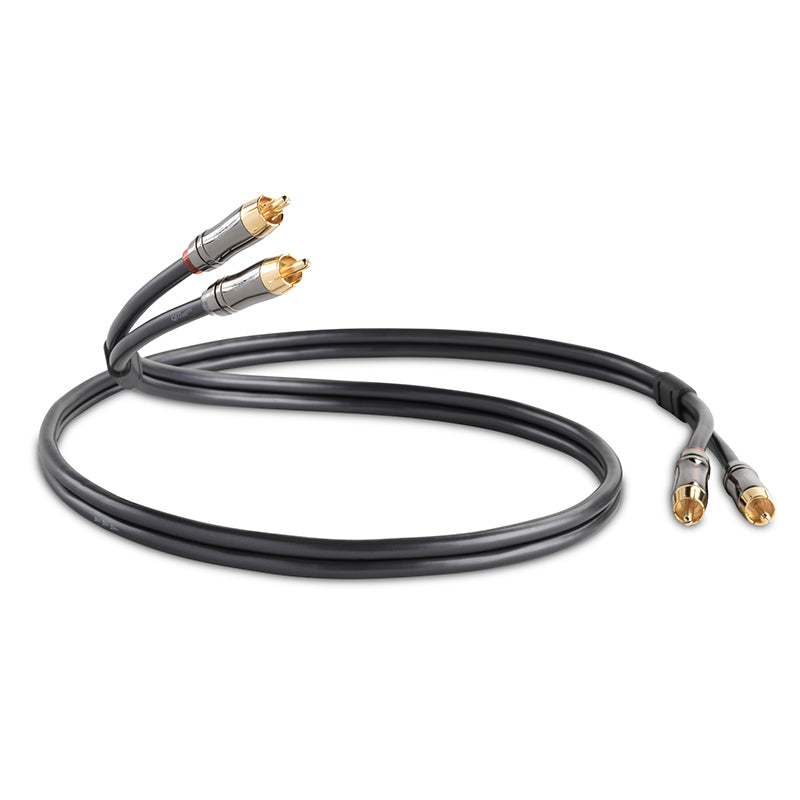

Performance Audio Graphite
The multi-award-winning Performance range presents the Performance Audio analogue interconnect.
Performance Audio utilises design concepts from the high-end Reference range to optimise audio performance when connecting your CD player, DAC, or Tuner to your amplifier or receiver. These include quasi-balanced geometry, low capacitance dielectric materials and 24k gold plated RCA plugs. All QED cables are covered by a lifetime guarantee.
FEATURES AND BENEFITS
99.999% Oxygen Free Copper conductors
FEATURES AND BENEFITS
Low-density polyethylene dielectric
Ergonomically sculptured zinc-plated alloy barrel
Quasi-balanced geometry
Electrostatic Screen
Provides immunity from external high voltage noise signals. Only connected at the source equipment end hence the directionality arrows on the cable jacket.
24k gold plated phono plugs
Because gold does not tarnish it provides a lasting low resistance contact
SPECIFICATIONS
99.999% Oxygen Free Copper (OFC) conductors with LDPE dielectric
Quasi-balanced twisted pair geometry
Al/Mylar wrap provides 100% electrostatic shield structure
OFC drain wire completes the electrostatic screening
24k Gold plated QED 6 leaf RCA plugs
Capacitance: 115 pF/m
Inductance: 0.74 μH/m
Loop resistance: 0.160 Ω/m
Dissipation Factor: 0.0012
QED Lifetime Guarantee
WHAT THIS CABLE IS USED FOR
CONNECT YOUR: - YOUR
DVD player - Reciever
CD Player - AV Amplifier
Tuner
