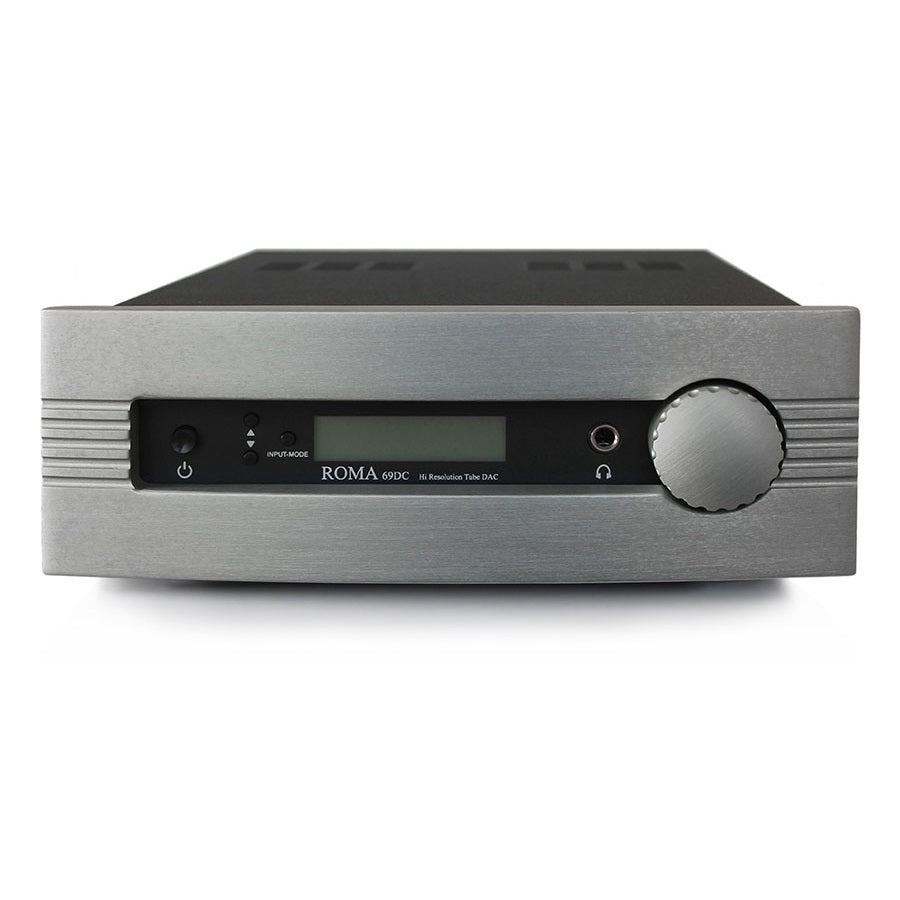

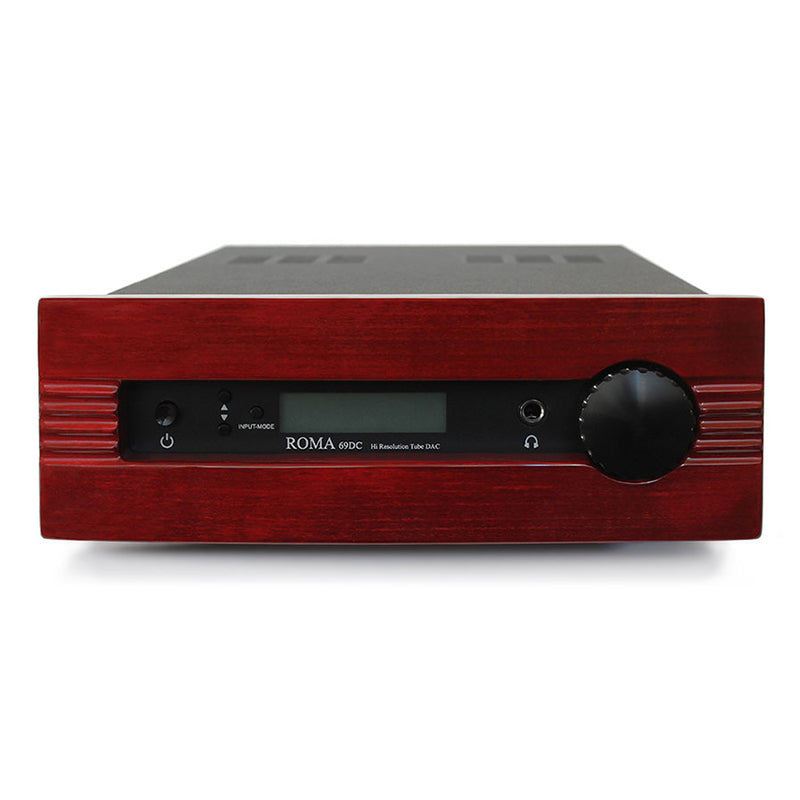

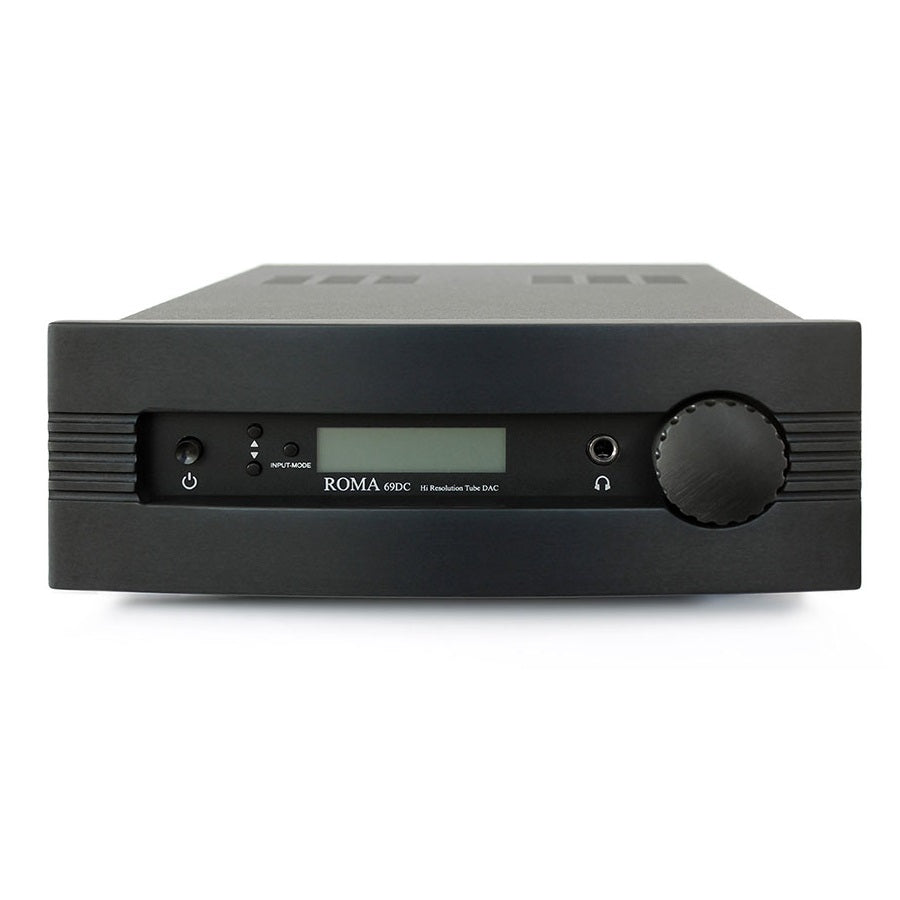

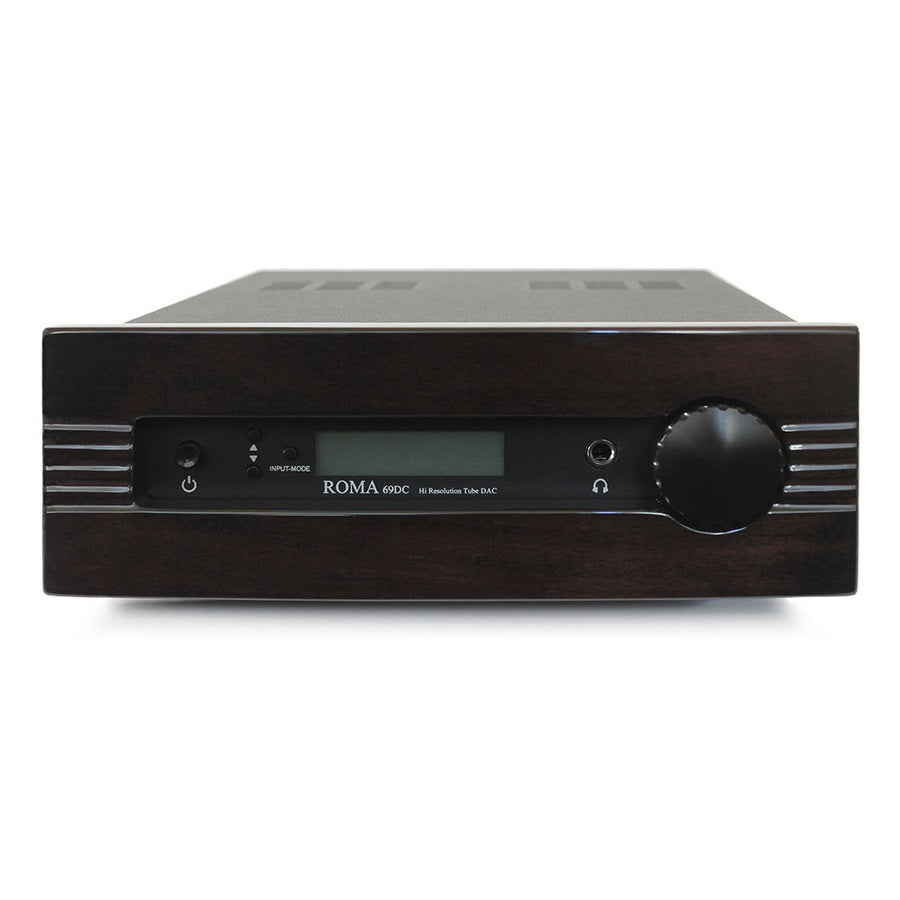

Synthesis Roma 69DC High Resolution Tube DAC

Gallery
Description

Description

The Roma 69DC has USB "B" type, DSD 5,6MHz, and optical input. 32Bit of resolution gives you a fantastic sound stage and beautiful sound reproduction.

Using an ECC88/6DJ8 on the output stage as differential amplifier for a perfect matching with the Dac's output Asahi Kasei AK4495S, obtaining a very low output impedance and extremely large bandwidth. Particular attention has been dedicated to the headphone output. Using a high-fidelity driver, we obtained an incredibly natural sound performance, the sound stage is simply perfect!

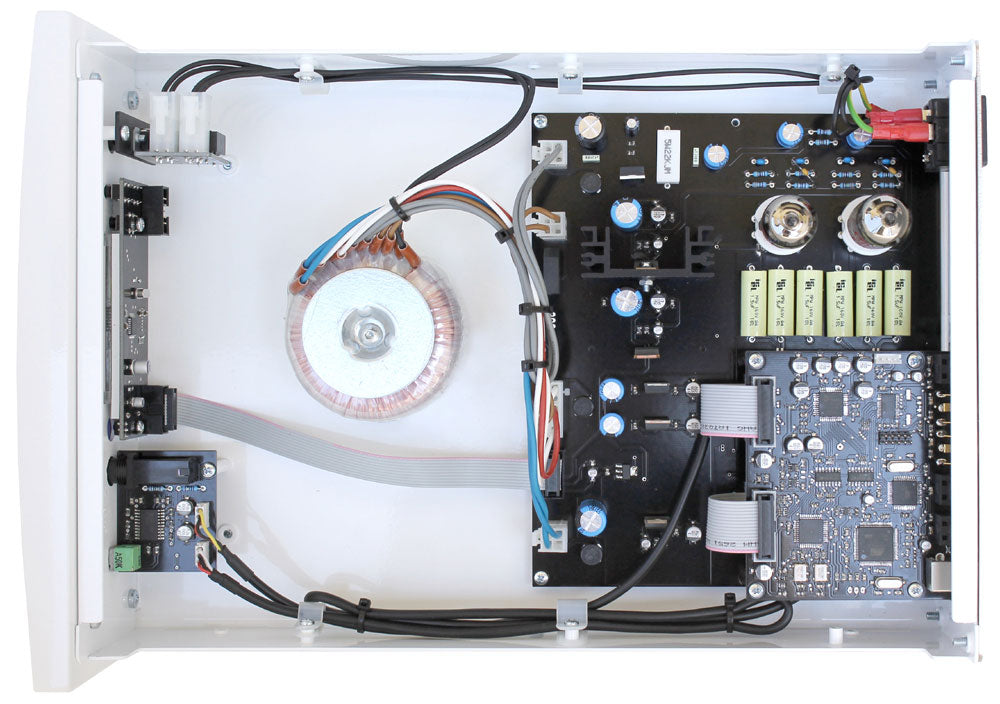

To back this up the design has an over size shielded power transformer to reduce the interference. An array high grade metalized polypropylene capacitors controlling the audio signal circuits. The all-important component of this unit are run by a multi-stage fully regulated power supply.

SPECIFICATIONS

Output stage (each ch): 1 X ECC88
Frequency response: 20Hz to 20KHz - 0dB
D/A converter: Asahi Kasei AK4495S 32bit 768KHz

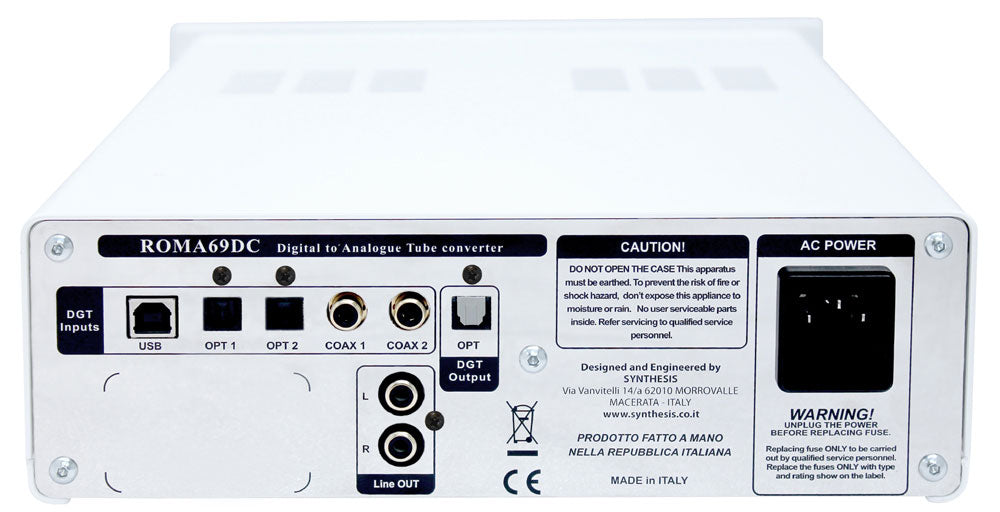

Inputs: 2 Optical Toslink,
2 S/PDIF coaxial
1 USB “B” type Windows /
Mac / iOs /Android compatible
Max Resolution: 24Bit 192KHz (Optical and Coax)
32Bit 384KHz (USB)
DSD up to 5,6 Mhz (USB)
Headphone out: > 16ohm, High Fidelity driver
Signal/Noise ratio: > 95dB (A-Weight)
Distorsion: < 0,3%
Output level: 1,5V RMS @ 0 dBFS (variable)
Power consumption: 20W
Dimensions: (w,d,h) 260x380x95mm
Weight: 5 Kg

SYNTHESIS-ROMA69DC-BLACK

Synthesis Roma 69DC High Resolution Tube DAC

R 47,990.00

High-Resolution Tube DAC

Select colour : Black Lacquer Wood

Black Lacquer Wood
Anodized Aliminium Black
Dark
Anodized Aliminium Silver
Wood

Product variants

Select quantity

E-CREDIT, NOW AVAILABLE
E-Credit finance on orders with a minimum value of R50 000. Learn More.

Description

The Roma 69DC has USB "B" type, DSD 5,6MHz, and optical input. 32Bit of resolution gives you a fantastic sound stage and beautiful sound reproduction.

Using an ECC88/6DJ8 on the output stage as differential amplifier for a perfect matching with the Dac's output Asahi Kasei AK4495S, obtaining a very low output impedance and extremely large bandwidth. Particular attention has been dedicated to the headphone output. Using a high-fidelity driver, we obtained an incredibly natural sound performance, the sound stage is simply perfect!

To back this up the design has an over size shielded power transformer to reduce the interference. An array high grade metalized polypropylene capacitors controlling the audio signal circuits. The all-important component of this unit are run by a multi-stage fully regulated power supply.

SPECIFICATIONS

Output stage (each ch): 1 X ECC88
Frequency response: 20Hz to 20KHz - 0dB
D/A converter: Asahi Kasei AK4495S 32bit 768KHz
Inputs: 2 Optical Toslink,
2 S/PDIF coaxial
1 USB “B” type Windows /
Mac / iOs /Android compatible
Max Resolution: 24Bit 192KHz (Optical and Coax)
32Bit 384KHz (USB)
DSD up to 5,6 Mhz (USB)
Headphone out: > 16ohm, High Fidelity driver
Signal/Noise ratio: > 95dB (A-Weight)
Distorsion: < 0,3%
Output level: 1,5V RMS @ 0 dBFS (variable)
Power consumption: 20W
Dimensions: (w,d,h) 260x380x95mm
Weight: 5 Kg
