Paradigm’s Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.

Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models

Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.

Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.

Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.

Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

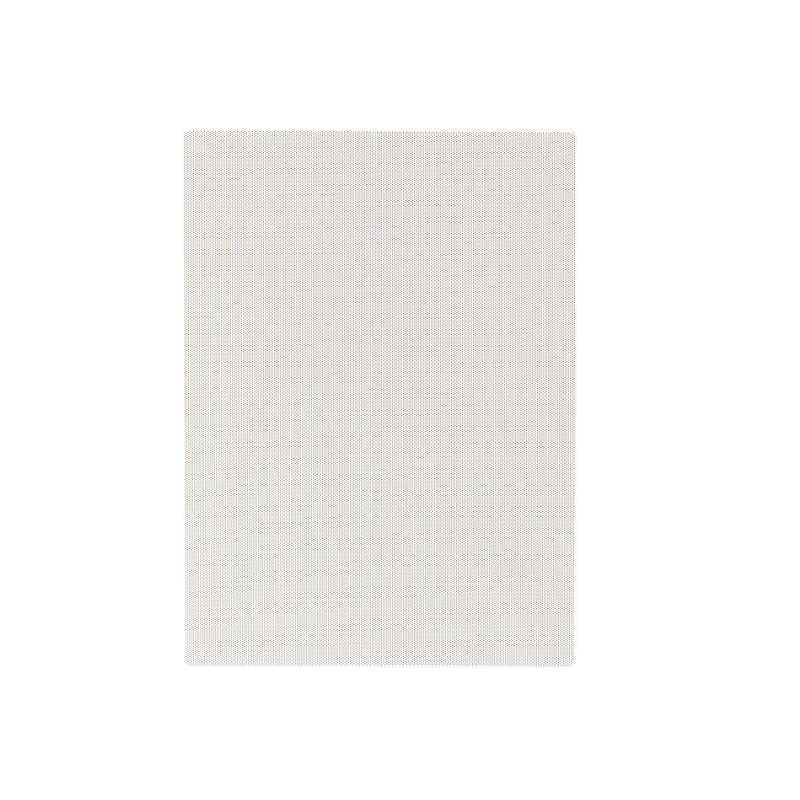

Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!

• Design:

  • 2-driver, 2-way in-wall, ABS chassis & mounting clamps

• Crossover:

  • 2nd-order electro-acoustic at 2.5 kHz

• High Frequency Driver:

  • 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

• Frequency Response On-Axis:

  • ±2 dB from 70 Hz - 20 kHz

• Frequency Response 30° Off-Axis:

  • ±2 dB from 70 Hz - 18 kHz

• Mid/Bass Frequency Driver:

  • 6.5” (16.5cm) Mineral-filled Polypropylene Cone

• Sensitivity Room / Anechoic:

  • 89 dB / 85 dB

• Low Frequency Extension:

  • 55 Hz

• Suitable Amplifier Power Range:

  • 15-90 W

• Maximum Input Power:

  • 60 W

• Impedance:

  • Compatible with 8 ohms

• Finishes:

  • White, paintable grille, black speaker

• Accessories (Not Included):

  • PB-7X10N

• Cut-Out Dimensions:

  • 10-1/8” x 7-1/16” (25.7cm x 18cm)

• Minimum Mounting Depth (Depth Required is the Distance Between 1/2" Drywall, or Similar Material):

  • 2-3/4” (7cm)

• Dimensions HxWxD (Includes Grille):

  • 11-1/8” x 8-1/8” x 3-3/8” (28.3cm x 20.6cm x 8.7cm)

• Weight:

  • 3.5 lbs (1.6 kg)
